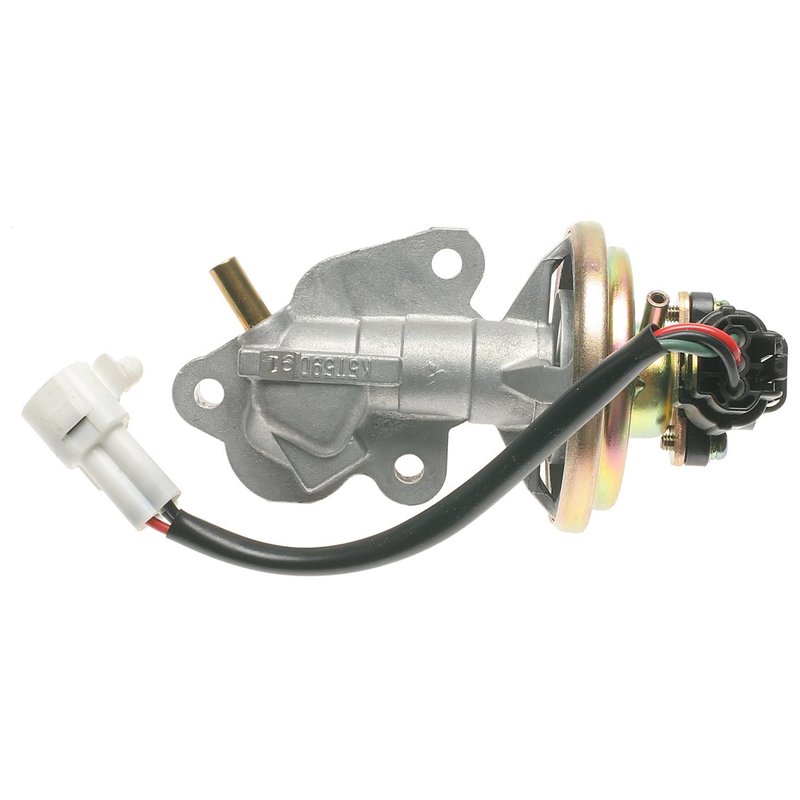

Standard Ignition EGV684 EGR Valve
| Brand | Standard Ignition EGV684 |
|---|---|
| Connector Gender | Female |
| Connector Shape | Triangle |
| Digital/Mechanical | Electronic |
| Gaskets Included | No |
| Number of Bolt Holes | 3 |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Mazda and Ford · 9 vehicles |
Electronic EGR valve. Digital control for precise exhaust gas recirculation.
Triangle connector. Female connector with three blade terminals.
Three-bolt design. Built for a secure, straightforward installation.
Cross-references Standard Ignition EGV684, 2-26107 and 4F1304 for the same application. See all 11.
Standard Ignition EGV684 EGR Valve
The Standard Ignition EGV684 is an electronic exhaust gas recirculation valve for emission control service on select Mazda and Ford applications. It is built for vehicles equipped with California emissions and uses a triangle connector with a female plug, three blade terminals, and two hose connections.
Key Features
- Electronic digital EGR valve design for controlled exhaust gas recirculation
- Female triangle connector with 3 blade terminals
- 2 hose connectors and 3 bolt holes for application-specific mounting
- No gasket or seal included
- No mounting hardware included
- Standard Ignition EGV684 replacement part number
Application Details
Compatible with 1990-1992 Mazda 626, 1990-1992 Mazda MX-6, and 1989-1991 Ford Probe when equipped with California emissions. The Standard Ignition EGV684 is a direct-fit EGR valve choice for drivers servicing emission control systems on these specific Mazda 626, Mazda MX-6, and Ford Probe applications.
This part cross-references 2-26107 and 4F1304 for the same application.
What It Helps Address
- EGR valve sticking or improper valve movement
- Emission system fault codes related to exhaust gas recirculation
- Rough idle caused by incorrect EGR flow
- Driveability issues tied to emissions control performance
- Failed inspection results linked to EGR system malfunction
Installation Notes
Verify California-emissions fitment before ordering. Inspect the mating surfaces, vacuum hoses, electrical connector, and related passages before installation. Because no gasket or seal is included, reuse is not recommended unless the existing seal is serviceable and the application allows it. Confirm connector shape, terminal count, and bolt-hole alignment against the original part before installation on the vehicle.
Quality Assurance
Standard Ignition supplies emission control replacement parts for service applications, and the EGV684 is built to match the listed connector, terminal, and mounting configuration for the specified vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1992 | Mazda | 626 | 2.2L | L4 | N/A | Fits vehicles equipped with California emissions. |
| 1992 | Mazda | MX-6 | — | — | N/A | Fits vehicles equipped with California emissions. |
| 1991 | Ford | Probe | 2.2L | L4 | N/A | Fits vehicles equipped with California emissions. |
| 1991 | Mazda | 626 | 2.2L | L4 | N/A | Fits vehicles equipped with California emissions. |
| 1991 | Mazda | MX-6 | — | — | N/A | Fits vehicles equipped with California emissions. |
| 1990 | Ford | Probe | 2.2L | L4 | N/A | Fits vehicles equipped with California emissions. |
| 1990 | Mazda | 626 | 2.2L | L4 | N/A | Fits vehicles equipped with California emissions. |
| 1990 | Mazda | MX-6 | — | — | N/A | Fits vehicles equipped with California emissions. |
| 1989 | Ford | Probe | 2.2L | L4 | N/A | Fits vehicles equipped with California emissions. |
