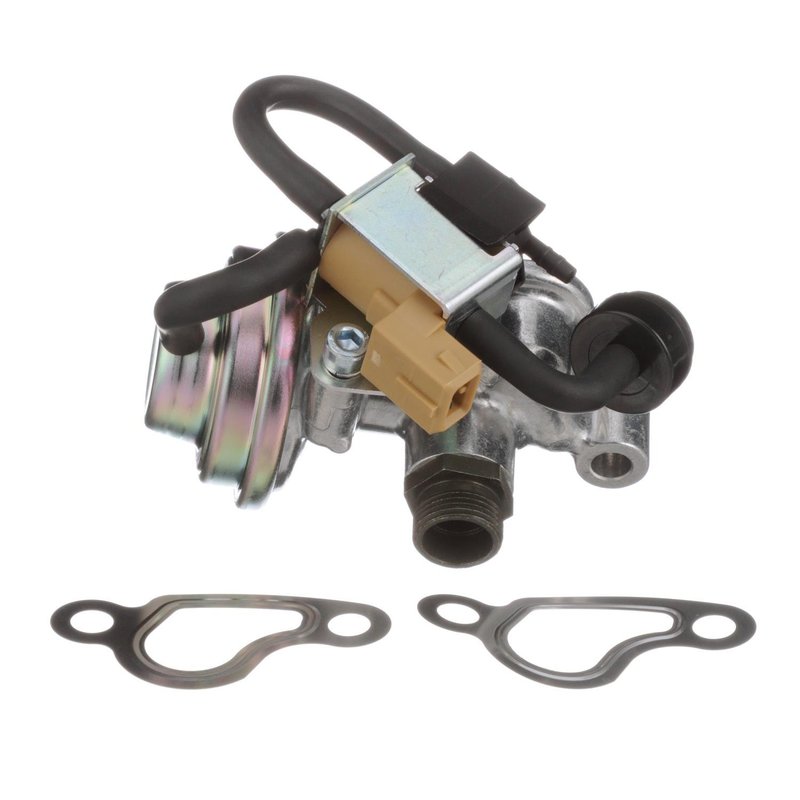

Standard Ignition EGV811 EGR Valve
| Brand | Standard Ignition EGV811 |
|---|---|
| Connector Shape | Rectangular |
| Digital/Mechanical | Electronic |
| Gaskets Included | No |
| Number of Bolt Holes | 2 |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Fits | Mercedes-Benz and Chrysler · 146 vehicles |
Electronic EGR valve. Provides precise exhaust gas recirculation control.
Rectangular connector. Designed for a secure electrical connection.
Two-bolt mounting. Simplifies installation with a straightforward fit.
Cross-references Dayco 91024, Standard Ignition EGV811 and T Series EGV811T for the same application. See all 15.
Electronic EGR Valve for Mercedes-Benz Applications
Standard Ignition EGV811 is an electronic exhaust gas recirculation (EGR) valve built for emissions control service on select Mercedes-Benz and Chrysler Crossfire applications. It uses a rectangular connector, 2-pin male terminals, one hose connector, and one vacuum port for the specified vehicle configurations.
Key Features
- Electronic EGR valve for exhaust gas recirculation system service
- Rectangular connector with 2 male pin terminals
- 1 hose connector and 1 vacuum port
- 2-bolt mounting pattern
- Direct-fit replacement reference for Standard Ignition EGV811
- Cross-references Dayco 91024 for the same application
Detailed Description
Standard Ignition EGV811 is an emissions control component used to regulate exhaust gas recirculation in select Mercedes-Benz models including E320, ML320, S500, and SL500, as well as Chrysler Crossfire applications. By routing measured exhaust flow back into the intake stream, the EGR valve supports proper engine operation within the vehicle’s emissions system. This part number, EGV811, is also referenced by interchange listings for related applications, including Mercedes-Benz EGR service on multiple V6 and V8 platforms.
Fits 1998-2005 Mercedes-Benz E320, N/A. Fits 1998-2003 Mercedes-Benz ML320, N/A. Fits 1999-2006 Mercedes-Benz SL500, N/A. Fits 2004-2008 Chrysler Crossfire, N/A.
Common Issues This Part Can Address
- EGR valve fault codes related to exhaust gas recirculation flow
- Rough idle caused by improper EGR operation
- Emissions test failures tied to EGR system malfunction
- Driveability concerns from a sticking or electronically failed valve
- Check engine light conditions associated with EGR performance
Installation Notes and Tips
Verify connector shape, terminal count, hose connection layout, and bolt-hole pattern before installation. This valve does not include mounting hardware or a gasket/seal, so reuse or replace those items as required by the vehicle service procedure. Confirm the vehicle’s exact year, make, and model against the fitment list before ordering.
Quality Assurance
Standard Ignition supplies replacement emission control components for service applications, and EGV811 is listed with multiple OE-style interchange references for the same fitment group. Use the confirmed vehicle coverage and connector specifications to match the part to the application.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Mercedes-Benz | SLK55 AMG | 5.5L | V8 | — | N/A | — |
| 2010 | Mercedes-Benz | SLK55 AMG | 5.5L | V8 | — | N/A | — |
| 2009 | Mercedes-Benz | SLK55 AMG | 5.5L | V8 | — | N/A | — |
| 2008 | Chrysler | Crossfire | — | — | — | N/A | — |
| 2008 | Mercedes-Benz | G500 | 5.0L | V8 | — | N/A | — |
| 2008 | Mercedes-Benz | SLK55 AMG | 5.5L | V8 | — | N/A | — |
| 2007 | Chrysler | Crossfire | 3.2L | V6 | — | N/A | — |
| 2007 | Mercedes-Benz | G500 | 5.0L | V8 | — | N/A | — |
| 2007 | Mercedes-Benz | ML500 | 5.0L | V8 | — | N/A | — |
| 2007 | Mercedes-Benz | R500 | 5.0L | V8 | — | N/A | — |
| 2007 | Mercedes-Benz | SLK55 AMG | 5.5L | V8 | — | N/A | — |
| 2006 | Chrysler | Crossfire | 3.2L | V6 | — | N/A | — |
| 2006 | Mercedes-Benz | C55 AMG | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | CL500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | CLK500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | CLK55 AMG | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | CLS500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | E500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | G500 | 5.0L | V8 | — | N/A | — |
| 2006 | Mercedes-Benz | ML500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | R350 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | R500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | S350 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | S430 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | S500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 2006 | Mercedes-Benz | SLK55 AMG | — | — | — | N/A | — |
| 2005 | Chrysler | Crossfire | 3.2L | V6 | — | N/A | — |
| 2005 | Mercedes-Benz | C240 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | C320 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | C55 AMG | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | CL500 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | CLK500 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | CLK55 AMG | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | E320 | — | — | GAS | N/A | — |
| 2005 | Mercedes-Benz | E500 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | G500 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | ML350 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | ML500 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | S430 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | S500 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 2005 | Mercedes-Benz | SLK55 AMG | — | — | — | N/A | — |
| 2004 | Chrysler | Crossfire | 3.2L | V6 | — | N/A | — |
| 2004 | Mercedes-Benz | C240 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | C320 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | CL500 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | CLK500 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | CLK55 AMG | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | E320 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | E500 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | G500 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | ML350 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | ML500 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | S430 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | S500 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 2004 | Mercedes-Benz | SLK320 | 3.2L | V6 | — | N/A | — |
| 2003 | Mercedes-Benz | C240 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | C320 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | CL500 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | CL55 AMG | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | CLK430 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | CLK500 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | CLK55 AMG | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | E320 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | E500 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | G500 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | ML320 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | ML350 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | ML500 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | ML55 AMG | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | S430 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | S500 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 2003 | Mercedes-Benz | SLK320 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | C240 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | C320 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | CL500 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | CL55 AMG | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | CLK430 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | CLK55 AMG | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | E320 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | E430 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | E55 AMG | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | G500 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | ML320 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | ML500 | 5.0L | V8 | — | N/A | — |
| 2002 | Mercedes-Benz | ML55 AMG | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | S430 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | S500 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | S55 AMG | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 2002 | Mercedes-Benz | SLK320 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | C240 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | C320 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | CL500 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | CL55 AMG | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | CLK430 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | CLK55 AMG | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | E320 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | E430 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | E55 AMG | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | ML320 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | ML430 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | ML55 AMG | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | S430 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | S500 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | S55 AMG | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 2001 | Mercedes-Benz | SLK320 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | C280 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | C43 AMG | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | CL500 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | CLK430 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | E320 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | E430 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | E55 AMG | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | ML320 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | ML430 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | ML55 AMG | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | S430 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | S500 | — | — | — | N/A | — |
| 2000 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | C280 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | C43 AMG | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | CLK430 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | E320 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | E430 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | E55 AMG | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | ML320 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | ML430 | — | — | — | N/A | — |
| 1999 | Mercedes-Benz | SL500 | — | — | — | N/A | — |
| 1998 | Mercedes-Benz | C280 | — | — | — | N/A | — |
| 1998 | Mercedes-Benz | C43 AMG | — | — | — | N/A | — |
| 1998 | Mercedes-Benz | CLK320 | — | — | — | N/A | — |
| 1998 | Mercedes-Benz | E320 | — | — | — | N/A | — |
| 1998 | Mercedes-Benz | E430 | — | — | — | N/A | — |
| 1998 | Mercedes-Benz | ML320 | — | — | — | N/A | — |
