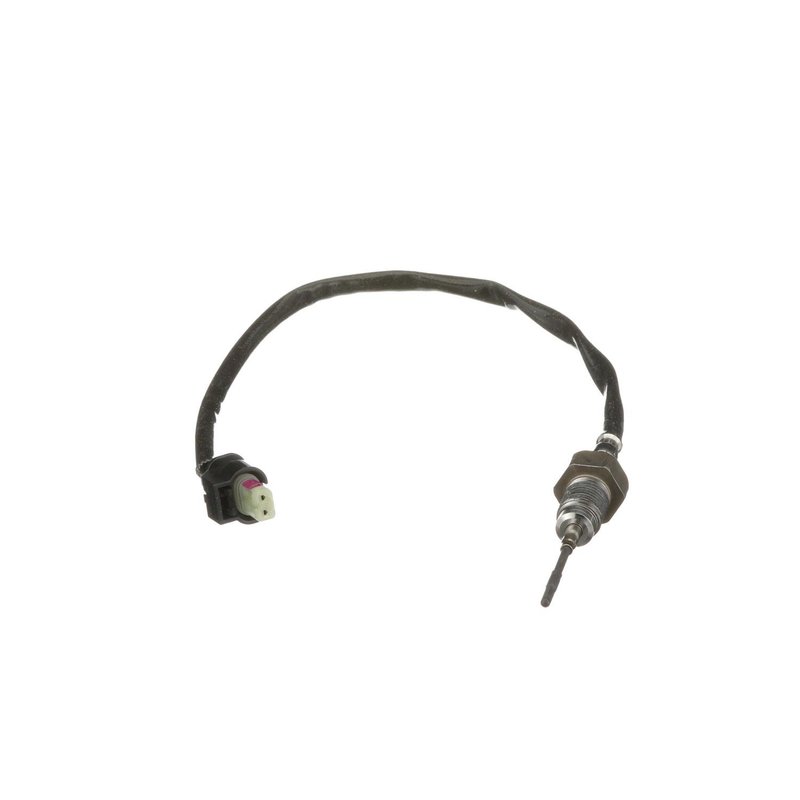

Standard Ignition ETS224 Exhaust Gas Temperature (EGT) Sensor

Exhaust Gas Temperature Sensor for Ram Diesel Applications

Standard Ignition ETS224 is a screw-in exhaust gas temperature (EGT) sensor built for monitored exhaust systems on select Ram 2500 and Ram 3500 diesel trucks. It uses a male rectangular connector with a plug/socket interface and a two-pin female terminal layout for direct replacement service.

Key Features

• Exhaust Gas Temperature (EGT) sensor for emission control systems
• Screw-in attachment method for threaded exhaust mounting points
• Male rectangular connector with plug/socket style connection
• Two-wire, two-terminal design with female pin socket terminals
• Direct-fit application coverage for Ram 2500 and Ram 3500 diesel models
• Standard Ignition part number ETS224

Detailed Description

Standard Ignition ETS224 is an emission control sensor used to measure exhaust gas temperature in diesel exhaust aftertreatment systems. This sensor is listed for 2019 Ram 2500 and 2019 Ram 3500 models located in the catalytic converter, as well as 2020-2023 Ram 2500 and 2020-2023 Ram 3500 models located before the particulate filter. If you are replacing a failed EGT sensor on a Ram 2500 or Ram 3500, ETS224 provides the specified connector style, terminal layout, and screw-in mounting format for the application.

This part cross-references 68306262AA and EGR565 for the same application. The ETS224 part number is also useful when searching for a replacement exhaust gas temperature sensor for Ram 2500 and Ram 3500 diesel exhaust systems.

Common Issues This Part May Address

• Check engine light related to exhaust temperature sensor faults
• Incorrect exhaust temperature readings in the aftertreatment system
• Sensor circuit or connector-related diagnostic trouble codes
• Failed emissions monitoring on Ram diesel exhaust systems
• Replacement needs for a damaged or corroded screw-in EGT sensor

Installation Notes and Tips

Verify the sensor location before ordering: 2019 Ram 2500 and 2019 Ram 3500 applications are listed in the catalytic converter, while 2020-2023 Ram 2500 and Ram 3500 applications are listed before the particulate filter. Confirm connector shape, terminal style, and mounting thread match the original sensor before installation. Standard Ignition ETS224 is a direct replacement-style exhaust gas temperature sensor for the listed Ram diesel applications.

Quality Assurance

Standard Ignition is a recognized aftermarket source for engine management and emission control components. ETS224 is built to match the specified sensor type and connection details for the listed Ram 2500 and Ram 3500 applications.
