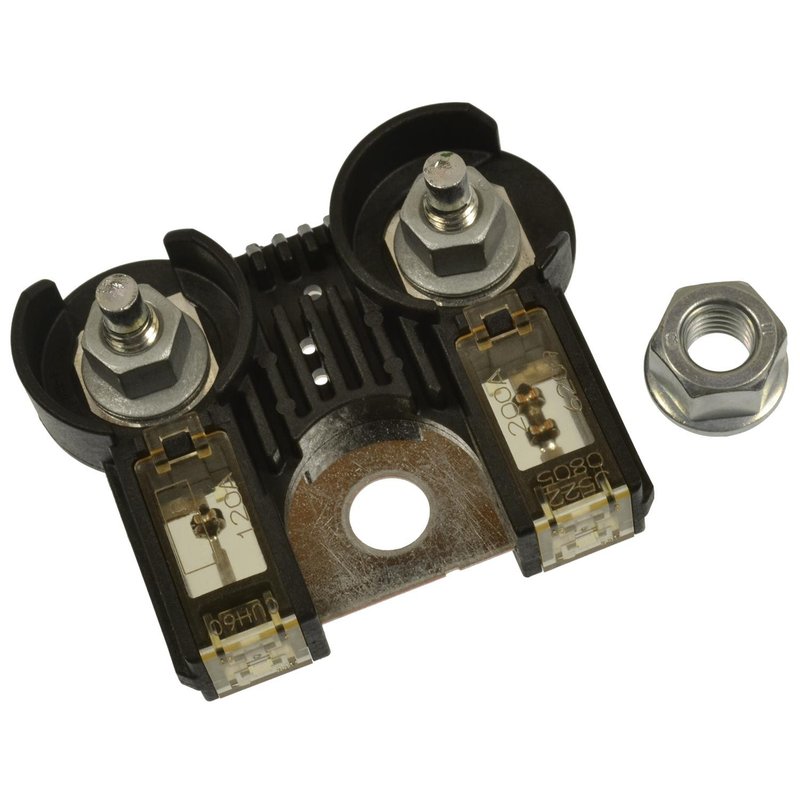

Standard Ignition FH53 Circuit Breaker

Reliable Circuit Breaker for Ford, Lincoln, and Mercury Vehicles

The Standard Ignition FH53 circuit breaker is designed to provide dependable electrical protection for select Ford, Lincoln, and Mercury models. Engineered to meet OEM specifications, this 12-volt circuit breaker ensures consistent performance in critical vehicle systems.

• Connector Gender: Female
• Connector Quantity: 2
• Connector Shapes: Rectangular and Round
• Terminal Gender: Male
• Terminal Quantity: 2
• Terminal Type: Screw
• Voltage Rating: 12 Volts
• Includes fi seals, o-rings, and gaskets for plenum, air by-pass valve, IAC, and throttle body
• Number of Fuses: 2

Technical Details and Compatibility

The FH53 circuit breaker from Standard Ignition is specifically designed for use in electrical, lighting, and body systems, particularly in flasher units, fuses, and circuit breakers. Its dual connector design features both rectangular and round shapes, accommodating a variety of wiring configurations. The female connectors and male screw terminals provide secure and reliable connections, essential for maintaining circuit integrity in vehicles operating at 12 volts.

This circuit breaker is compatible with Ford Edge, Fusion, Milan, Lincoln MKX, MKZ, and Mercury SSV Plug-In Hybrid models. The included fi seals, o-rings, and gaskets support proper sealing for components such as the plenum, air by-pass valve, idle air control (IAC), and throttle body, ensuring optimal engine performance and electrical system protection.

Common Applications and Problem Resolution

• Protects electrical circuits from overloads and short circuits
• Prevents damage to flasher units and lighting systems
• Maintains proper function of air by-pass valve and idle air control components
• Helps avoid electrical failures in Ford Edge, Fusion, and Lincoln MKX models
• Supports reliable operation of Mercury SSV Plug-In Hybrid electrical systems

Installation Notes and Tips

When installing the Standard Ignition FH53 circuit breaker, ensure the vehicle’s battery is disconnected to prevent electrical shock or damage. Verify connector orientation by matching the female connectors to the corresponding male terminals, noting the rectangular and round shapes for proper alignment. Use the screw terminals to secure wiring firmly, avoiding loose connections that could cause intermittent faults. Inspect included seals and gaskets for damage before installation to maintain proper sealing and prevent leaks.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The FH53 circuit breaker undergoes rigorous testing to ensure consistent electrical protection. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship, supporting long-term vehicle reliability.
