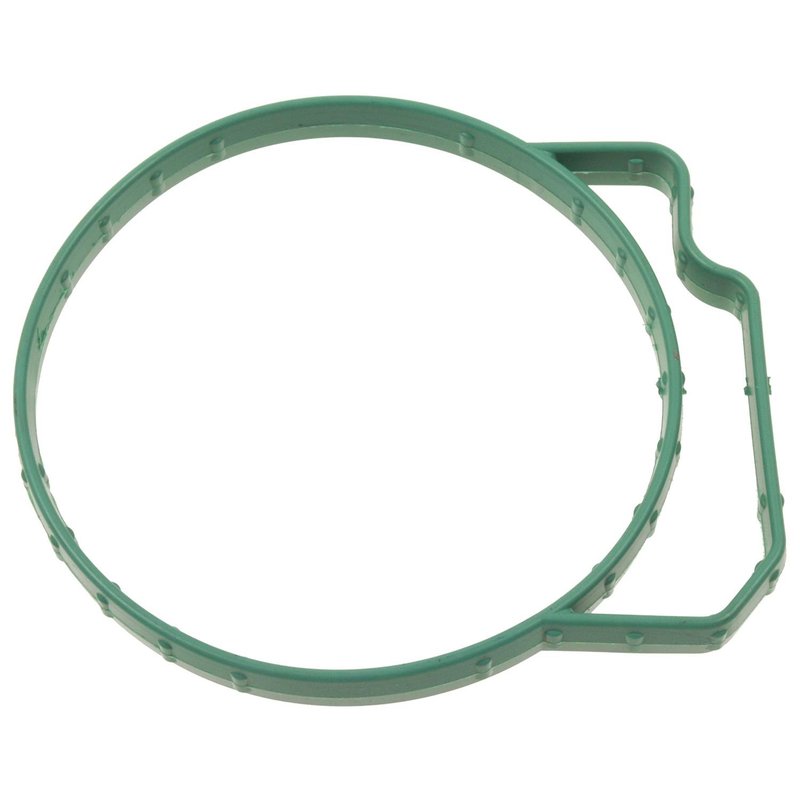

Standard Ignition FJG135 Fuel Injection Throttle Body Mounting Gasket

Fuel Injection Throttle Body Mounting Gasket

Standard Ignition FJG135 is a direct-fit throttle body injection flange gasket for TBI systems. It is built with rubber construction and a green finish to support a precise seal between the throttle body and manifold on select Chevrolet, Pontiac, and Saturn applications.

Fits 2006-2007 Chevrolet Cobalt, N/A; Fits 2006-2007 Chevrolet HHR, N/A; Fits 2007 Pontiac G5, N/A; Fits 2006-2007 Pontiac Solstice, N/A; Fits 2006-2007 Saturn Ion, N/A; Fits 2007 Saturn Sky, N/A; Fits 2006 Pontiac Pursuit, N/A.

Key Features

• Direct-fit OE replacement for throttle body injection flange service
• Rubber material for sealing performance in demanding engine conditions
• Inside diameter: 2.78 in. (70.8 mm)
• Thickness: 0.32 in. (8.33 mm)
• System type: TBI
• Green color/finish for easy identification
• Gasket included; no EGR gasket, pintle cap, or spacer to manifold included

Detailed Description

Standard Ignition FJG135 is a fuel injection throttle body mounting gasket made for throttle body injection systems that require a flange-style seal. The OE-style fit supports straightforward replacement on vehicles such as the Chevrolet Cobalt, Chevrolet HHR, Pontiac G5, Pontiac Solstice, Saturn Ion, Saturn Sky, and Pontiac Pursuit. Its rubber construction is selected to maintain sealing integrity under engine heat and operating stress.

This part cross-references Fel-Pro 61624 for the same application.

Common Repair Uses

• Restoring a leaking throttle body-to-manifold seal
• Addressing idle instability caused by intake air leakage at the throttle body
• Replacing a damaged or compressed TBI flange gasket during service
• Correcting vacuum leak symptoms around the throttle body mounting surface
• Servicing a worn seal on select GM compact and performance applications

Installation Notes and Tips

Clean both mating surfaces before installation and inspect the throttle body flange for warpage, carbon buildup, or damage. Confirm the gasket matches the throttle body opening and mounting style before assembly. Use the listed vehicle fitment to verify application-specific compatibility for 2006-2007 Chevrolet Cobalt and HHR, 2007 Pontiac G5, 2006-2007 Pontiac Solstice, 2006-2007 Saturn Ion, 2007 Saturn Sky, and 2006 Pontiac Pursuit.

Quality Assurance

Standard Ignition states that this gasket undergoes extensive testing and is manufactured under complete quality control throughout the production process. The part is built as a direct replacement for consistent fit and sealing performance.
