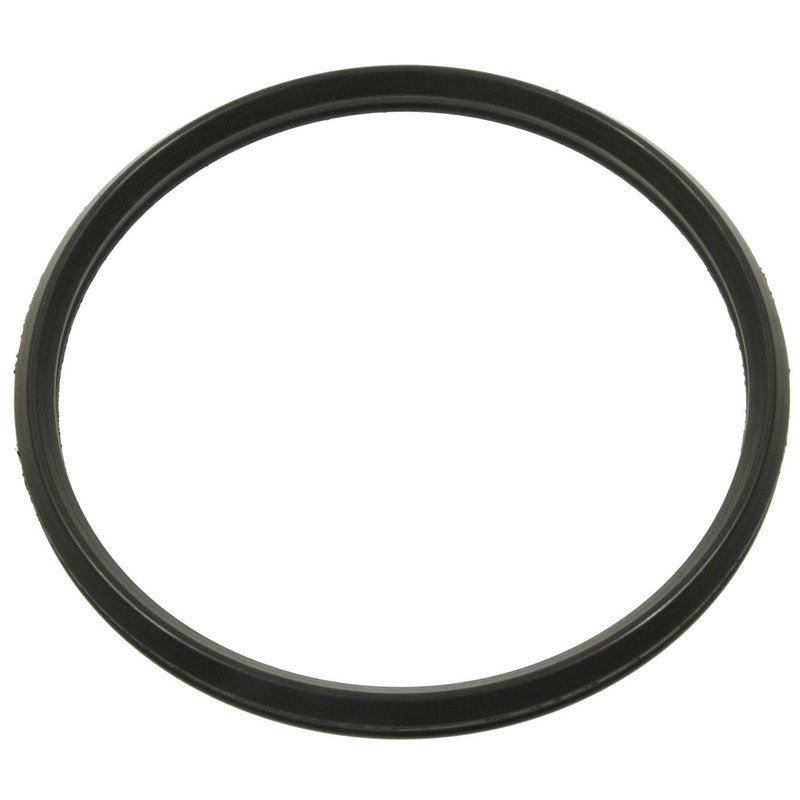

Standard Ignition FJG147 Fuel Injection Throttle Body Mounting Gasket

Fuel Injection Throttle Body Mounting Gasket

Standard Ignition FJG147 is a direct-fit throttle body injection flange gasket for TBI systems. It is built with rubber construction and OE-style dimensions to support a secure seal between the throttle body and manifold on select Buick, Chevrolet, Pontiac, and Saturn applications.

Use this Standard Ignition FJG147 when servicing a leaking or worn throttle body mounting point on vehicles such as the Chevrolet Malibu, Chevrolet Equinox, and Pontiac G6. The black gasket measures 2.79 in. inside diameter, 3.09 in. outside diameter, and 0.3 in. thickness for a precise replacement fit.

Key Features

• Direct-fit OE replacement throttle body injection flange gasket
• Rubber material for sealing performance in demanding engine conditions
• Black finish
• Inside diameter: 2.79 in. (71.11 mm)
• Outside diameter: 3.09 in. (78.73 mm)
• Thickness: 0.3 in. (7.63 mm)
• System type: TBI
• Gaskets included: Yes

Detailed Description

Standard Ignition FJG147 is engineered as a fuel injection throttle body mounting gasket for throttle body injection systems. Its OE replacement design supports straightforward installation and consistent sealing at the throttle body flange. The rubber construction is selected to handle engine heat and operating stress while maintaining the seal needed for proper intake tract performance. This part cross-references Continental 61456 for the same application.

Compatible With 2006-2007 Buick Rendezvous, N/A; 2005-2006 Chevrolet Equinox, N/A; 2006 Pontiac Torrent, N/A; 2005 Buick Terraza, N/A; 2004-2005 Chevrolet Malibu, N/A; 2005 Chevrolet Uplander, N/A; 2005 Pontiac G6, N/A; 2005 Pontiac Montana, N/A; and 2005 Saturn Relay, N/A. Standard Ignition FJG147 is a practical replacement for service work on these TBI-equipped vehicles.

What It Helps Address

• Throttle body flange air leaks
• Vacuum leaks at the intake connection
• Rough idle caused by a worn sealing surface
• Driveability issues related to a deteriorated gasket
• Service replacement after throttle body removal

Installation Notes

Clean both mating surfaces before installation and inspect the throttle body and manifold for damage, warping, or residue that could affect sealing. Verify the gasket matches the TBI opening and flange profile before assembly. Standard Ignition FJG147 is listed for the vehicles above, including Chevrolet Malibu, Chevrolet Equinox, and Pontiac G6 applications.

Quality Assurance

Standard Ignition states that this gasket is made from high-quality materials, tested for reliability, and produced under complete quality control throughout manufacturing. The part number FJG147 is also referenced in aftermarket interchange listings for related service applications.
