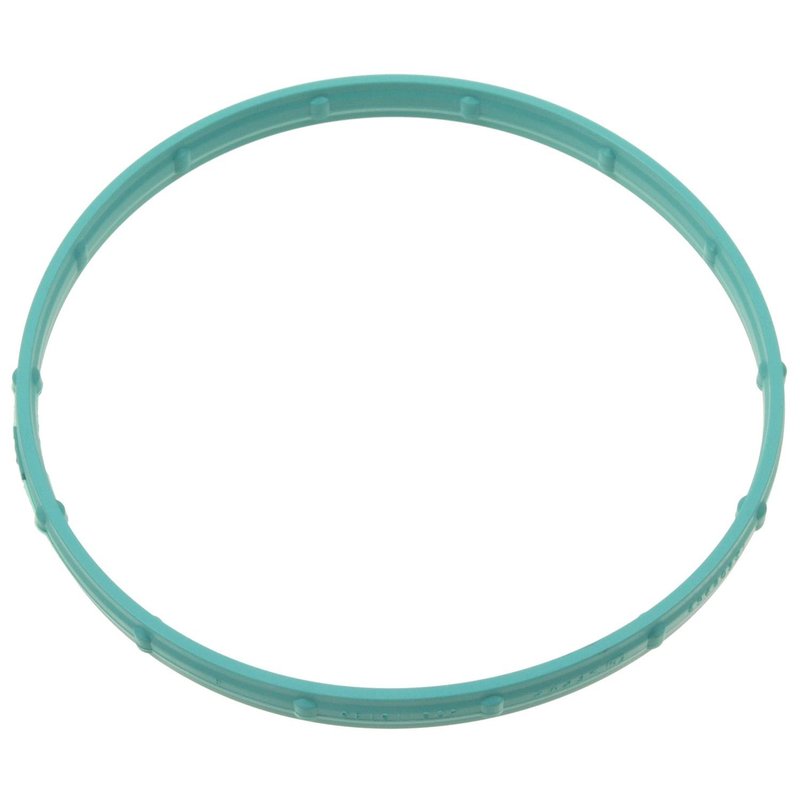

Standard Ignition FJG148 Fuel Injection Throttle Body Mounting Gasket

Fuel Injection Throttle Body Mounting Gasket

Standard Ignition FJG148 is a direct-fit fuel injection throttle body mounting gasket for TBI applications. It is built with rubber construction and OE-style dimensions to support a proper seal between the throttle body and manifold on select Chevrolet, Pontiac, Saturn, and Buick vehicles.

Fits 2006-2011 Chevrolet Impala, N/A; Fits 2006-2010 Chevrolet Malibu, N/A; Fits 2006-2010 Pontiac G6, N/A; Fits 2008-2010 Saturn Vue, N/A.

Key Features

• Direct-fit OE replacement for throttle body injection flange service
• Rubber material for sealing performance in demanding engine conditions
• Green color/finish
• Inside diameter: 3.22 in. (81.8 mm)
• Outside diameter: 3.42 in. (87.11 mm)
• Thickness: 0.24 in. (6.34 mm)
• System type: TBI
• Gaskets included; EGR gasket, pintle cap, and spacer-to-manifold components not included

Detailed Description

Standard Ignition FJG148 is a fuel injection throttle body mounting gasket engineered as an OE-style replacement for throttle body injection systems. Its molded rubber construction and specified dimensions help maintain a consistent seal at the throttle body flange, supporting service work on vehicles such as the Chevrolet Impala, Chevrolet Malibu, Pontiac G6, and Saturn Vue. This part cross-references MAHLE G32016 for the same application.

What It Helps Address

• Air leaks at the throttle body mounting surface
• Vacuum-related idle or drivability concerns tied to a worn flange gasket
• Fuel injection service needs involving the throttle body seal
• Replacement of a damaged or compressed TBI mounting gasket

Installation Notes and Tips

Clean both mating surfaces before installation and verify the throttle body and manifold faces are free of old gasket material, carbon buildup, or debris. Confirm the gasket orientation and match the part to the vehicle’s TBI flange dimensions before reassembly. For best results, inspect the throttle body mounting surface for warpage or damage during service.

Quality Assurance

Standard Ignition states that this gasket undergoes extensive testing and is manufactured under controlled quality processes. The part is built from high-quality materials intended to withstand engine bay conditions and support reliable service life.
