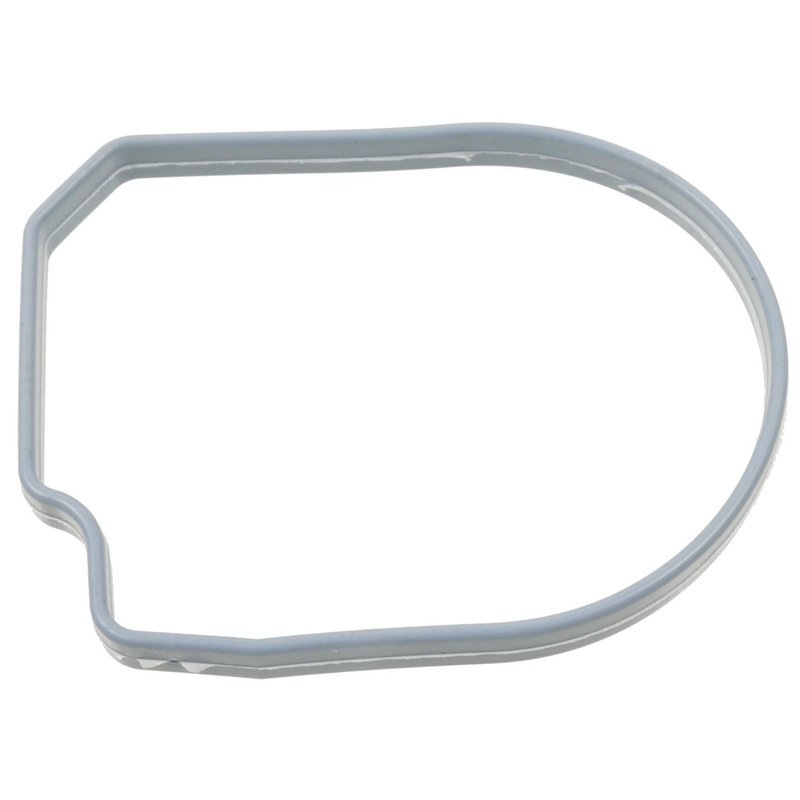

Standard Ignition FJG149 Fuel Injection Throttle Body Mounting Gasket

Fuel Injection Throttle Body Mounting Gasket

Standard Ignition FJG149 is a direct-fit fuel injection throttle body mounting gasket for TBI applications. It is built with rubber construction and a gray finish to support a secure seal between the throttle body and manifold on select GM vehicles.

Fits 2002-2008 Chevrolet Cobalt, HHR, Malibu, Cavalier, and Classic; Pontiac G5, G4, Pursuit, Grand Am, and Sunfire; Saturn Ion, Vue, and L300; and Oldsmobile Alero applications with throttle body injection flange mounting.

• Direct-fit OE replacement for throttle body injection flange service
• Rubber material for sealing performance in demanding engine conditions
• Gray finish
• Designed for TBI systems
• Fits select Chevrolet, Pontiac, Saturn, and Oldsmobile models

Detailed Product Overview

Standard Ignition FJG149 is a throttle body injection flange gasket made for vehicles that use a TBI system. The 0.29-inch (7.5 mm) thickness helps maintain the proper seal at the throttle body mounting surface, supporting stable air and fuel delivery at the intake connection. This part cross-references Fel-Pro 61309 for the same application.

Vehicle coverage includes 2005-2008 Chevrolet Cobalt, 2006-2008 Chevrolet HHR, 2004-2008 Chevrolet Malibu, 2007-2008 Pontiac G5, 2003-2007 Saturn Ion, and other listed GM applications. Standard Ignition FJG149 is also listed for 2002-2007 Saturn Vue and 2004 Saturn L300, making it a practical replacement choice when servicing the throttle body flange on these models.

Common Service Issues

• Air leaks at the throttle body mounting surface
• Rough idle caused by a worn or flattened gasket
• Fuel or vacuum sealing concerns at the TBI flange
• Driveability issues after throttle body service
• Replacement of a damaged or heat-aged intake seal

Installation Notes

Clean both mating surfaces before installation and inspect the throttle body flange for warpage, carbon buildup, or damage. Confirm TBI system application and match the gasket to the intake and throttle body design before assembly. This part does not include EGR gaskets, a pintle cap, or a spacer to manifold.

Quality Assurance

Standard Ignition states that this gasket uses high-quality materials, undergoes extensive testing, and is manufactured under complete quality control throughout the production process.
