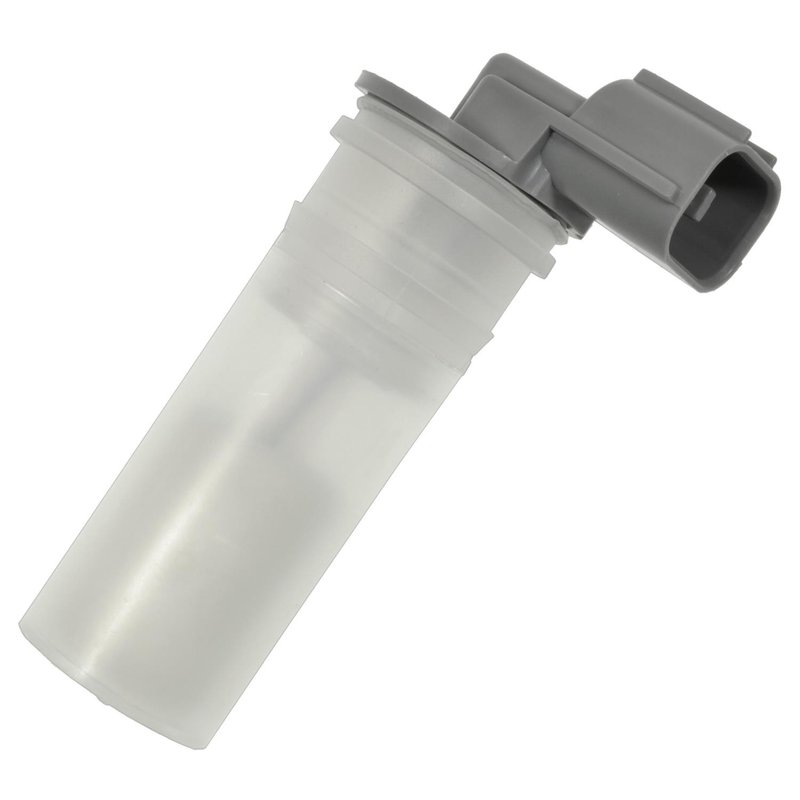

Standard Ignition FLS-153 Washer Fluid Level Sensor

Washer Fluid Level Sensor for Acura and Honda

Standard Ignition FLS-153 is a washer fluid level sensor built for vehicles that use an electrical warning circuit to monitor washer reservoir fluid. It features a female plug-in connector, two male blade terminals, and a sensor-only design for direct replacement service.

Key Features

• Washer fluid level sensor for the windshield washer reservoir system
• Female connector with plug-in style connection
• Two male blade terminals for electrical interface
• Sensor-only contents for replacement of the failed level sensor
• Direct-fit application coverage for select Acura MDX, Acura ZDX, and Honda Ridgeline models

Detailed Description

Standard Ignition FLS-153 is a washer fluid level sensor used to monitor washer reservoir fluid level and trigger the vehicle’s low-fluid warning system when the reservoir drops below the set threshold. The connector layout includes one female plug-in connector and two male blade terminals, which supports straightforward electrical replacement in the original sensor location. This part number, FLS-153, is listed for 2007-2014 Acura MDX, 2010-2013 Acura ZDX, and 2007-2014 Honda Ridgeline applications. It also cross-references 76835SHJC01 for the same application.

Vehicle Fitment

• Fits 2007-2014 Acura MDX, N/A
• Fits 2010-2013 Acura ZDX, N/A
• Fits 2007-2014 Honda Ridgeline, N/A

Common Problems This Sensor Can Address

• Washer fluid warning light stays on after the reservoir is filled
• Low washer fluid message appears incorrectly
• Broken or corroded reservoir sensor connection
• Faulty fluid level reading from the washer tank
• Intermittent washer fluid level warning behavior

Installation Notes and Tips

Confirm the connector style and terminal layout before installation. Inspect the washer reservoir opening, wiring connector, and sealing surfaces for damage or contamination before transferring the new sensor into place. Verify proper operation after installation by filling and lowering the washer fluid level to confirm the warning system responds correctly.

Quality Assurance

Standard Ignition replacement electrical components are built for service applications that require accurate fit and dependable signal transfer. FLS-153 is cataloged for direct replacement use on select Acura and Honda vehicles, including Acura MDX, Acura ZDX, and Honda Ridgeline models.
