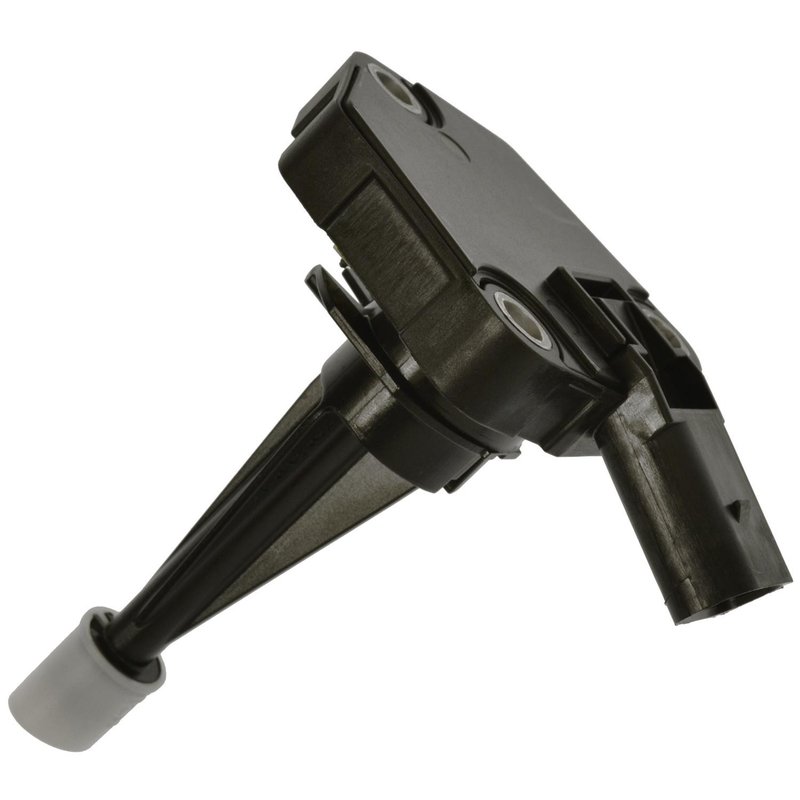

Standard Ignition FLS311 Engine Oil Level Sensor

Engine Oil Level Sensor for Audi and Volkswagen

Standard Ignition FLS311 is an engine oil level sensor built for direct replacement in select Audi and Volkswagen applications. It uses a female oval connector with a 3-blade male terminal layout for a straightforward electrical connection in the oil level monitoring circuit.

Compatible With 2010-2017 Audi A5 Quattro, 2012-2017 Audi A6 Quattro, 2011-2017 Audi Q5, and other listed Audi and Volkswagen models, this sensor supports accurate oil level input to the vehicle’s monitoring system. The Standard Ignition FLS311 part number is also referenced in OE-style replacement searches for Audi A4 Quattro, Audi Q7, and Volkswagen Touareg applications.

Key Features

• Engine oil level sensor for monitored oil level reporting
• Female connector with oval shape for the listed applications
• 3-terminal blade connection for electrical interface
• Direct-fit replacement for select Audi and Volkswagen vehicles
• Standard Ignition FLS311 for catalog and cross-reference lookup

Detailed Description

Standard Ignition FLS311 is an engine oil level sensor designed for vehicles that rely on electronic oil level feedback rather than a traditional dipstick-only check. The connector design includes one female plug/socket connection with three male blade terminals, helping match the factory-style sensor interface used on the supported applications. Search terms such as Audi A5 Quattro oil level sensor, Audi Q5 engine oil level sensor, and Volkswagen Touareg oil level sensor align with this part’s fitment coverage. Cross-reference part numbers include Hella 013680041 and VEMO V10-72-1265 for the same application.

What It Helps Address

• Oil level warning messages on the instrument cluster
• Inaccurate oil level readings from a failed sensor
• Intermittent oil level monitoring faults
• Electrical connection issues at the sensor connector
• Service concerns on Audi and Volkswagen oil level monitoring systems

Installation Notes and Tips

• Verify connector shape, terminal count, and sensor location before installation.
• Inspect the harness connector for corrosion, bent terminals, or damaged locking tabs.
• Confirm the vehicle application by year, make, and model before ordering.
• Clear any stored fault codes after installation and recheck system operation.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and engine management components. FLS311 is cataloged for select Audi and Volkswagen fitments, including 2010-2017 Audi A5 Quattro, 2012-2017 Audi A6 Quattro, 2011-2017 Audi Q5, 2012-2016 Audi A4 Quattro, 2014-2016 Audi A7 Quattro, 2014-2016 Audi A8 Quattro, 2011-2012 Audi A8 Quattro, 2013-2016 Audi allroad, 2013-2016 Volkswagen Jetta, 2013-2016 Volkswagen Touareg, 2013-2015 Audi Q7, and 2013-2015 Audi RS5.
