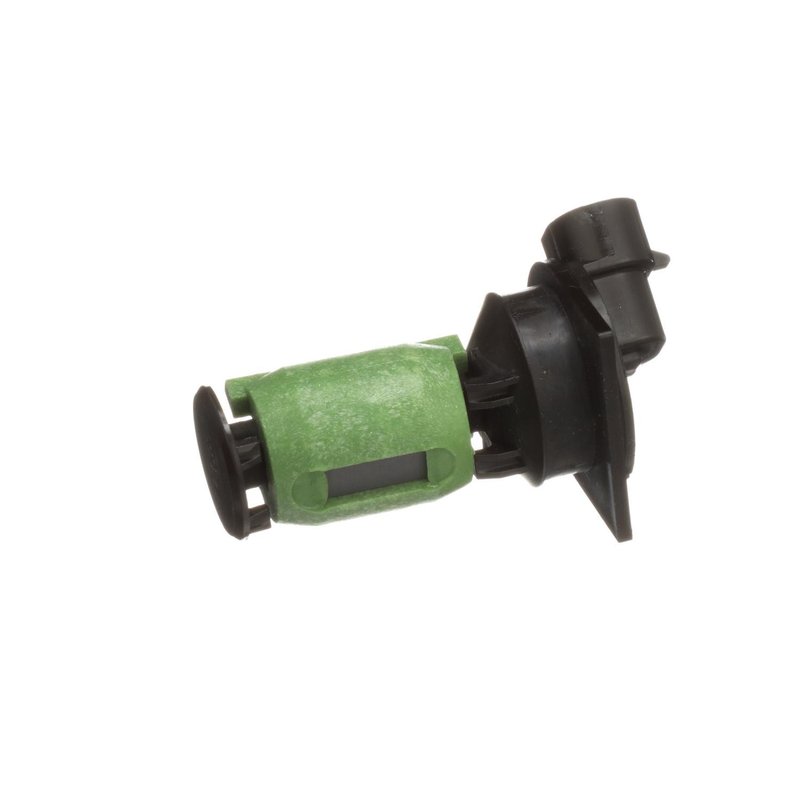

Standard Ignition FLS317 Washer Fluid Level Sensor
| Brand | Standard Ignition FLS317 |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Connector Type | Plug; socket |
| Contents | Sensor |
| Mounting Bracket(s) Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Fits | Buick, Cadillac, and Chevrolet · 20 vehicles |
Direct replacement. Matches the original washer fluid level sensor form for straightforward service.
Female oval connector with plug/socket design for a secure electrical connection.
Blade terminals and a single-sensor layout keep the installation simple.
Cross-references 20911539, FLS891 and WF3487 for the same application. See all 3.
Washer Fluid Level Sensor for GM Applications
Standard Ignition FLS317 is a washer fluid level sensor built for vehicles that use an oval, female connector with a plug/socket interface and blade terminals. It monitors washer reservoir fluid level and supports accurate low-fluid warning operation on select Chevrolet, Cadillac, and Buick models.
- Washer fluid level sensor replacement for GM vehicles
- Female connector with 1 oval connector and plug/socket type
- 2 blade terminals with male terminal design
- Sensor only; mounting bracket(s) not included
- Direct-fit service part for select Cadillac ATS, CTS, CT6, Chevrolet Camaro, Chevrolet Traverse, and Buick Enclave applications
Detailed Product Information
Standard Ignition FLS317 is a washer fluid level sensor designed to restore reservoir level monitoring on supported GM platforms. It is listed for 2013-2019 Cadillac ATS, 2015-2019 Cadillac CTS, 2019 Cadillac CT6, 2018-2020 Chevrolet Camaro, 2017 Buick Enclave, and 2015-2017 Chevrolet Traverse. This part number, FLS317, is also referenced for service replacement use on the same application family.
This washer fluid level sensor cross-references Standard Ignition FLS891 and WF3487 for the same application. Use FLS317 when replacing a failed sensor that triggers inaccurate washer fluid warnings or no warning at all.
What This Sensor Helps Address
- Washer fluid warning light staying on after the reservoir is filled
- No low-fluid warning when washer fluid is depleted
- Intermittent washer fluid level signal from a worn sensor
- Fault codes or message alerts related to washer reservoir level monitoring
- Service replacement for damaged sensor connectors or internal sensor failure
Installation Notes and Tips
Verify connector shape, terminal style, and reservoir sensor location before installation. FLS317 uses a female connector, one oval connector cavity, and two blade terminals, so matching the original electrical interface is important for proper operation. Confirm vehicle application by year, make, and model before ordering, especially on Cadillac ATS, Cadillac CTS, Chevrolet Camaro, and Chevrolet Traverse platforms.
Quality Assurance
Standard Ignition supplies replacement electrical and sensor components for service repair applications. FLS317 is built to match the listed connector and terminal configuration for the specified GM fitments.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Chevrolet | Camaro | — | — | N/A | — |
| 2019 | Cadillac | ATS | 3.6L | V6 | N/A | — |
| 2019 | Cadillac | CT6 | 4.2L | V8 | N/A | — |
| 2019 | Cadillac | CTS | — | — | N/A | — |
| 2019 | Chevrolet | Camaro | — | — | N/A | — |
| 2018 | Cadillac | ATS | 3.6L | V6 | N/A | — |
| 2018 | Cadillac | CTS | — | — | N/A | — |
| 2018 | Chevrolet | Camaro | — | — | N/A | — |
| 2017 | Buick | Enclave | 3.6L | V6 | N/A | — |
| 2017 | Cadillac | ATS | 3.6L | V6 | N/A | — |
| 2017 | Cadillac | CTS | — | — | N/A | — |
| 2017 | Chevrolet | Traverse | 3.6L | V6 | N/A | — |
| 2016 | Cadillac | ATS | 3.6L | V6 | N/A | — |
| 2016 | Cadillac | CTS | — | — | N/A | — |
| 2016 | Chevrolet | Traverse | 3.6L | V6 | N/A | — |
| 2015 | Cadillac | ATS | 3.6L | V6 | N/A | — |
| 2015 | Cadillac | CTS | — | — | N/A | — |
| 2015 | Chevrolet | Traverse | 3.6L | V6 | N/A | — |
| 2014 | Cadillac | ATS | 3.6L | V6 | N/A | — |
| 2013 | Cadillac | ATS | 2.0L | L4 | N/A | — |
