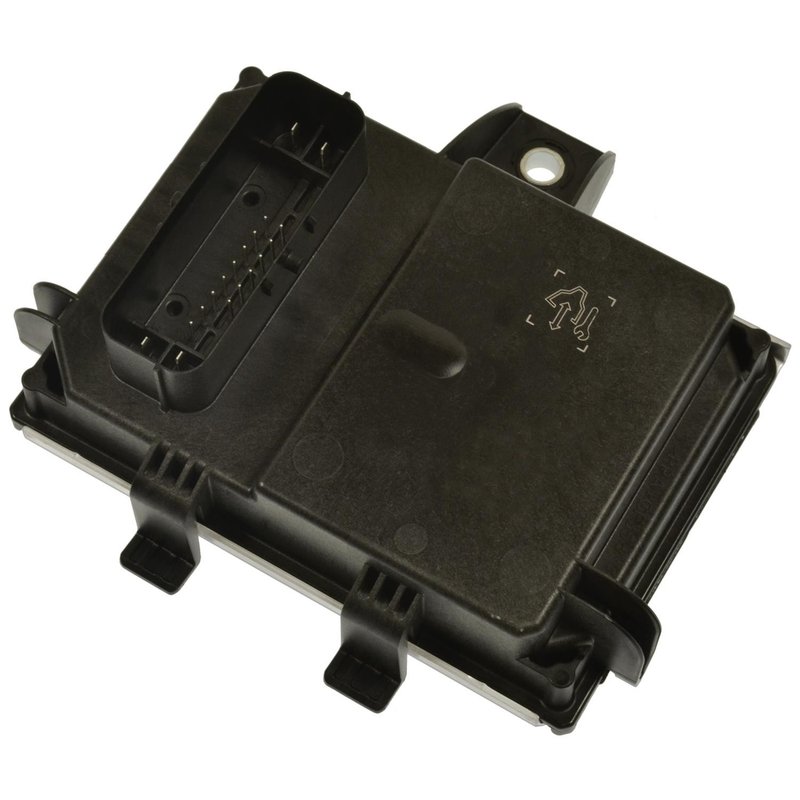

Standard Ignition FPM111 Fuel Pump Driver Module

Reliable Fuel Pump Driver Module for Select GM Vehicles

The Standard Ignition Fuel Pump Driver Module (Part Number FPM111) is designed to provide consistent fuel pump control for various Buick, Cadillac, and Chevrolet models. Engineered with precise connector and terminal specifications, this module ensures proper electrical connections and reliable fuel delivery performance.

• Connector Gender: Female for secure plug-in connection
• Terminal Gender: Male blade terminals for optimal conductivity
• Terminal Quantity: 18 terminals to support complex wiring needs
• Terminal Type: Blade terminals designed for durability and ease of installation

Technical Details and Compatibility

This fuel pump driver module features an 18-terminal blade configuration with female connector gender and male terminals, providing a robust interface for fuel pump control circuits. The design supports precise electrical signaling required for fuel pump operation in vehicles such as the Buick Regal, Cadillac XTS, Chevrolet Camaro, Cruze, Impala, Sonic, SS, Trax, and Volt. The part number FPM111 corresponds to a module engineered to meet OEM specifications, ensuring compatibility and performance within the air and fuel delivery system.

Applications and Problem Resolution

This module is used to regulate the fuel pump's electrical input, ensuring consistent fuel pressure and engine performance. It addresses issues such as:

• Intermittent fuel pump operation causing engine stalling
• Failure to start due to lack of fuel pump activation
• Erratic fuel delivery impacting engine efficiency
• Electrical connection failures within the fuel pump circuit
• Diagnostic trouble codes related to fuel pump driver faults

Installation Notes and Tips

When installing the Standard Ignition FPM111 fuel pump driver module, ensure the female connector aligns properly with the vehicle’s wiring harness. Verify that all 18 blade terminals are securely connected to prevent electrical faults. It is recommended to disconnect the battery before installation to avoid electrical shorts. Consult the vehicle’s service manual for specific wiring diagrams and torque specifications.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards. The FPM111 fuel pump driver module undergoes rigorous testing to ensure durability and reliable performance. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
