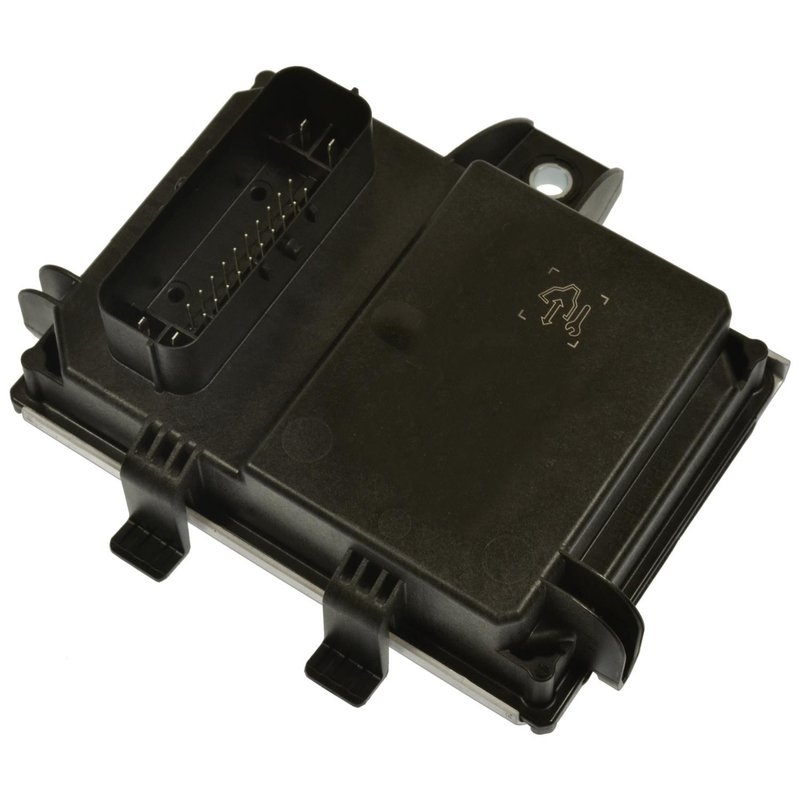

Standard Ignition FPM113 Fuel Pump Driver Module

Overview of Standard Ignition Fuel Pump Driver Module FPM113

The Standard Ignition Fuel Pump Driver Module (part number FPM113) is designed to provide reliable fuel pump control for select Buick, Cadillac, and Chevrolet vehicles. This module ensures proper fuel delivery and system performance for models including the ATS, Camaro, Cruze, CTS, LaCrosse, Malibu, and Regal.

• Connector Gender: Female for secure connection
• Terminal Gender: Male terminals for compatibility
• Terminal Quantity: 24 terminals to support complex wiring
• Terminal Type: Blade terminals for reliable electrical contact

Technical Details and Compatibility

The FPM113 fuel pump driver module features a female connector interface paired with 24 male blade terminals, providing a robust and precise electrical connection. This configuration supports the fuel pump control systems in various GM vehicles, including Buick LaCrosse and Regal, Cadillac ATS and CTS, and Chevrolet Camaro, Cruze, and Malibu. The blade terminal design ensures consistent conductivity and durability under automotive operating conditions.

Applications and Problem Resolution

This fuel pump driver module is used to regulate the fuel pump operation, ensuring optimal fuel pressure and delivery. It addresses several common issues such as:

• Intermittent fuel pump operation or failure to start
• Erratic engine performance due to fuel delivery inconsistencies
• Fuel pump relay or control circuit malfunctions
• Electrical connection failures within the fuel pump system

Installation Notes and Tips

• Verify vehicle compatibility with Buick, Cadillac, and Chevrolet models listed before installation
• Ensure the female connector and male blade terminals align correctly to avoid connection damage
• Disconnect the battery before replacing the module to prevent electrical shorts
• Inspect wiring harness and connectors for corrosion or damage during installation

Quality Assurance and Warranty

Standard Ignition manufactures the FPM113 fuel pump driver module to meet OEM specifications for fit, form, and function. This part undergoes rigorous testing to ensure durability and reliable performance in the fuel delivery system. Warranty coverage details should be confirmed with the product documentation or supplier.
