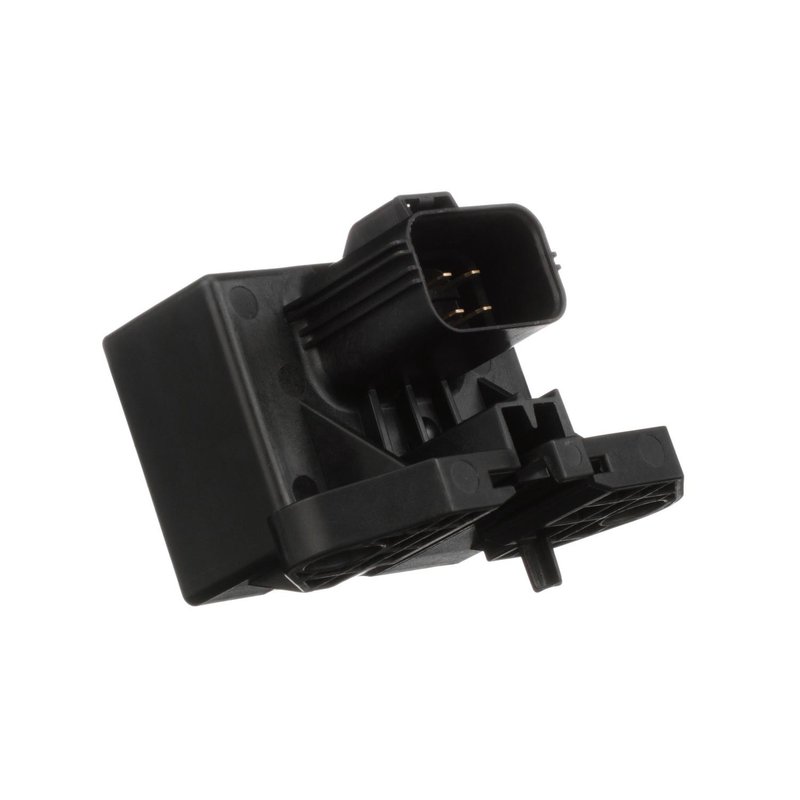

Standard Ignition FPM120 Fuel Pump Driver Module

Reliable Fuel Pump Driver Module for Ford Vehicles

The Standard Ignition FPM120 Fuel Pump Driver Module is engineered to provide consistent fuel pump control for select Ford models. Designed with precise connector and terminal specifications, this module ensures optimal electrical performance and compatibility.

• Connector Gender: Female for secure connection
• Terminal Gender: Male blade terminals
• Terminal Quantity: 8 terminals for reliable signal transmission
• Terminal Type: Blade terminals for easy installation and durability
• Compatible with multiple Ford models including Expedition, Explorer, F-150, F-250 Super Duty, F-350 Super Duty, Transit-250, Transit-350, and Transit-350 HD

Technical Details and Compatibility

The FPM120 Fuel Pump Driver Module from Standard Ignition is designed to meet the electrical and mechanical requirements of various Ford trucks and SUVs. Featuring a female connector and eight male blade terminals, this module facilitates a secure and efficient connection to the vehicle’s fuel pump system. The blade terminal design supports straightforward installation and reliable conductivity, minimizing the risk of connection failures. This part is specifically compatible with Ford Expedition, Explorer, F-150, F-250 Super Duty, F-350 Super Duty, Transit-250, Transit-350, and Transit-350 HD models, ensuring proper fitment and function.

Common Applications and Problem Resolution

• Restores proper fuel pump operation in Ford F-150 and Super Duty trucks
• Resolves intermittent fuel delivery issues in Ford Expedition and Explorer
• Addresses fuel pump electrical faults in Ford Transit-250 and Transit-350 series
• Eliminates no-start conditions related to fuel pump driver module failure
• Improves fuel system reliability and vehicle drivability

Installation Notes and Tips

When installing the Standard Ignition FPM120, ensure the female connector aligns correctly with the vehicle’s wiring harness. Verify that all eight male blade terminals are fully seated to prevent electrical interruptions. It is recommended to disconnect the battery before installation to avoid electrical shorts. Properly secure the module to avoid vibration damage and confirm all connections are clean and free of corrosion for optimal performance.

Quality Assurance and Warranty

Standard Ignition manufactures the FPM120 Fuel Pump Driver Module to meet OEM specifications for fit, form, and function. This part undergoes rigorous testing to ensure durability and reliable operation under normal driving conditions. The product is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship for a specified period.
