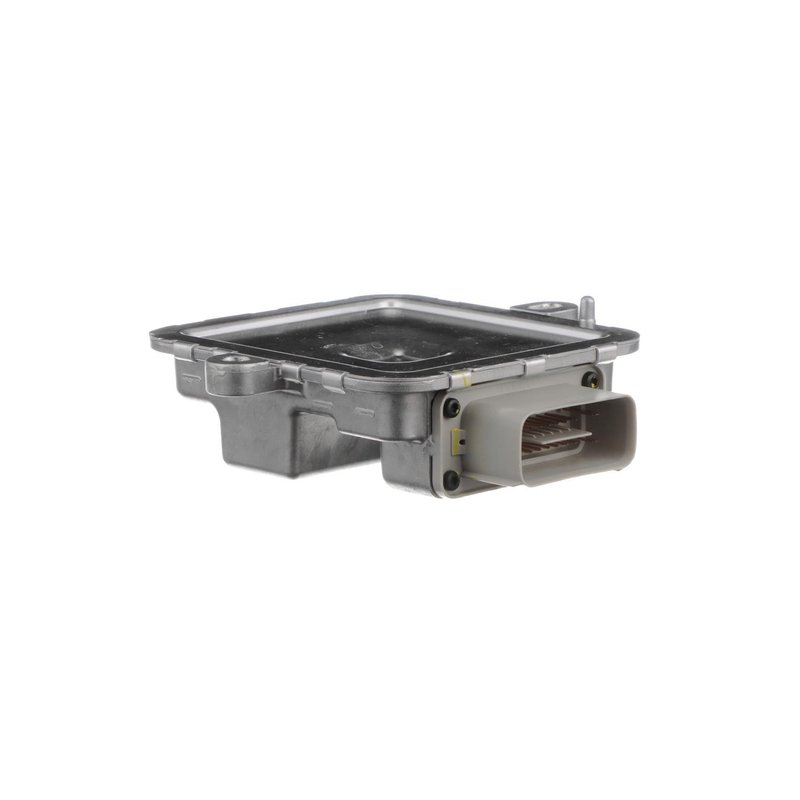

Standard Ignition FPM124 Fuel Pump Driver Module

Overview of Standard Ignition Fuel Pump Driver Module FPM124

The Standard Ignition Fuel Pump Driver Module (part number FPM124) is engineered to provide reliable fuel pump control for select Cadillac, Chevrolet, and GMC vehicles. Designed with precise connector and terminal specifications, this module ensures consistent fuel delivery performance for models such as the Chevrolet Camaro, Cadillac CTS, and GMC Sierra 1500.

• Connector Gender: Female for secure connection
• Terminal Gender: Male blade terminals
• Terminal Quantity: 16 terminals for comprehensive connectivity
• Terminal Type: Blade terminals for durability and ease of installation
• Compatible with multiple GM vehicles including Cadillac ATS, Chevrolet Corvette, and GMC Yukon XL

Technical Details and Compatibility

The FPM124 fuel pump driver module features a female connector interface paired with 16 male blade terminals, providing a robust electrical connection essential for fuel pump operation. The blade terminal design supports reliable conductivity and resistance to corrosion, which is critical in automotive environments. This module is compatible with a range of General Motors vehicles, including Cadillac Escalade and Escalade ESV, Chevrolet Silverado 2500 HD and 3500 HD, as well as GMC Sierra 2500 HD and 3500 HD. Its design meets OEM specifications to maintain proper fuel pump function and vehicle performance.

Applications and Problem Resolution

This fuel pump driver module is used to regulate the electrical current to the fuel pump, ensuring optimal fuel pressure and delivery. It addresses several common issues, including:

• Intermittent or no fuel pump operation
• Engine stalling or hesitation due to fuel delivery problems
• Failure of the fuel pump to activate
• Electrical faults related to fuel pump control circuits
• Diagnostic trouble codes related to fuel pump driver module malfunction

Installation Notes and Tips

When installing the Standard Ignition FPM124, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the connector gender and terminal type match the vehicle’s wiring harness before installation. Properly seat the female connector and confirm all 16 male blade terminals are fully engaged to avoid connectivity issues. It is recommended to inspect related wiring and fuses during replacement to ensure overall system integrity.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing dependable performance and durability. The FPM124 fuel pump driver module undergoes rigorous testing to ensure compatibility and function within specified GM vehicles. This part is backed by Standard Ignition’s limited warranty, covering defects in material and workmanship under normal use conditions.
