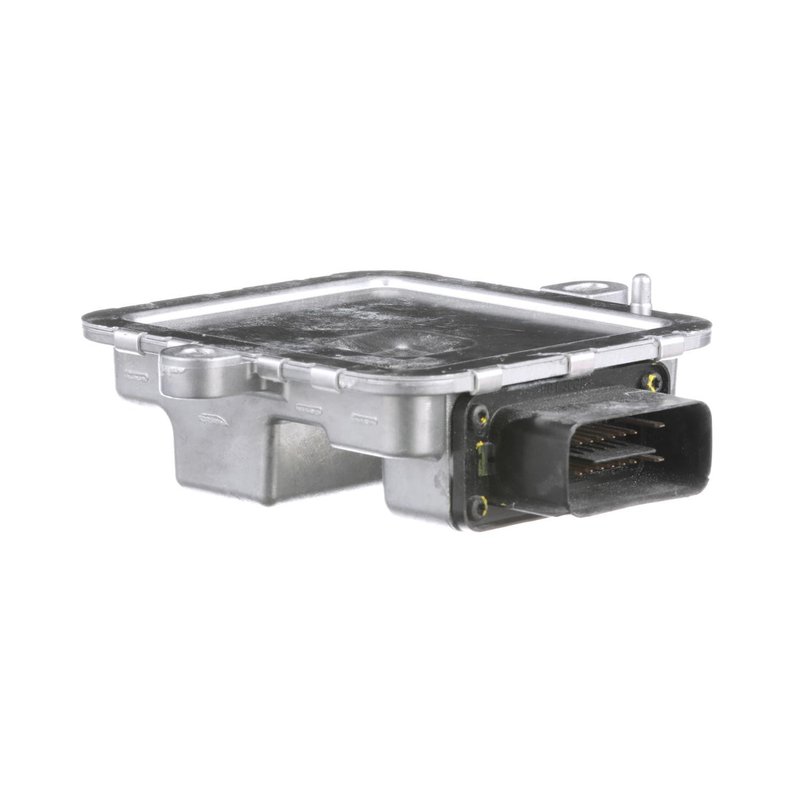

Standard Ignition FPM125 Fuel Pump Driver Module

Overview of Standard Ignition Fuel Pump Driver Module FPM125

The Standard Ignition Fuel Pump Driver Module (part number FPM125) is designed to provide reliable control of the fuel pump in select Buick, Cadillac, Chevrolet, and GMC vehicles. This module ensures proper fuel delivery for models such as the Chevrolet Camaro, Buick Enclave, and GMC Terrain, supporting optimal engine performance.

• Connector Gender: Female for secure connection
• Terminal Gender: Male terminals for compatibility
• Terminal Quantity: 16 terminals to support complex wiring
• Terminal Type: Blade terminals for reliable electrical contact

Technical Details and Compatibility

The FPM125 fuel pump driver module features a female connector and 16 male blade terminals, designed to integrate seamlessly with the vehicle’s existing wiring harness. This configuration supports precise electrical control of the fuel pump, which is critical for maintaining consistent fuel pressure and engine efficiency. Compatible with a range of vehicles including the Buick LaCrosse, Cadillac CTS, Chevrolet Cruze, and GMC Canyon, this module meets the specifications required for proper fuel system operation.

Applications and Problem Resolution

This fuel pump driver module is used to regulate the electrical current to the fuel pump, ensuring consistent fuel delivery under varying engine loads. It addresses several common issues:

• Intermittent fuel pump operation causing engine stalling
• Failure to start due to lack of fuel pump activation
• Erratic fuel pressure leading to poor engine performance
• Electrical faults in the fuel pump circuit
• Diagnostic trouble codes related to fuel pump control

Installation Notes and Tips

When installing the Standard Ignition FPM125, ensure the female connector aligns properly with the vehicle’s wiring harness. Verify that all 16 male blade terminals are securely seated to prevent electrical interruptions. It is recommended to disconnect the battery before installation to avoid electrical shorts. Proper installation will restore reliable fuel pump control and improve vehicle drivability.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards. The FPM125 fuel pump driver module undergoes rigorous testing to ensure durability and performance. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
