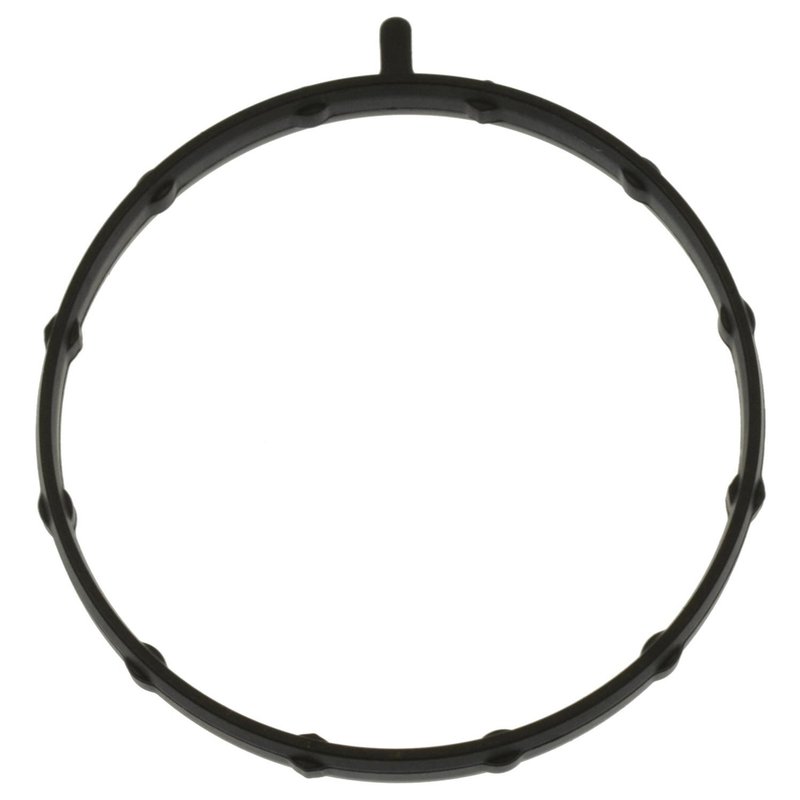

Standard Ignition GDG502 Fuel Pump Mounting Gasket

Fuel Pump Mounting Gasket for GDI Systems

Standard Ignition GDG502 is an OE replacement fuel pump mounting gasket for direct gasoline direct injection (GDI) fuel systems. It is built for direct-system applications where a precise seal at the housing is required to maintain proper fuel pump mounting integrity.

Compatible with select Mazda 3, Mazda 6, and CX-5 applications, this gasket supports service work on direct-injection fuel delivery systems. Standard Ignition GDG502 is also cross-referenced to common aftermarket and OE-style part numbers for the same application.

• Fuel pump mounting gasket for direct fuel injection systems
• OE replacement part for service and repair applications
• Designed for direct system use at the housing
• Fits Mazda 3, Mazda 6, and CX-5 applications listed below
• Standard Ignition GDG502 for direct-injection fuel system service

Application Details

• Fits 2014-2017 Mazda 3, N/A, at housing
• Fits 2014-2017 Mazda 6, N/A, at housing
• Fits 2013-2017 Mazda CX-5, N/A, at housing
• Fits 2012-2013 Mazda 3, N/A, w/ Skyactiv Technology; at housing

What This Gasket Helps Address

• Fuel seepage at the pump mounting surface
• Loss of sealing integrity at the housing
• Service replacement needs during fuel pump repair
• Direct-injection fuel system maintenance on Mazda 3, Mazda 6, and CX-5

Installation Notes

Install at the housing location specified for the vehicle application. Verify the engine and fuel system configuration before service, especially on 2012-2013 Mazda 3 models with Skyactiv Technology. Clean the sealing surfaces thoroughly before installing the gasket to support proper sealing.

Quality Assurance

Standard Ignition supplies OE-style replacement components for fuel system service. GDG502 is an OE replacement gasket built for direct fuel injection applications and is cross-referenced to 2-34514 and GKDL6615 for the same application.
