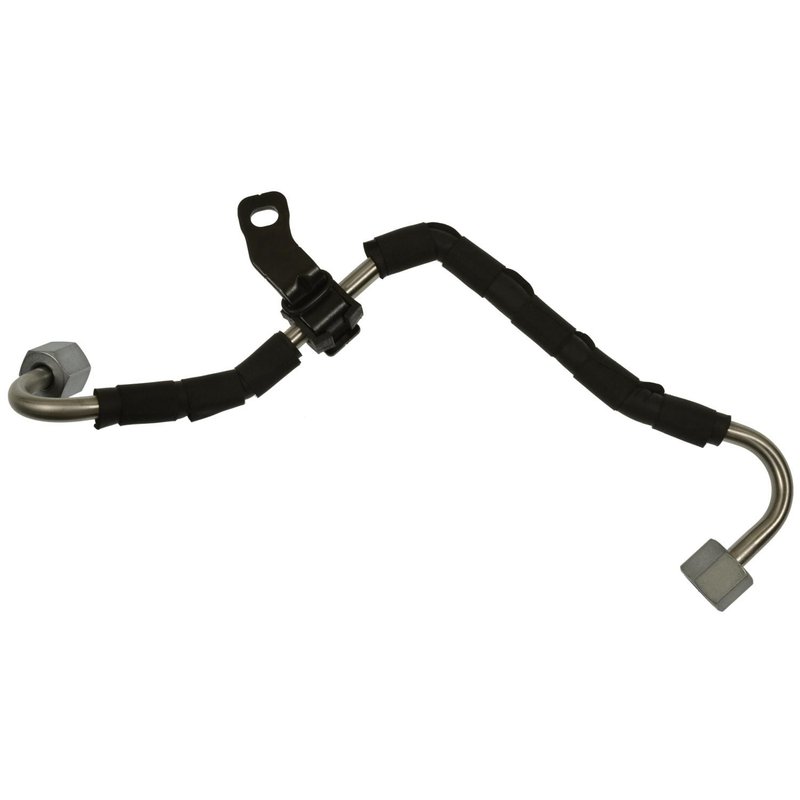

Standard Ignition GDL413 Fuel Feed Line

Fuel Feed Line for Direct Injection Systems

The Standard Ignition GDL413 is an OE replacement fuel feed line for direct gasoline injection applications. It is built for the high-pressure connection between the fuel pump and fuel rail on select Genesis and Hyundai models, with molded metal construction and screw-on fittings at both ends.

Compatible with 2015-2016 Hyundai Genesis, 2017 Genesis G80, and 2017 Genesis G90, this fuel feed line is a direct-style service part for the right-side high-pressure fuel path. The Standard Ignition GDL413 is specified for GDI and direct fuel systems where accurate fit and secure threaded connections matter.

Key Features

• OE replacement fuel feed line for direct fuel systems
• Fits GDI gasoline applications with high-pressure routing
• Screw-on fittings on both ends with 14MM x 1.50 thread size
• Metal construction with molded shape for application-specific routing
• 11-inch overall length and 0.157-inch inner diameter
• Two-port design for pump-to-fuel-rail connection
• Standard Ignition GDL413 for select Genesis and Hyundai vehicles

Detailed Description

The Standard Ignition GDL413 fuel feed line is engineered for direct injection fuel delivery where the line must maintain a secure, high-pressure connection from the pump to the fuel rail. Its metal construction, molded profile, and threaded screw-on ends support the factory-style routing used on 2015-2016 Hyundai Genesis and 2017 Genesis G80 and G90 applications. If you are replacing a worn or damaged fuel line on a Genesis or Hyundai direct-injection system, this part number GDL413 provides the correct fitment profile for the specified vehicles.

This part cross-references 2-34444 and 800-6545 for the same application.

What It Helps Address

• Fuel seepage at a damaged or worn high-pressure line
• Hard starting caused by a compromised fuel delivery path
• Pressure loss between the fuel pump and fuel rail
• Leaks from threaded fuel line connections
• Service replacement for a bent or corroded fuel feed line

Installation Notes and Tips

Verify the vehicle’s direct injection fuel system, thread size, and right-side pump-to-fuel-rail routing before installation. The GDL413 uses screw-on 14MM x 1.50 fittings at both ends and is intended for the listed Genesis and Hyundai applications. Inspect mating surfaces, seals, and adjacent fuel system components for wear before reassembly.

Quality Assurance

Standard Ignition supplies OE replacement service parts for factory-style repair needs. The GDL413 is built to match the specified application requirements for fit, thread size, and fuel system routing on the listed Genesis and Hyundai models.
