Standard Ignition GDL502 Fuel Feed Line

OE Fuel Feed Line for Direct Injection

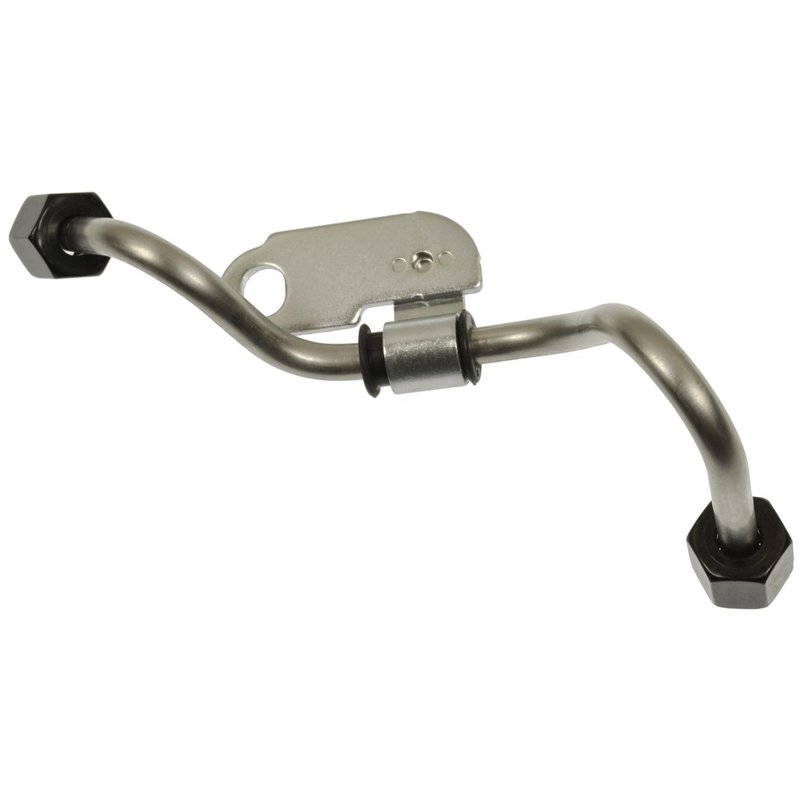

Standard Ignition GDL502 is a metal fuel feed line for direct gasoline direct injection (GDI) systems. It connects the high-pressure fuel pump to the fuel rail and is built as an OE replacement for select Nissan applications.

Key Features

• OE replacement fuel feed line for direct fuel systems
• Metal construction with molded shape for proper routing
• End 1 and End 2 use screw-on fittings
• 14 mm x 1.50 thread size at both ends
• 4.5 mm inner diameter and 4.375 in. overall length
• Two-port design for high-pressure fuel delivery
• Fits gasoline direct injection applications

Application Details

Standard Ignition GDL502 is built for direct fuel system service where a precise high-pressure connection is required between the pump and fuel rail. This fuel feed line is a direct replacement for select Nissan models, including 2015-2017 Nissan Juke, 2017-2018 Nissan Rogue, 2017-2018 Nissan Rogue Sport, and 2017-2018 Nissan Sentra. If you are searching for a Nissan Rogue fuel feed line, Nissan Sentra fuel line, or a direct injection fuel line replacement, GDL502 matches the listed OE-style application.

This part cross-references GB 894-006 for the same application.

Common Uses

• Replaces a leaking or damaged high-pressure fuel feed line
• Restores proper fuel delivery from pump to fuel rail
• Addresses hard-start or fuel pressure loss concerns tied to line failure
• Supports repair of cracked, corroded, or bent direct-injection fuel tubing
• Helps return the fuel system to OE routing and fitment

Installation Notes

Verify thread size, port count, and routing before installation. This line uses screw-on 14 mm x 1.50 fittings at both ends and is intended for direct fuel system service. Clean mating surfaces, inspect the pump and rail connections, and confirm there is no damage to adjacent fuel system components before final assembly.

Quality Assurance

Standard Ignition supplies OE replacement fuel system parts built to match the original application requirements for fit and function. GDL502 is engineered for direct replacement use on the listed Nissan Rogue, Rogue Sport, Sentra, and Juke applications.
