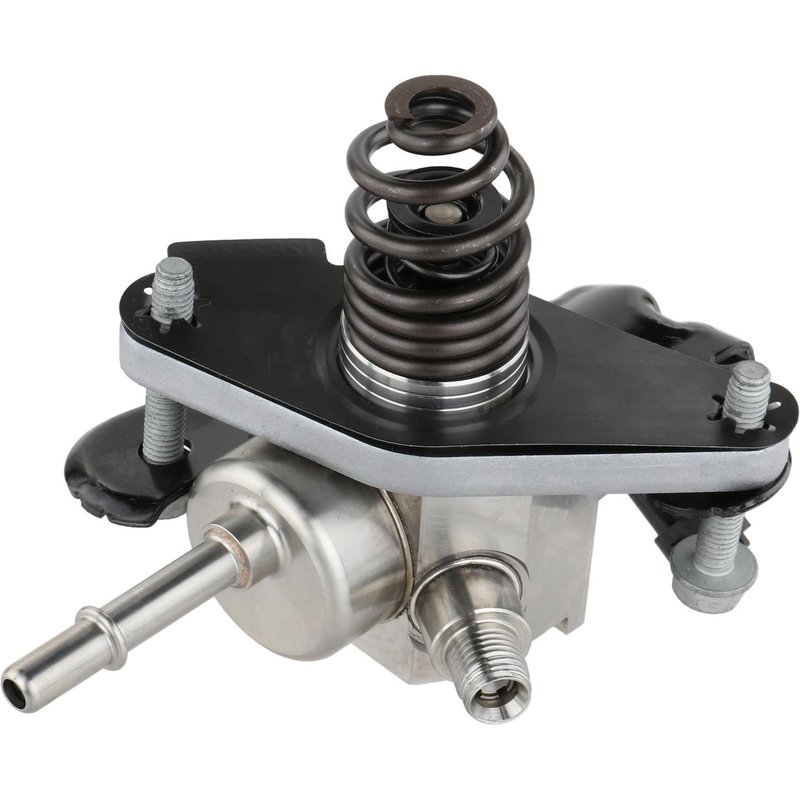

Standard Ignition GDP712 Direct Injection High Pressure Fuel Pump

Direct Injection Fuel Pump for GM GDI Systems

Standard Ignition GDP712 is a direct injection high pressure fuel pump built for gasoline direct injection systems. It is an OE replacement part with an oval connector shape, mechanical operation, and a direct fuel delivery design for precise fuel supply in supported applications.

Compatible With 2015-2019 Chevrolet Corvette, 2016-2019 Cadillac CTS, and 2017-2022 Chevrolet Camaro applications that use this direct injection fuel pump design.

Key Features

• OE replacement direct injection high pressure fuel pump
• Designed for gasoline fuel delivery and GDI fuel injection systems
• Mechanical pump construction
• Oval connector shape with 2 blade terminals
• Includes mounting gasket and mounting bolts
• Gaskets included for installation sealing
• Submersible design
• No filter, strainer, or wiring harness included

Detailed Product Overview

Standard Ignition GDP712 is engineered for direct fuel system service where a high pressure pump is required to support gasoline direct injection operation. The pump uses a mechanical design, a 2-terminal blade connection, and an oval connector shape to match the specified OE-style application. Standard Ignition GDP712 is listed as an OEM replacement and is cross-referenced to 2-34254 and 12642287 for the same application.

This part is used in 2015-2019 Chevrolet Corvette, 2016-2019 Cadillac CTS, and 2017-2022 Chevrolet Camaro models. When replacing a direct injection high pressure fuel pump, matching the fuel type, connector style, and system type is critical for proper fitment and operation.

Common Issues This Part Can Address

• Hard starting related to low high-pressure fuel delivery
• Fuel pressure loss in a GDI system
• Engine hesitation under load caused by pump wear
• Fuel delivery inconsistency in direct injection applications
• Check engine light conditions tied to fuel pressure performance

Installation Notes and Tips

Verify the connector shape, terminal type, and direct injection system requirements before installation. Standard Ignition GDP712 includes the mounting gasket and mounting bolts, and the supplied gaskets should be used during replacement to help maintain sealing integrity. Confirm vehicle application by year and model before service, especially on Chevrolet Camaro, Chevrolet Corvette, and Cadillac CTS platforms.

Quality Assurance

Standard Ignition supplies OE-style replacement components for fuel system service, and this pump is built to match the specified direct injection application requirements. Part number GDP712 is intended for direct replacement use in the listed vehicles.
