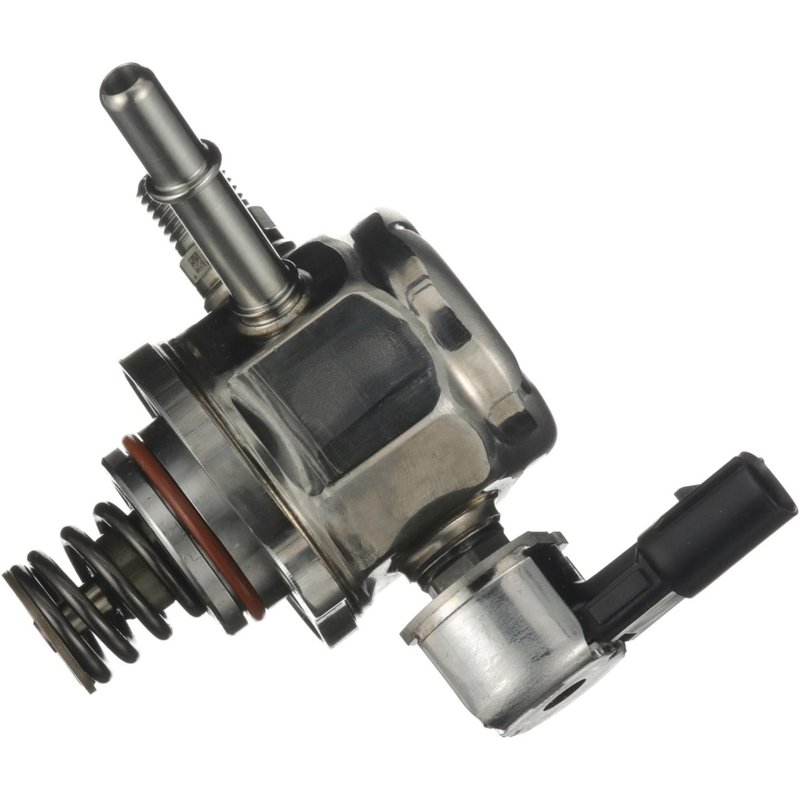

Standard Ignition GDP740 Direct Injection High Pressure Fuel Pump

Direct Injection Fuel Pump for Transit Connect

Standard Ignition GDP740 is a direct injection high pressure fuel pump for gasoline GDI systems. It is an OE replacement part built for 2019-2022 Ford Transit Connect applications and uses a mechanical design with an oval connector and 2 blade terminals.

Key Features

• Direct injection high pressure fuel pump for gasoline fuel delivery
• OE replacement for 2019-2022 Ford Transit Connect
• Mechanical pump design for GDI systems
• Oval connector shape with 2 blade terminals
• Includes gasket and O-ring
• Submersible design; no filter, strainer, or wiring harness included

Product Details

Standard Ignition GDP740 is built for direct fuel system service on Ford Transit Connect models equipped with gasoline direct injection. The pump features a mechanical operating style, an oval connector, and blade-style terminals for a direct-fit replacement approach. It includes seals and an O-ring, while the filter, strainer, and wiring harness are not included. This part cross-references JX6Z9350A and 800-6342 for the same application.

Common Fuel System Issues It Can Address

• Hard starting caused by low high-pressure fuel delivery
• Fuel pressure loss in a GDI system
• Engine hesitation or stumble under load
• Driveability problems related to a worn direct injection pump
• Fuel system faults tied to pump seal leakage

Installation Notes

Verify connector shape, terminal type, and fuel system configuration before installation. Replace the included O-ring and seals during service, and confirm the pump is being installed on a gasoline direct injection application. Fits 2019-2022 Ford Transit Connect. Fits 2019-2022 Ford Transit Connect, N/A.

Quality Assurance

Standard Ignition supplies OE replacement fuel system components for service work that requires correct fit and function. Part number GDP740 is intended for direct replacement use on the listed Ford Transit Connect applications.
