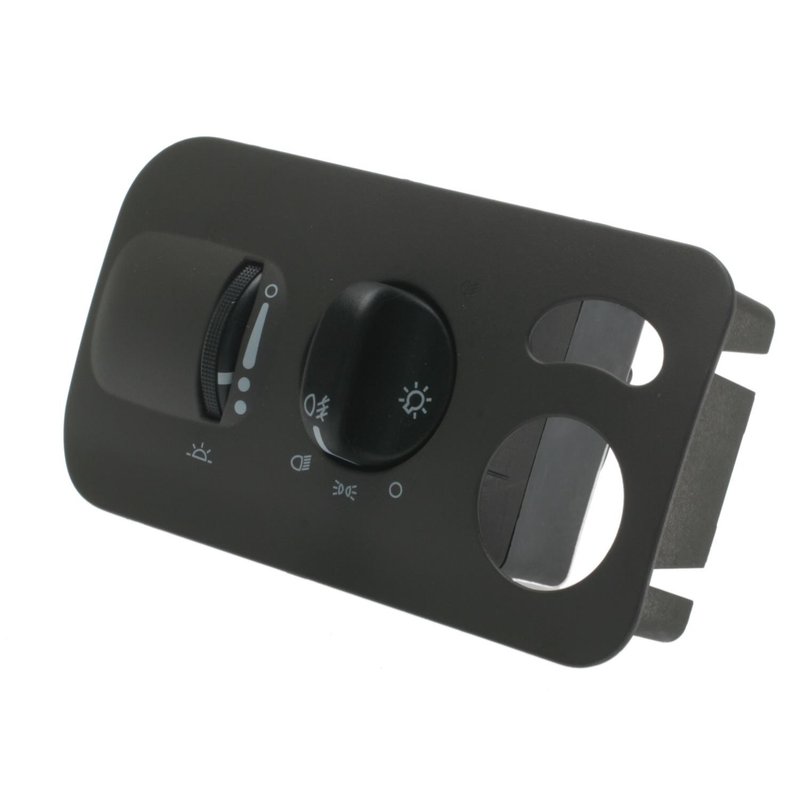

Standard Ignition HLS-1161 Headlight Switch

Reliable Headlight Switch for Chrysler and Dodge Vehicles

The Standard Ignition HLS-1161 headlight switch is designed for direct replacement in select Chrysler and Dodge models. Engineered to provide consistent control over your vehicle's headlight functions, this switch ensures proper lighting operation for safe driving.

• Direct snap fit attachment method for easy installation
• Female rectangular connector with one connector for secure wiring
• Three switch positions to control headlight settings
• Six male pin terminals for reliable electrical connections
• Operates on standard 12-volt vehicle electrical systems

Product Details and Specifications

The HLS-1161 headlight switch from Standard Ignition features a direct snap fit attachment method, allowing for straightforward replacement without the need for additional mounting hardware. It includes a single female rectangular connector designed to interface seamlessly with your vehicle's wiring harness. The switch offers three distinct positions, enabling precise control over your headlights. Equipped with six male pin terminals, this component ensures stable and secure electrical contact within the 12-volt system typical of Chrysler Caravan, Grand Caravan, and Town & Country models.

Compatible Vehicles and Applications

This headlight switch is compatible with the following vehicles:

• Chrysler Caravan
• Chrysler Grand Caravan
• Chrysler Town & Country
• Dodge Caravan
• Dodge Grand Caravan

It is specifically designed to replace the original headlight switch in these models, restoring proper headlight function and control.

Common Issues Addressed by This Headlight Switch

• Intermittent or non-functioning headlights
• Failure to switch between headlight modes
• Loose or faulty electrical connections in the headlight circuit
• Worn or damaged switch contacts causing lighting issues
• Difficulty in operating the headlight controls

Installation Notes and Tips

Installation of the Standard Ignition HLS-1161 headlight switch is straightforward due to its direct snap fit design. Before installation, disconnect the vehicle battery to prevent electrical shorts. Carefully remove the old switch by disengaging the snap fit and disconnecting the wiring harness. Connect the new switch’s female rectangular connector to the vehicle harness, ensuring a secure fit. Verify that the six male pin terminals align correctly with the connector. After installation, test all headlight functions to confirm proper operation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HLS-1161 headlight switch undergoes rigorous quality control testing to maintain consistent electrical and mechanical function. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
