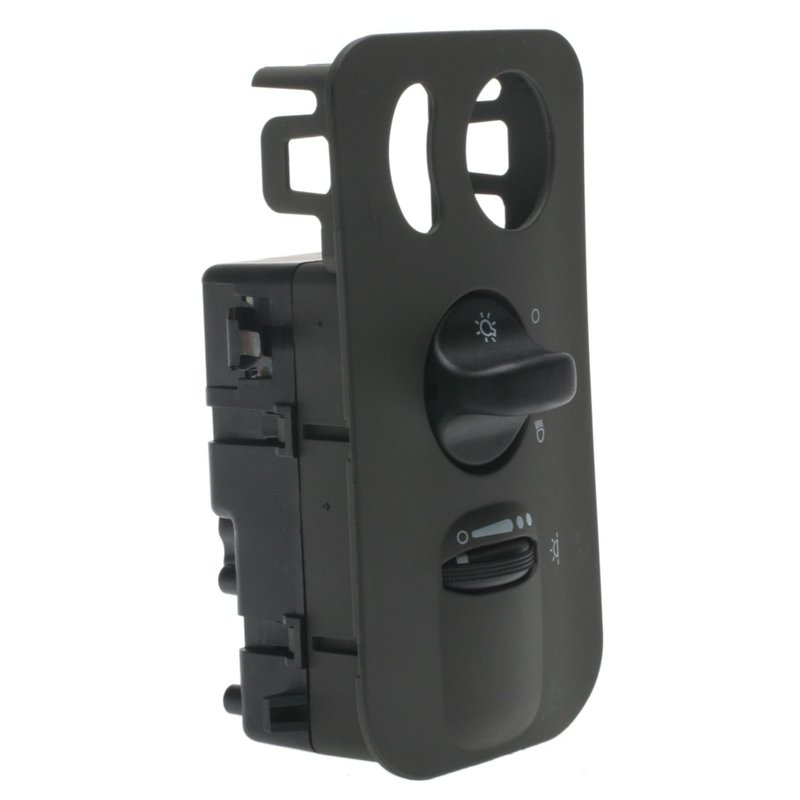

Standard Ignition HLS-1164 Instrument Panel Dimmer Switch

Reliable Instrument Panel Dimmer Switch for Chrysler and Dodge

The Standard Ignition HLS-1164 Instrument Panel Dimmer Switch is designed to provide precise control over your vehicle's dashboard lighting. Compatible with Chrysler Caravan, Dodge Grand Caravan, and Town & Country models, this switch ensures consistent performance and easy installation.

Key Features of the Standard Ignition HLS-1164 Dimmer Switch

• Direct snap fit attachment method for secure and straightforward installation
• Female rectangular connector with one connector for reliable electrical connection
• Combination switch functionality with three switch positions for versatile control
• Five male pin terminals ensuring stable and accurate electrical contact
• Operates on standard 12-volt vehicle electrical systems

Detailed Description of the Instrument Panel Dimmer Switch

The HLS-1164 dimmer switch from Standard Ignition is engineered to replace the instrument panel dimmer switch in select Chrysler and Dodge vehicles, including the Caravan, Grand Caravan, and Town & Country. Featuring a direct snap fit attachment method, this switch installs securely without the need for additional hardware. The female rectangular connector with a single connection point simplifies wiring compatibility, while the five male pin terminals provide a stable electrical interface. This combination switch offers three distinct positions, allowing drivers to adjust dashboard lighting intensity according to their preference. Designed for 12-volt systems, it integrates seamlessly with the vehicle's electrical network.

Common Applications and Issues Addressed

• Restores dashboard lighting control in Chrysler Caravan and Dodge Grand Caravan models
• Resolves dimmer switch failure causing dashboard lights to remain off or stuck at one brightness level
• Fixes intermittent or unresponsive instrument panel lighting adjustments
• Eliminates flickering or inconsistent dashboard illumination
• Replaces worn or damaged switches affecting instrument cluster visibility

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation to prevent electrical shorts
• Remove the existing dimmer switch by gently releasing the snap fit attachment
• Connect the female rectangular connector securely to the vehicle wiring harness
• Verify the five male pin terminals align correctly with the connector for proper function
• Test the switch operation through all three positions before reassembling the instrument panel

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HLS-1164 instrument panel dimmer switch undergoes rigorous quality control testing to maintain consistent functionality. Please refer to Standard Ignition's warranty policy for specific coverage details.
