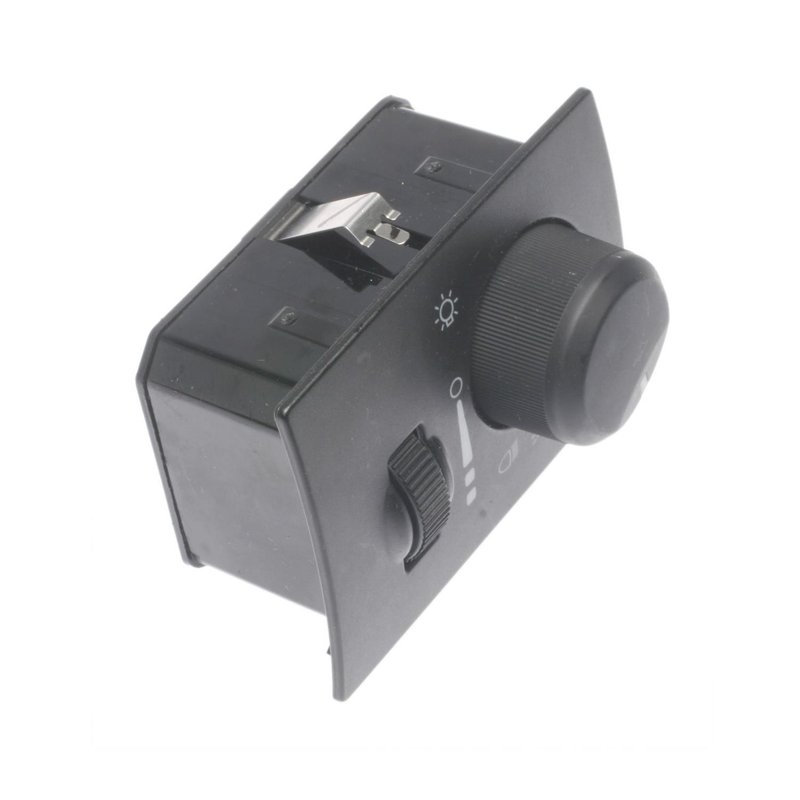

Standard Ignition HLS-1285 Instrument Panel Dimmer Switch

Overview of Standard Ignition Instrument Panel Dimmer Switch

The Standard Ignition HLS-1285 instrument panel dimmer switch is designed for reliable headlight control in select Chrysler and Dodge vehicles. This black, snap-fit switch offers a direct replacement solution for the 12-volt electrical system in models like the Chrysler 300, Dodge Challenger, Charger, and Magnum.

• Direct snap fit attachment method for easy installation
• Black plastic finish with a rectangular female connector
• Single connector with six male pin terminals
• Designed specifically for headlight dimming functions
• Compatible with 12-volt electrical systems

Product Details and Specifications

The HLS-1285 instrument panel dimmer switch from Standard Ignition features a durable plastic housing in black, ensuring a clean and functional appearance within the vehicle's interior. It connects via a single rectangular female connector, which interfaces with six male pin terminals to provide secure electrical contact. The switch is engineered to operate within a 12-volt system, matching the electrical requirements of Chrysler and Dodge vehicles including the 300, Challenger, Charger, and Magnum models. Its direct snap-fit attachment method allows for straightforward replacement without the need for additional hardware.

Compatible Vehicles and Applications

This instrument panel dimmer switch is compatible with the following vehicles:

• Chrysler 300
• Dodge Challenger
• Dodge Charger
• Dodge Magnum

It is intended for use in controlling the headlight dimming function, providing consistent and reliable operation within the instrument panel.

Common Issues Addressed by This Dimmer Switch

• Intermittent or non-functioning headlight dimmer control
• Flickering or inconsistent instrument panel lighting
• Failure of the dimmer switch to adjust headlight brightness
• Loose or damaged connector causing electrical faults
• Wear and tear from extended use leading to switch malfunction

Installation Notes and Tips

Installation of the Standard Ignition HLS-1285 dimmer switch is designed to be straightforward due to its direct snap-fit attachment. When replacing the switch, ensure the vehicle's battery is disconnected to prevent electrical shorts. Carefully disconnect the existing switch by releasing the snap-fit mechanism and unplugging the rectangular female connector. Align the new switch's connector and terminals properly before snapping it into place. Verify proper operation of the headlight dimmer function before reassembling the instrument panel.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and fitment. The HLS-1285 instrument panel dimmer switch undergoes quality control testing to maintain consistent electrical and mechanical function. Warranty coverage details should be confirmed with the point of purchase or Standard Ignition directly, as warranty terms may vary.
