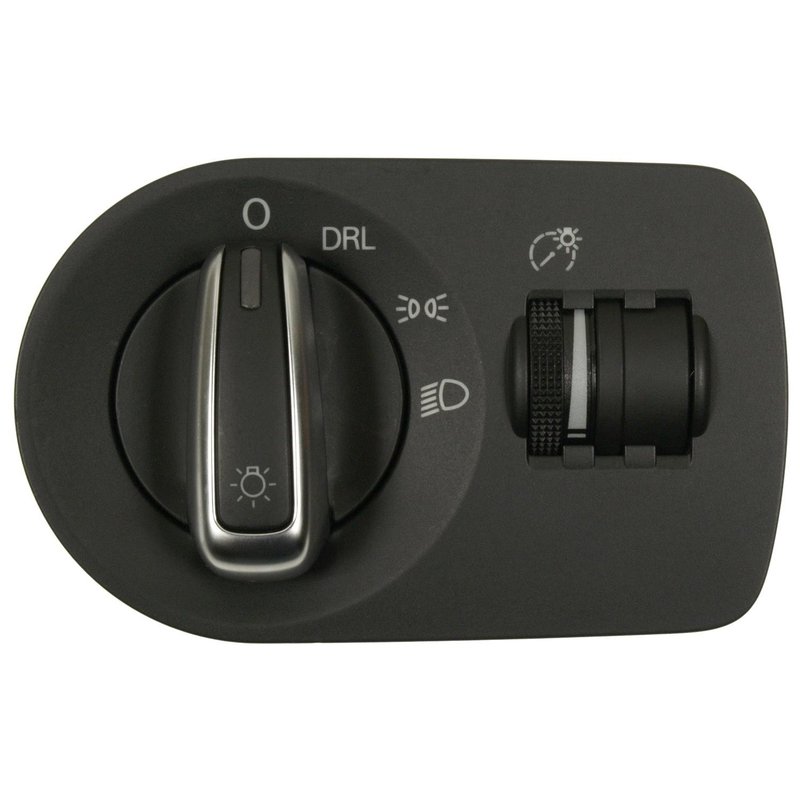

Standard Ignition HLS-1409 Headlight Switch

Overview of Standard Ignition Headlight Switch HLS-1409

The Standard Ignition headlight switch HLS-1409 is designed specifically for Audi A3 and A3 Quattro models. This 12-volt switch offers reliable control over your vehicle's headlight functions with a durable snap-fit attachment method and multiple connector options.

• Compatible with Audi A3 and A3 Quattro
• 18 terminals with male and female connectors
• Three rectangular connectors for secure connections
• Four switch positions for versatile headlight control
• Blade and pin terminal types for reliable electrical contact
• Direct snap-fit attachment for easy installation

Technical Details and Features

The HLS-1409 headlight switch features 18 terminals, combining male and female connector genders to ensure proper fit and function within the vehicle's electrical system. It includes three rectangular connectors that provide a secure and stable connection, minimizing the risk of electrical faults. The switch supports four distinct positions, allowing precise control over the headlight settings. Terminal types include blade and pin, which are standard for automotive electrical components, ensuring compatibility and durability. Operating at 12 volts, this switch integrates seamlessly with the Audi A3 and A3 Quattro's electrical system.

Applications and Problem Solving

This headlight switch is used to control the headlight functions in compatible Audi vehicles. It addresses several common issues, including:

• Intermittent or non-functioning headlights due to faulty switch contacts
• Difficulty in switching between headlight modes
• Loose or damaged connectors causing electrical failures
• Wear and tear from frequent use leading to switch malfunction
• Compatibility issues with replacement parts in Audi A3 and A3 Quattro models

Installation Notes and Tips

Installation of the Standard Ignition HLS-1409 headlight switch is straightforward thanks to its direct snap-fit attachment method. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Carefully align the rectangular connectors and terminals to avoid damage. Verify all connections are secure and test the switch functions before reassembling the dashboard components.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HLS-1409 headlight switch undergoes rigorous quality control to maintain consistent standards. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
