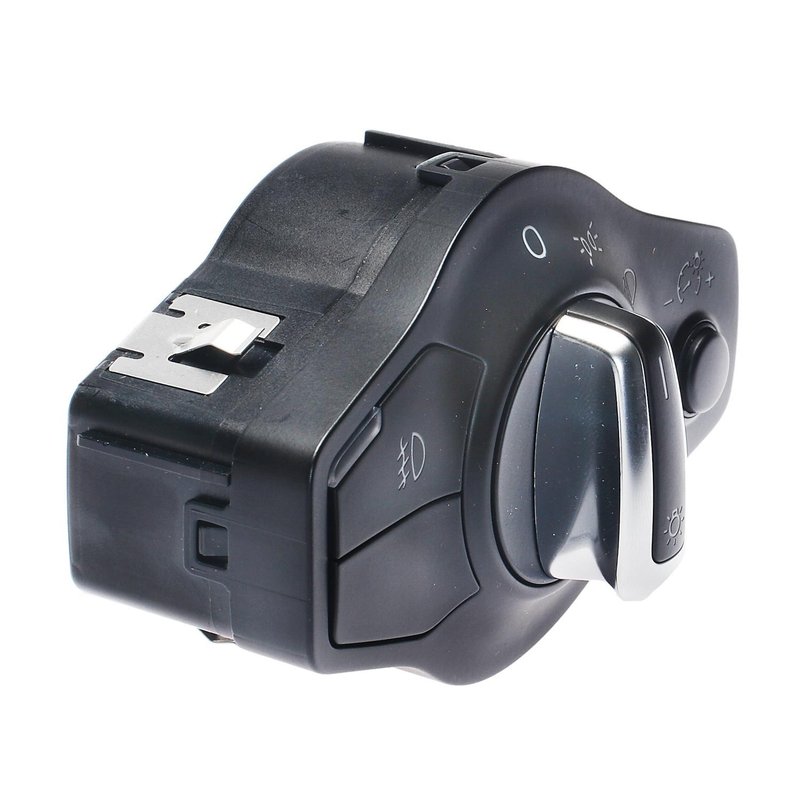

Standard Ignition HLS-1506 Headlight Switch

Overview of Standard Ignition Headlight Switch HLS-1506

The Standard Ignition headlight switch HLS-1506 is designed specifically for select Audi models, including the A5, A5 Quattro, and S5. This 12-volt switch provides reliable control over your vehicle's headlight functions with a straightforward three-position design.

• Compatible with Audi A5, A5 Quattro, and S5 models
• 12-volt headlight switch with three switch positions
• Four terminals with male pin type and one female rectangular connector
• Direct snap fit attachment method for secure installation
• Single connector with a rectangular shape for precise fitment

Technical Details and Features

The HLS-1506 headlight switch features a total of four terminals, utilizing male pin terminals paired with a female rectangular connector. This configuration ensures a secure electrical connection and compatibility with the vehicle’s wiring harness. The switch operates at 12 volts and offers three distinct switch positions, allowing for effective control of the headlight system. The direct snap fit attachment method simplifies installation and maintains a firm hold within the dashboard assembly.

Applications and Problem Resolution

This headlight switch is intended for use in Audi A5, A5 Quattro, and S5 vehicles, providing a direct replacement for factory-installed switches. It addresses several common issues, including:

• Intermittent or non-functioning headlights due to faulty switch contacts
• Difficulty switching between headlight modes
• Loose or damaged connectors causing electrical failures
• Wear and tear from extended use leading to switch malfunction
• Replacement of broken or cracked switch housing

Installation Notes and Tips

Installation of the Standard Ignition HLS-1506 headlight switch requires removal of the dashboard panel to access the existing switch. The direct snap fit design allows for straightforward replacement without additional hardware. Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts. Verify the connector orientation and terminal alignment before securing the switch in place. Testing the switch function prior to reassembling the dashboard is recommended.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HLS-1506 headlight switch undergoes quality control inspections to verify electrical and mechanical integrity. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship for a defined period. Consult product documentation or the supplier for exact warranty terms.
