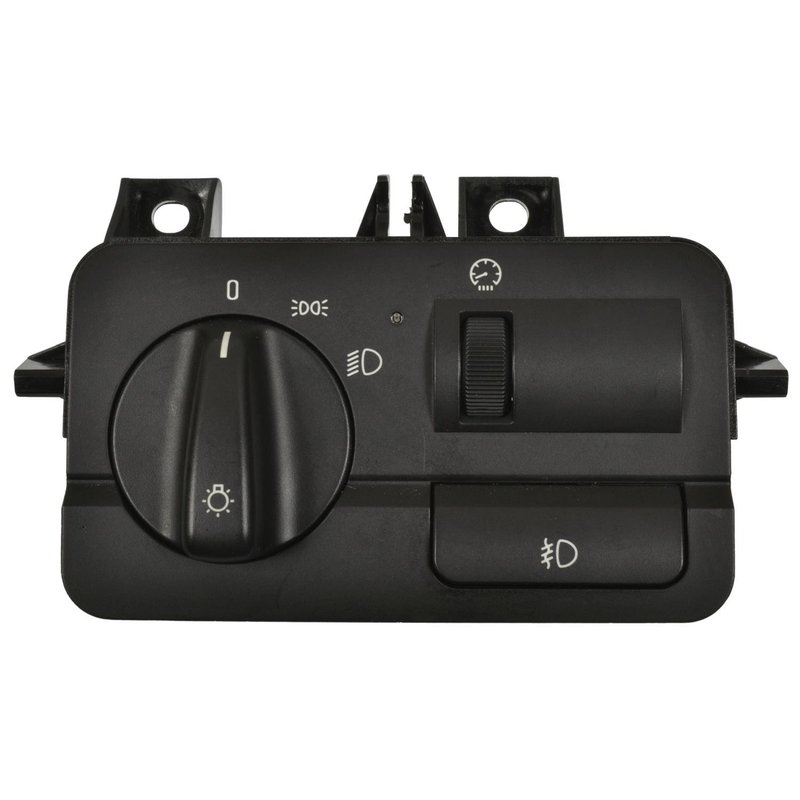

Standard Ignition HLS-1568 Instrument Panel Dimmer Switch

Reliable Instrument Panel Dimmer Switch for BMW Models

The Standard Ignition HLS-1568 instrument panel dimmer switch is designed to provide precise control over your vehicle's dashboard lighting. Compatible with a range of BMW models, this switch ensures consistent performance and easy operation.

• Terminal Quantity: 55 terminals for robust electrical connections
• Connector Gender: Female connector for secure fitment
• Terminal Gender: Male blade terminals for reliable contact
• Attachment Method: Direct snap fit for straightforward installation
• Connector Quantity: Single connector for simplified wiring
• Connector Shape: Rectangular design for compatibility
• Knob Color: Black knob matching OEM aesthetics
• Terminal Type: Blade terminals designed for durability
• Voltage: 12V system compatibility

Product Details and Compatibility

This instrument panel dimmer switch, part number HLS-1568, is engineered specifically for BMW vehicles including the 320i, 323Ci, 323i, 323is, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, and 330xi models. The switch features a female rectangular connector with a single connection point and male blade terminals, ensuring a secure and reliable electrical interface. The direct snap fit attachment method allows for easy replacement without the need for additional hardware. The black knob maintains the original interior look while providing smooth dimming control for your instrument panel lighting.

Common Applications and Issues Addressed

• Restores dimmer functionality for dashboard lighting control
• Resolves flickering or non-responsive instrument panel lights
• Replaces worn or damaged dimmer switches in BMW 3 Series models
• Improves visibility and comfort during night driving
• Eliminates electrical connection issues related to faulty terminals

Installation Notes and Tips

• Ensure vehicle ignition is off before installation to prevent electrical shorts
• Disconnect the battery to avoid accidental power surges
• Use the direct snap fit method to secure the switch without forcing connectors
• Verify the connector orientation matches the rectangular female connector on the vehicle wiring harness
• Test the dimmer switch operation before reassembling the dashboard components

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HLS-1568 instrument panel dimmer switch undergoes rigorous quality control testing to maintain consistent electrical and mechanical standards. Please refer to Standard Ignition's warranty policy for coverage details on this part.
