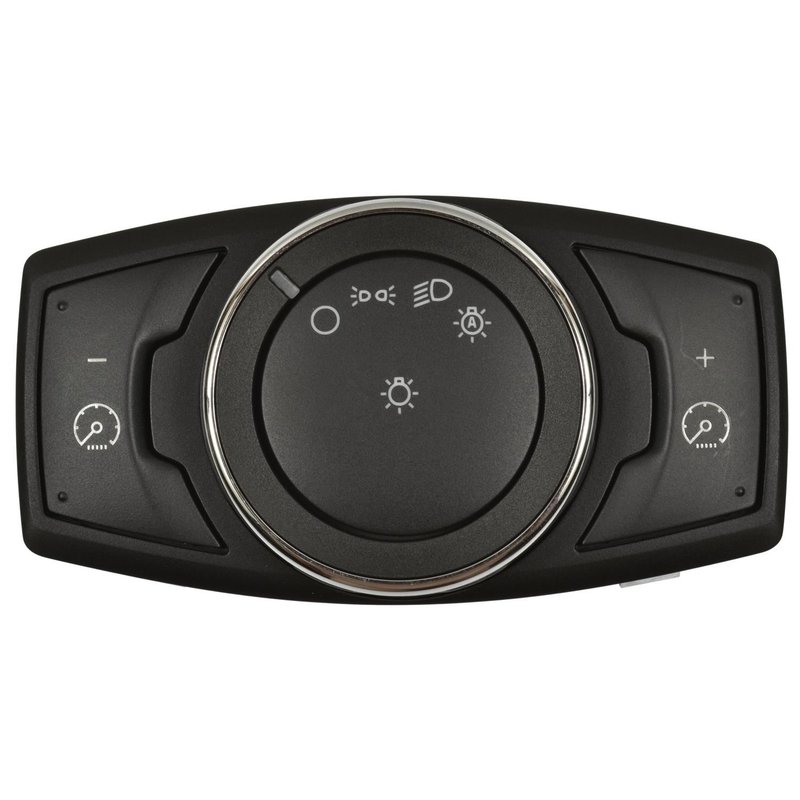

Standard Ignition HLS-1569 Headlight Switch

Reliable Headlight Switch for Ford C-Max, Focus, and Transit Models

The Standard Ignition HLS-1569 headlight switch is designed to provide dependable control of your vehicle's lighting system. Engineered for select Ford models including the C-Max, Focus, and Transit series, this switch ensures consistent performance and easy installation.

• Direct snap fit attachment method for secure installation
• Single female rectangular connector for precise electrical connection
• Black knob color for a factory-matched appearance
• Six male blade terminals supporting 12-volt electrical systems
• Compatible with Ford C-Max, Focus, Transit-150, Transit-250, Transit-350, and Transit-350 HD

Technical Details and Compatibility

The HLS-1569 headlight switch from Standard Ignition features a direct snap fit attachment method, allowing for straightforward replacement without additional hardware. It includes one female rectangular connector designed to interface with the vehicle's wiring harness, ensuring a secure and reliable connection. The switch is equipped with six male blade terminals, supporting a 12-volt electrical system common in Ford vehicles. The black knob maintains the original interior aesthetic, making it suitable for visible dashboard mounting.

Applications and Problem Resolution

This headlight switch is specifically compatible with Ford C-Max, Focus, and various Transit models, including Transit-150, Transit-250, Transit-350, and Transit-350 HD. It is ideal for addressing issues such as:

• Intermittent or non-functioning headlights
• Faulty or worn switch knobs affecting light control
• Electrical connection failures due to damaged terminals
• Difficulty in engaging or disengaging headlights
• Replacement of original equipment for maintenance or repair

Installation Notes and Tips

Installation of the Standard Ignition HLS-1569 headlight switch is designed to be straightforward. The direct snap fit attachment method allows the switch to be secured without additional fasteners. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Align the female rectangular connector properly with the vehicle harness and press firmly until the snap fit engages. Verify all six blade terminals are fully seated to maintain proper electrical contact.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HLS-1569 headlight switch undergoes rigorous quality control testing to confirm fit, form, and function. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
