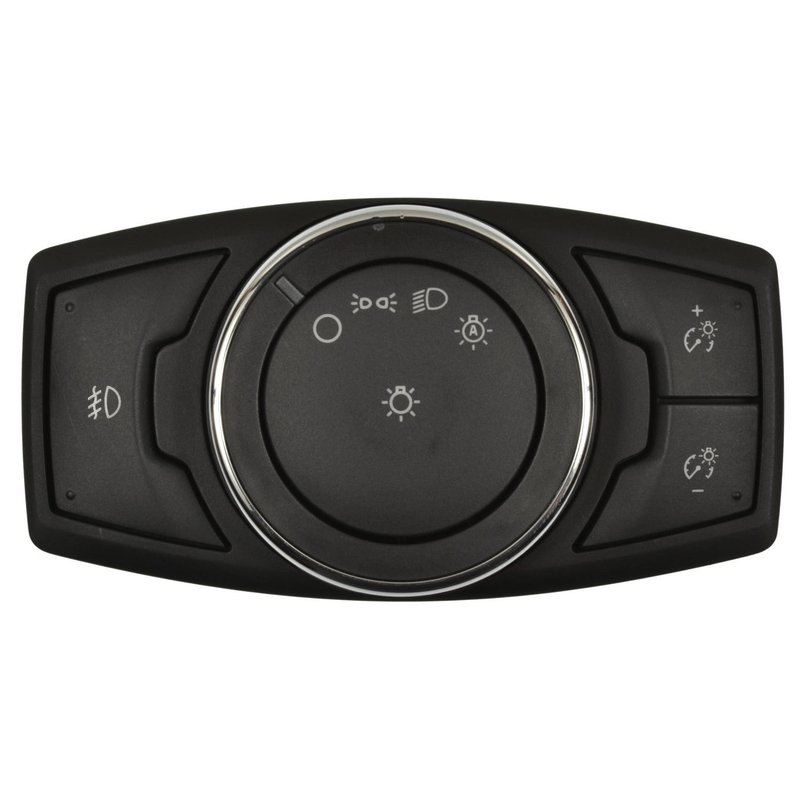

Standard Ignition HLS-1583 Instrument Panel Dimmer Switch

Reliable Instrument Panel Dimmer Switch for Ford Vehicles

The Standard Ignition HLS-1583 instrument panel dimmer switch is designed to provide precise control over your dashboard lighting. Compatible with various Ford models, this switch ensures consistent performance and easy installation.

• Direct snap fit attachment method for secure installation
• Single female rectangular connector for straightforward wiring
• Black knob color for a factory-matched appearance
• 12 male pin terminals supporting 12-volt electrical systems
• Compatible with Ford Expedition, F-250 Super Duty, F-350 Super Duty, Fusion, Mustang, and Ranger

Technical Details and Features

This instrument panel dimmer switch (part number HLS-1583) features a direct snap fit attachment method, allowing for a secure and tool-free installation. The switch includes one female rectangular connector and twelve male pin terminals, designed to handle 12 volts, which is standard for most Ford vehicles. The black knob provides a seamless look that integrates well with the interior of Ford Expedition, F-250 Super Duty, F-350 Super Duty, Fusion, Mustang, and Ranger models. The connector and terminal configuration ensures reliable electrical contact and durability under normal operating conditions.

Common Applications and Problem Resolution

• Restores dimmer functionality for dashboard lighting control
• Replaces faulty or worn-out instrument panel dimmer switches
• Eliminates flickering or inconsistent dashboard illumination
• Addresses issues with dimmer switch electrical connectivity
• Improves visibility and driver comfort during night driving

Installation Notes and Tips

Installation of the Standard Ignition HLS-1583 dimmer switch is straightforward due to its direct snap fit design. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical shorts. Align the rectangular female connector properly with the vehicle wiring harness and press firmly until the switch snaps into place. Verify that all 12 male pin terminals are securely connected to avoid intermittent operation. After installation, test the dimmer switch functionality before reassembling the instrument panel.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HLS-1583 instrument panel dimmer switch undergoes rigorous quality control testing to maintain consistent electrical and mechanical standards. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
