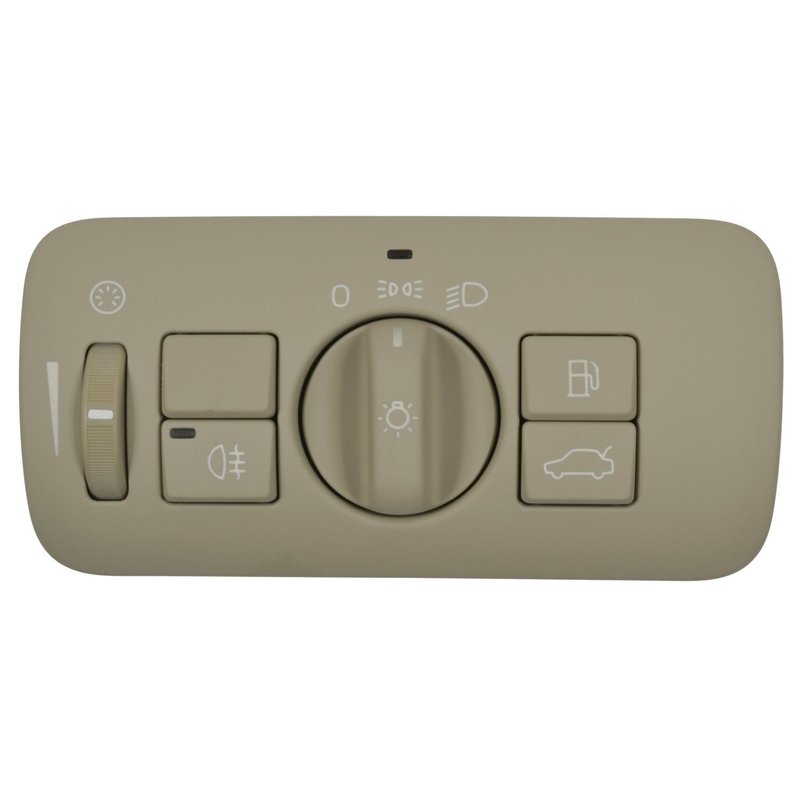

Standard Ignition HLS-1598 Fuel Filler Door Switch

Overview of Standard Ignition Fuel Filler Door Switch HLS-1598

The Standard Ignition Fuel Filler Door Switch HLS-1598 is designed for reliable operation in select Volvo models. This fuel filler door switch ensures proper control of the fuel door mechanism, maintaining vehicle security and functionality.

• Terminal Quantity: 6 male pin terminals
• Connector Gender: Female with one rectangular connector
• Attachment Method: Direct snap fit for secure installation
• Color/Finish: Tan plastic housing with a brown knob
• Voltage: 12 volts compatible with vehicle electrical systems

Detailed Product Description

The HLS-1598 fuel filler door switch from Standard Ignition features a durable plastic finish in tan, designed to blend with the vehicle’s interior components. It includes six male pin terminals and a single female rectangular connector, facilitating a straightforward electrical connection. The direct snap fit attachment method allows for easy installation without additional hardware. This switch operates at 12 volts, matching the electrical requirements of Volvo S60, S80, V70, and XC70 models. The brown knob provides a tactile interface for manual operation or sensor activation depending on the vehicle’s design.

Compatible Volvo Models and Applications

This fuel filler door switch is compatible with the following Volvo vehicles:

• Volvo S60
• Volvo S80
• Volvo V70
• Volvo XC70

It is specifically engineered to replace the original fuel filler door switch, ensuring proper function of the fuel door locking mechanism and electrical signaling.

Common Issues Addressed by This Fuel Filler Door Switch

• Fuel door not unlocking or opening properly
• Intermittent electrical connection to the fuel door actuator
• Faulty switch causing dashboard warning lights related to the fuel door
• Wear or damage to original switch terminals or connectors
• Corrosion or failure in the fuel filler door electrical circuit

Installation Notes and Tips

• Ensure vehicle ignition is off and battery disconnected before installation
• Use the direct snap fit method to secure the switch without forcing connectors
• Verify the connector orientation matches the rectangular female connector on the vehicle wiring harness
• Check for proper terminal engagement to avoid loose electrical connections
• Test the fuel filler door operation after installation to confirm functionality

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The HLS-1598 fuel filler door switch undergoes quality control testing to ensure reliable performance in Volvo S60, S80, V70, and XC70 models. Warranty coverage details should be confirmed with the product documentation or distributor, typically including protection against manufacturing defects.
