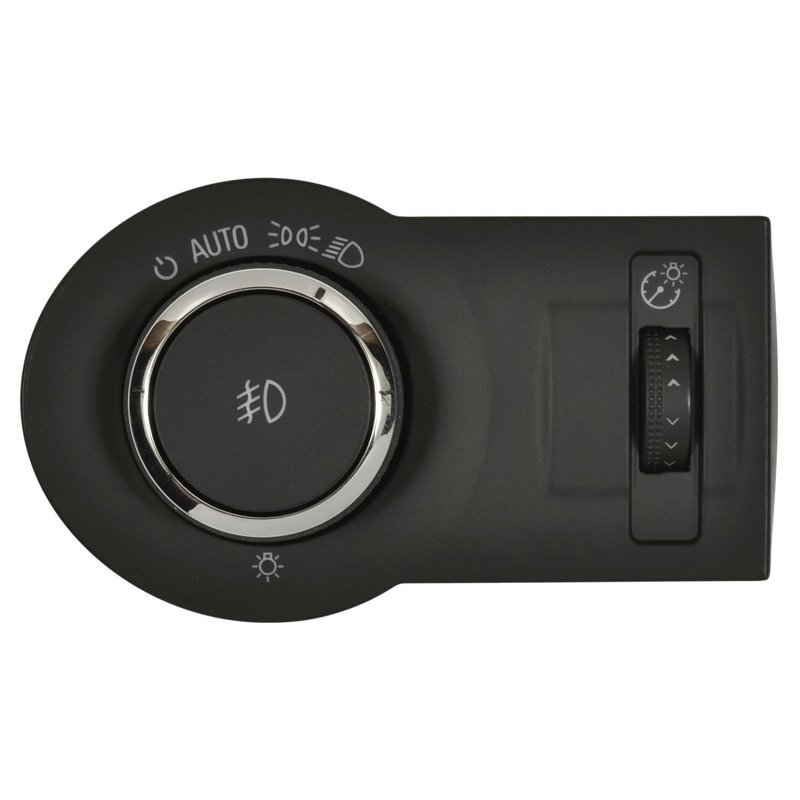

Standard Ignition HLS-1609 Instrument Panel Dimmer Switch

Overview of Standard Ignition Instrument Panel Dimmer Switch

The Standard Ignition HLS-1609 instrument panel dimmer switch is designed specifically for Chevrolet Camaro models. This switch provides reliable control over your dashboard lighting, ensuring optimal visibility and comfort while driving at night or in low-light conditions.

• Direct snap fit attachment method for easy installation
• Durable black and silver plastic finish with a black knob
• Female rectangular connector with one connector quantity
• Seven male pin terminals for secure electrical connections
• Operates on standard 12-volt electrical systems

Detailed Product Description

The HLS-1609 instrument panel dimmer switch from Standard Ignition is engineered to meet the electrical and lighting needs of Chevrolet Camaro vehicles. Featuring a direct snap fit attachment method, this switch installs quickly without the need for additional hardware. The black and silver plastic finish complements the interior aesthetics, while the black knob provides a tactile and ergonomic interface for adjusting instrument panel brightness.

Equipped with a female rectangular connector and seven male pin terminals, this switch ensures a secure and reliable electrical connection within the vehicle's lighting circuit. Designed for 12-volt systems, it integrates seamlessly with the Camaro's existing wiring harness, maintaining factory specifications and performance.

Common Applications and Issues Addressed

• Restores dimmer functionality for instrument panel lighting
• Resolves flickering or non-responsive dashboard lights
• Replaces worn or damaged dimmer switches in Chevrolet Camaro
• Improves visibility and driver comfort during night driving
• Ensures consistent voltage regulation to instrument panel lights

Installation Notes and Tips

• Designed for direct snap fit installation; no additional fasteners required
• Disconnect the vehicle battery before installation to prevent electrical shorts
• Verify connector orientation and terminal alignment before securing the switch
• Consult the Chevrolet Camaro service manual for detailed wiring diagrams
• Test the dimmer switch operation before reassembling the dashboard

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The HLS-1609 instrument panel dimmer switch undergoes rigorous quality control to ensure durability and reliable performance in Chevrolet Camaro vehicles. Warranty coverage details should be confirmed with the product documentation or authorized distributors.
