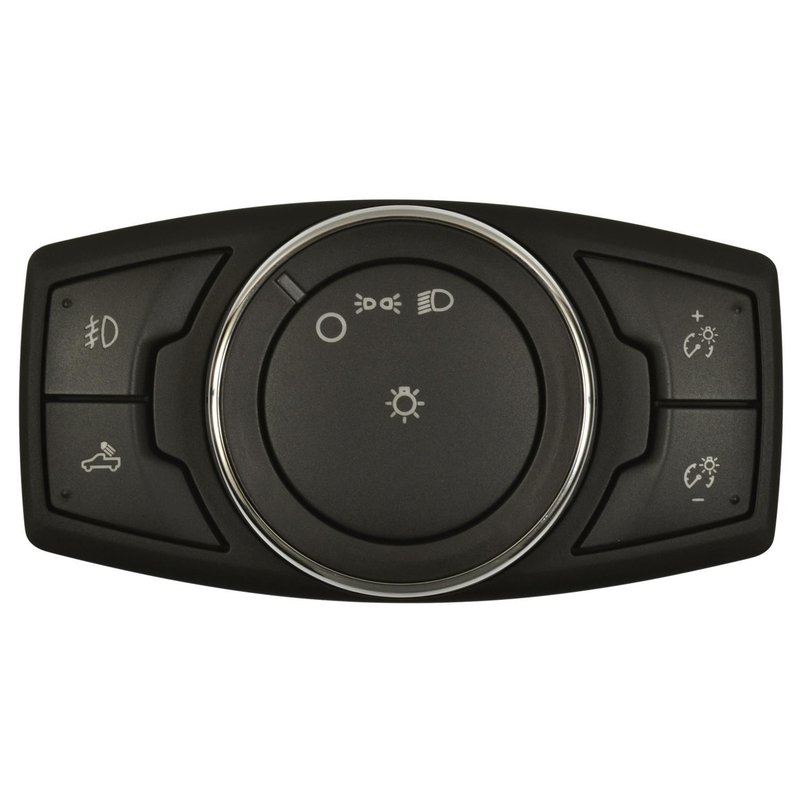

Standard Ignition HLS1741 Instrument Panel Dimmer Switch

Reliable Instrument Panel Dimmer Switch for Ford F-150

The Standard Ignition HLS1741 instrument panel dimmer switch is designed to provide consistent control over your Ford F-150's dashboard lighting. Engineered for durability and precise fitment, this switch ensures smooth dimming functionality for your vehicle's instrument panel.

Key Features of the Standard Ignition HLS1741 Dimmer Switch

• Push-on attachment method for secure and straightforward installation
• Black plastic finish that blends seamlessly with the vehicle interior
• Single female connector with 12 male pin terminals for reliable electrical connections
• Operates on standard 12-volt electrical systems
• Compatible specifically with Ford F-150 models

Detailed Product Description

The Standard Ignition HLS1741 instrument panel dimmer switch is crafted with a durable black plastic housing and features a push-on attachment method, allowing for a firm and easy connection within the Ford F-150's dashboard assembly. It includes one female connector and twelve male pin terminals, designed to interface precisely with the vehicle's wiring harness. Operating at 12 volts, this switch controls the brightness of the instrument panel lighting, enabling drivers to adjust visibility according to ambient lighting conditions. The pin-type terminals ensure stable electrical contact, reducing the risk of intermittent dimming or failure.

Common Applications and Issues Addressed

• Restores dimmer functionality when instrument panel lights fail to adjust brightness
• Replaces worn or damaged dimmer switches causing flickering or inconsistent lighting
• Solves electrical connection problems related to faulty terminal contacts
• Improves dashboard visibility during night driving conditions
• Ensures proper integration with Ford F-150 electrical systems

Installation Notes and Tips

Installation of the Standard Ignition HLS1741 dimmer switch requires accessing the instrument panel area of the Ford F-150. The push-on attachment method simplifies securing the switch in place without additional hardware. Ensure the vehicle's battery is disconnected before installation to prevent electrical shorts. Verify the connector orientation and terminal alignment to avoid damage during connection. Testing the dimmer function after installation is recommended to confirm proper operation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and fitment. The HLS1741 dimmer switch undergoes quality control inspections to maintain consistent standards. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary.
