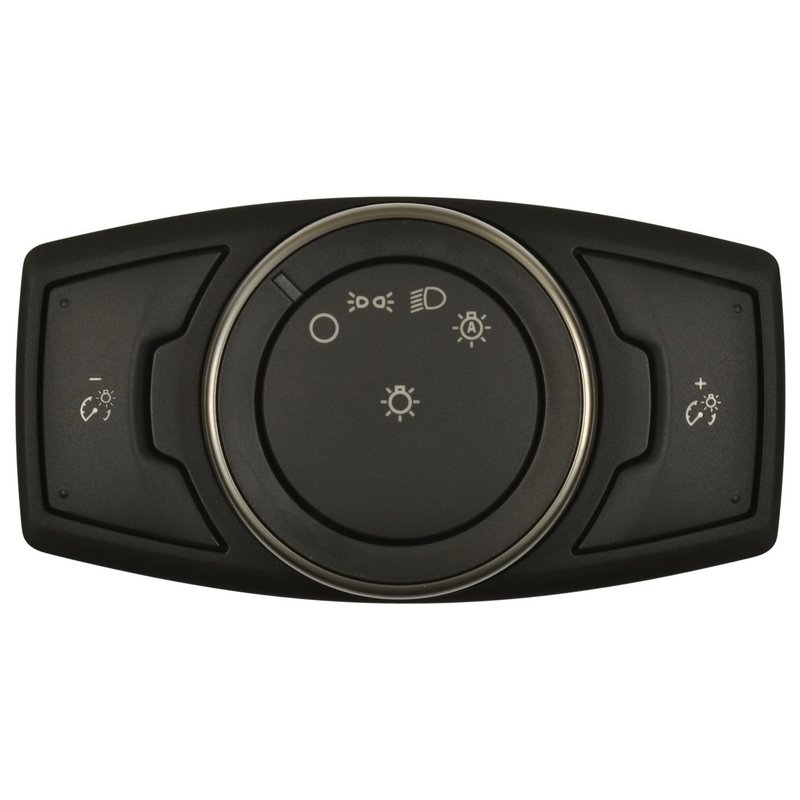

Standard Ignition HLS1743 Instrument Panel Dimmer Switch

Overview of Standard Ignition Instrument Panel Dimmer Switch

The Standard Ignition HLS1743 instrument panel dimmer switch is designed specifically for Ford Mustang models. This 12-volt switch features a durable plastic finish and a push-on attachment method, ensuring reliable operation and easy installation in your vehicle's electrical system.

• Compatible with Ford Mustang instrument panel lighting systems
• Push-on attachment method for secure and straightforward installation
• Black plastic finish for durability and corrosion resistance
• Single female connector with 12 male pin terminals
• Operates on standard 12-volt electrical systems

Product Details and Specifications

The HLS1743 dimmer switch from Standard Ignition is engineered to meet the electrical requirements of Ford Mustang instrument panels. It features a single female connector designed to interface with the vehicle's wiring harness, providing a reliable connection through 12 male pin terminals. The black plastic finish offers protection against wear and environmental factors, while the push-on attachment method simplifies the replacement process. This switch is intended for 12-volt systems, matching the standard voltage of Mustang electrical components.

Applications and Problem Solving

This instrument panel dimmer switch is used to control the brightness of dashboard lighting in Ford Mustang vehicles. It addresses several common issues, including:

• Flickering or inconsistent instrument panel lighting
• Non-responsive dimmer controls
• Damaged or worn switch terminals causing poor electrical contact
• Difficulty adjusting dashboard light intensity
• Replacement of faulty or broken dimmer switches in Mustang models

Installation Notes and Tips

Installation of the Standard Ignition HLS1743 dimmer switch is straightforward due to its push-on attachment method. When replacing the switch, ensure the vehicle's battery is disconnected to prevent electrical shorts. Align the female connector properly with the vehicle wiring harness and press firmly until the switch is securely attached. Verify that all 12 male pin terminals are fully engaged to maintain proper electrical contact. After installation, test the dimmer function to confirm correct operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The HLS1743 dimmer switch undergoes quality control testing to ensure reliable performance in Ford Mustang vehicles. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship, providing confidence in the product's durability and longevity.
