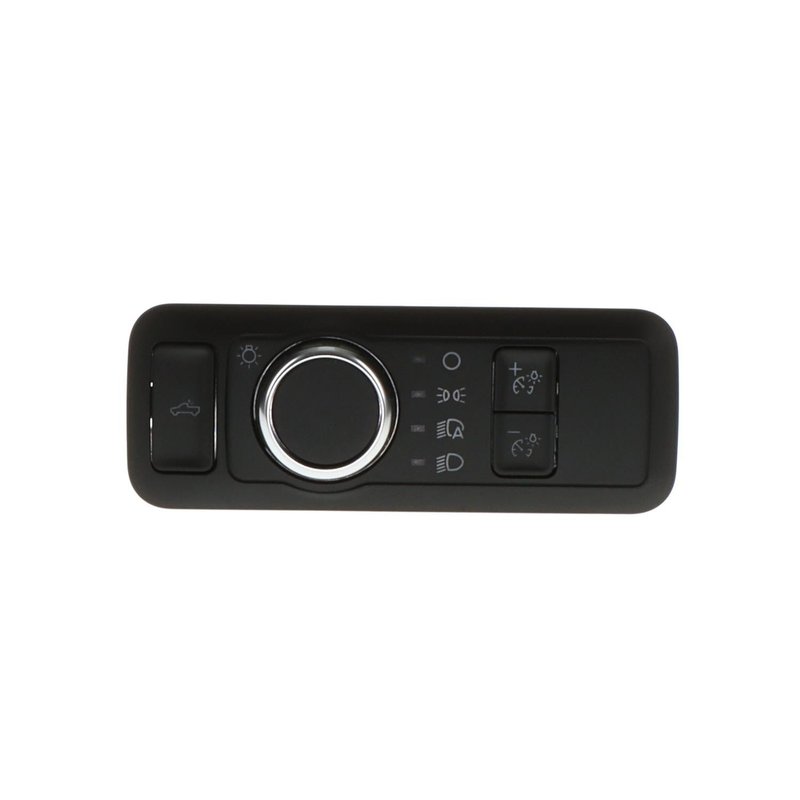

Standard Ignition HLS1796 Headlight Switch
| Brand | Standard Ignition HLS1796 |
|---|---|
| Terminal Quantity | 16 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Attachment Method | Snap fit |
| Color/Finish | Black, chrome |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Finish | Plastic |
| Functions | Switch |
| Switch Material | Plastic |
| Terminal Type | Pin |
| Fits | Ford · 17 vehicles |
Snap-fit design. Installs securely with a single connector and pin terminals.
Switch function. Provides reliable control for headlight operation.
Black, chrome finish. Clean plastic construction with a refined look.
Cross-references HL7821, HLSB10410 and ML3Z11654AA for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Headlight Switch for Ford Trucks and EVs
Standard Ignition HLS1796 is a replacement headlight switch built for direct-fit service on select Ford trucks and the Ford F-150 Lightning. It uses a 16-terminal layout with a female connector, male pin terminals, and a snap-fit attachment method for a clean OE-style installation.
Key Features
- Headlight switch replacement for lighting control service
- 16 terminals with one rectangular female connector
- Male pin terminals for secure electrical contact
- Snap-fit attachment method
- Black and chrome finish with plastic switch construction
- Compatible with 2021-2025 Ford F-150, 2022-2024 Ford F-150 Lightning, 2023-2024 Ford F-250 Super Duty, and 2023-2024 Ford F-350 Super Duty
Detailed Description
Standard Ignition HLS1796 is a headlight switch designed for vehicles that use a rectangular single-connector layout and pin-style terminals. The plastic switch body and black/chrome finish match the functional requirements of modern interior lighting controls while supporting direct replacement service on Ford F-150, Ford F-150 Lightning, Ford F-250 Super Duty, and Ford F-350 Super Duty applications. This part cross-references Monroe Shocks & Struts (e.g., HL7821, HLSB10410) for the same application.
What It Helps Fix
- Headlights that do not switch on or off correctly
- Intermittent lighting control operation
- Worn or damaged dash-mounted switch contacts
- Broken connector engagement at the switch
- Lighting control issues on Ford F-150 and Super Duty trucks
Installation Notes and Tips
Verify connector shape, terminal count, and attachment style before installation. Confirm vehicle application by year and model: Fits 2021-2025 Ford F-150, N/A; Fits 2022-2024 Ford F-150 Lightning, N/A; Fits 2023-2024 Ford F-250 Super Duty, N/A; Fits 2023-2024 Ford F-350 Super Duty, N/A. Compare the original switch layout to HLS1796 to ensure the connector and terminal configuration match the vehicle harness.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical and ignition service parts. HLS1796 is built to meet the fitment and connector requirements listed for the specified Ford applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2025 | Ford | F-150 | — | — | — |
| 2024 | Ford | F-150 | — | — | — |
| 2024 | Ford | F-150 Lightning | — | — | — |
| 2024 | Ford | F-250 Super Duty | — | — | — |
| 2024 | Ford | F-350 Super Duty | — | — | — |
| 2024 | Ford | Maverick | 2.0L | L4 | — |
| 2023 | Ford | F-150 | — | — | — |
| 2023 | Ford | F-150 Lightning | — | — | — |
| 2023 | Ford | F-250 Super Duty | — | — | — |
| 2023 | Ford | F-350 Super Duty | — | — | — |
| 2023 | Ford | F-450 Super Duty | — | — | — |
| 2023 | Ford | F-550 Super Duty | — | — | — |
| 2023 | Ford | Maverick | 2.0L | L4 | — |
| 2022 | Ford | F-150 | — | — | — |
| 2022 | Ford | F-150 Lightning | — | — | — |
| 2022 | Ford | Maverick | 2.0L | L4 | — |
| 2021 | Ford | F-150 | — | — | — |
