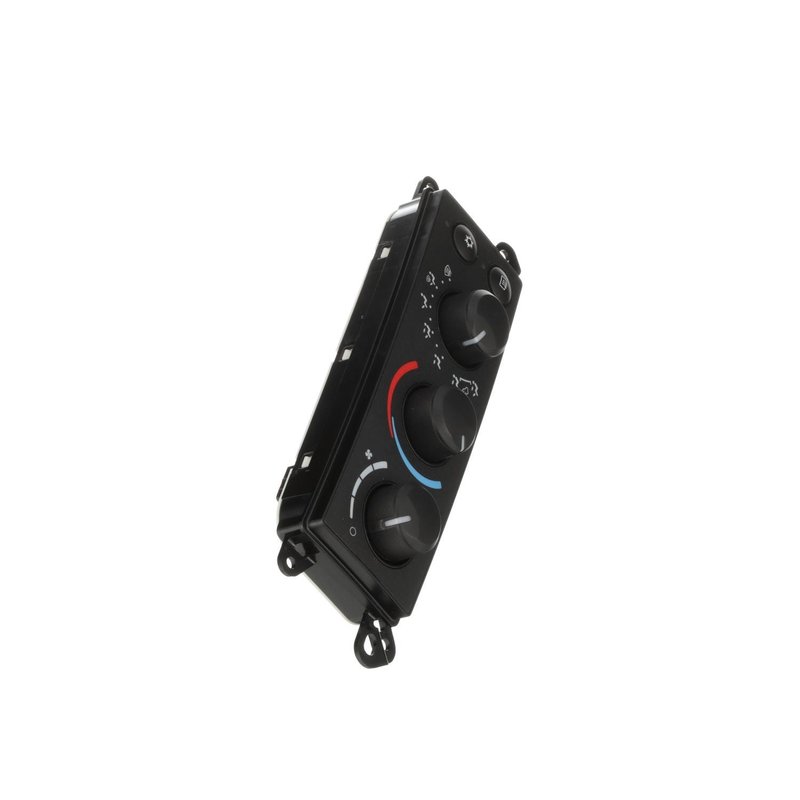

Standard Ignition HS-363 HVAC Temperature Control Panel

Overview of Standard Ignition HVAC Temperature Control Panel HS-363

The Standard Ignition HS-363 HVAC Temperature Control Panel is designed for precise climate control in select Dodge and Mitsubishi vehicles. This black and white plastic switch panel ensures reliable operation of your vehicle's heating and cooling system.

• Color: Black and white for clear visibility
• Connector Gender: Female connectors for secure wiring
• Finish: Durable plastic construction
• Functions: Switch operation for HVAC temperature control
• Terminal Gender: Male terminals for proper electrical connection
• Terminal Quantity: 13 terminals to support multiple functions
• Terminal Type: Combination of blade and pin terminals

Detailed Product Description

The Standard Ignition HS-363 HVAC Temperature Control Panel is engineered to replace the original temperature control switch in the instrument panel of compatible vehicles. Featuring a plastic finish in black and white, this panel integrates female connectors and 13 male terminals with blade and pin types to ensure a secure and reliable electrical connection. The switch function allows for smooth adjustment of the HVAC system, maintaining optimal cabin comfort. This part is specifically compatible with Dodge Dakota, Dodge Ram 1500, Ram 2500, Ram 3500, and Mitsubishi Raider models, providing a direct fit and function replacement.

Common Applications and Issues Addressed

• Restores HVAC temperature control functionality in Dodge Dakota and Ram trucks
• Replaces faulty or unresponsive temperature control switches
• Solves issues with inconsistent cabin temperature regulation
• Addresses electrical connection problems due to worn terminals
• Improves switch responsiveness and durability in Mitsubishi Raider vehicles

Installation Notes and Tips

When installing the Standard Ignition HS-363 HVAC Temperature Control Panel, ensure the vehicle's battery is disconnected to prevent electrical shorts. Carefully disconnect the female connectors from the old panel and verify the 13 male terminals align correctly with the wiring harness. Avoid forcing connectors to prevent damage to terminals. Proper alignment of blade and pin terminals is essential for secure electrical contact and optimal switch performance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The HS-363 HVAC Temperature Control Panel undergoes rigorous quality checks to maintain consistent standards. Please refer to Standard Ignition's warranty policy for specific coverage details.
