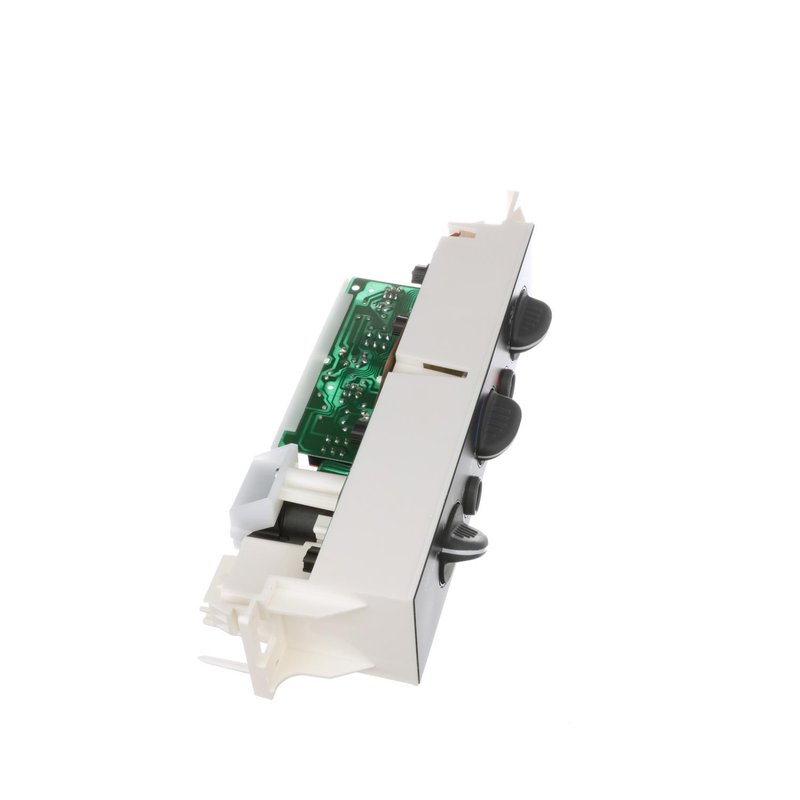

Standard Ignition HS-505 HVAC Blower Motor Switch

Reliable HVAC Blower Motor Switch for Chevrolet and GMC Trucks

The Standard Ignition HS-505 HVAC blower motor switch is designed to restore proper climate control functionality in select Chevrolet and GMC trucks. Engineered as a combination switch with a female connector and male blade terminals, this switch ensures precise operation of your vehicle's blower motor system.

• Combination switch functionality for efficient HVAC control
• Female connector gender for secure wiring connections
• Seven male blade terminals for reliable electrical contact
• Compatible with Chevrolet and GMC C1500, C2500, C3500, K1500, K2500, and K3500 models
• Standard Ignition quality and durability

Product Details and Specifications

The HS-505 blower motor switch from Standard Ignition features a combination switch design that integrates multiple control functions into a single unit. It includes a female connector interface and seven male blade terminals, providing a robust and secure electrical connection. The blade terminal type is commonly used in automotive HVAC systems for its ease of installation and dependable contact. This switch is specifically engineered to fit Chevrolet and GMC full-size pickup trucks, including the C1500, C2500, C3500, K1500, K2500, and K3500 models, ensuring compatibility with factory wiring harnesses and HVAC components.

Common Applications and Problem Resolution

• Restores blower motor control in Chevrolet and GMC C/K series trucks
• Resolves issues with blower motor not turning on or operating at incorrect speeds
• Fixes intermittent or non-responsive HVAC blower switch problems
• Addresses electrical connection failures due to worn or damaged terminals
• Improves overall HVAC system reliability and driver comfort

Installation Notes and Tips

When installing the HS-505 blower motor switch, ensure the vehicle's battery is disconnected to prevent electrical shorts. Verify the connector gender and terminal type match the existing wiring harness. The seven male blade terminals should align with the corresponding female connectors on the vehicle side. Properly seat the switch to avoid loose connections that could cause intermittent blower motor operation. Consult the vehicle’s service manual for detailed removal and installation procedures specific to Chevrolet and GMC C/K series trucks.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The HS-505 blower motor switch undergoes rigorous quality control testing to ensure consistent operation within the HVAC system. While specific warranty details are not provided here, Standard Ignition typically offers coverage against manufacturing defects. Refer to the product packaging or Standard Ignition’s official documentation for exact warranty terms.
