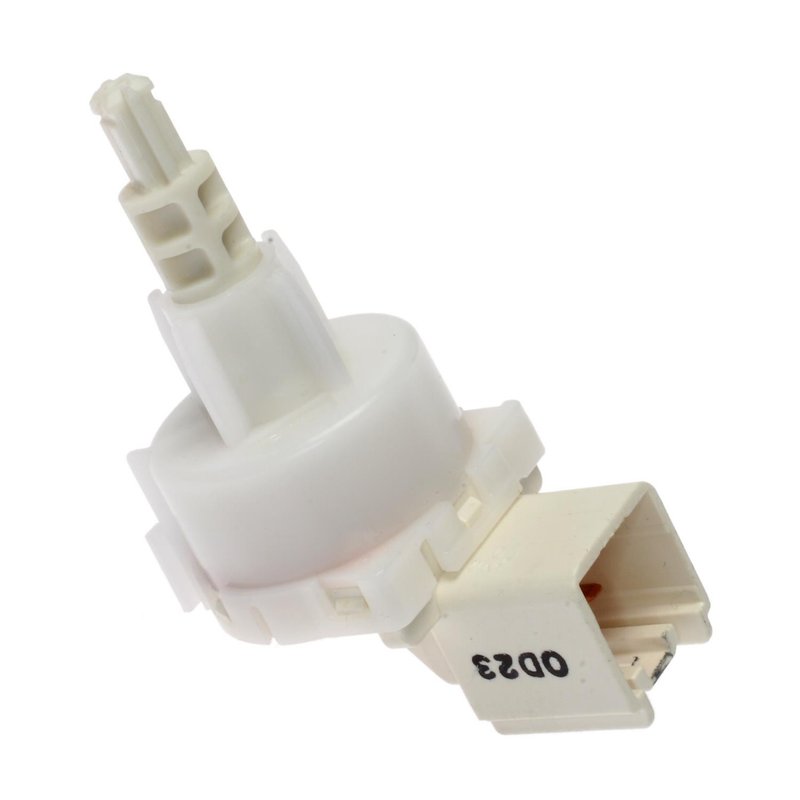

Standard Ignition HS-522 HVAC Blower Motor Switch

Overview of Standard Ignition HVAC Blower Motor Switch HS-522

The Standard Ignition HS-522 HVAC blower motor switch is designed specifically for Mazda 3 models, providing reliable control over your vehicle's heating and cooling system. This white, toggle-style switch offers a straightforward plug-in attachment method for ease of replacement.

• Compatible with Mazda 3 vehicles
• Toggle switch actuation style for precise control
• Plug-in attachment method simplifies installation
• Durable plastic housing with a white finish
• Square-shaped switch with a single female connector
• Operates on 12 volts with five male blade terminals

Detailed Product Description

The Standard Ignition HS-522 HVAC blower motor switch is engineered to meet the specific electrical and mechanical requirements of Mazda 3 models. Featuring a compact design with an overall width of approximately 19.3 mm (0.76 inches), this switch fits seamlessly into the vehicle's HVAC control panel. The toggle actuation style allows for easy adjustment of the blower motor speed, while the square shape and single female connector ensure a secure and stable connection. The switch includes five male blade terminals, supporting reliable electrical contact within the 12-volt system. Constructed with a durable plastic housing, this component is built to withstand the typical operating conditions inside the vehicle's dashboard.

Common Applications and Issues Addressed

• Replacement for faulty or unresponsive blower motor switches in Mazda 3
• Resolves intermittent blower motor operation or failure to turn on
• Fixes issues with blower speed control malfunction
• Restores proper HVAC system functionality
• Addresses electrical connection problems related to worn terminals

Installation Notes and Tips

The HS-522 blower motor switch uses a plug-in attachment method, making it compatible with the existing wiring harness in Mazda 3 vehicles. No wiring harness or mounting brackets are included, so ensure the original components are intact before installation. The switch features a single female connector with a square shape, designed to mate with the vehicle’s male blade terminals. Care should be taken to align the connector properly to avoid damage. Since no bulbs or hardware are included, retain any original mounting hardware during replacement.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. While specific warranty details for the HS-522 blower motor switch are not provided here, Standard Ignition typically offers coverage against defects in materials and workmanship. For precise warranty information, consult the product documentation or the vehicle service provider.
