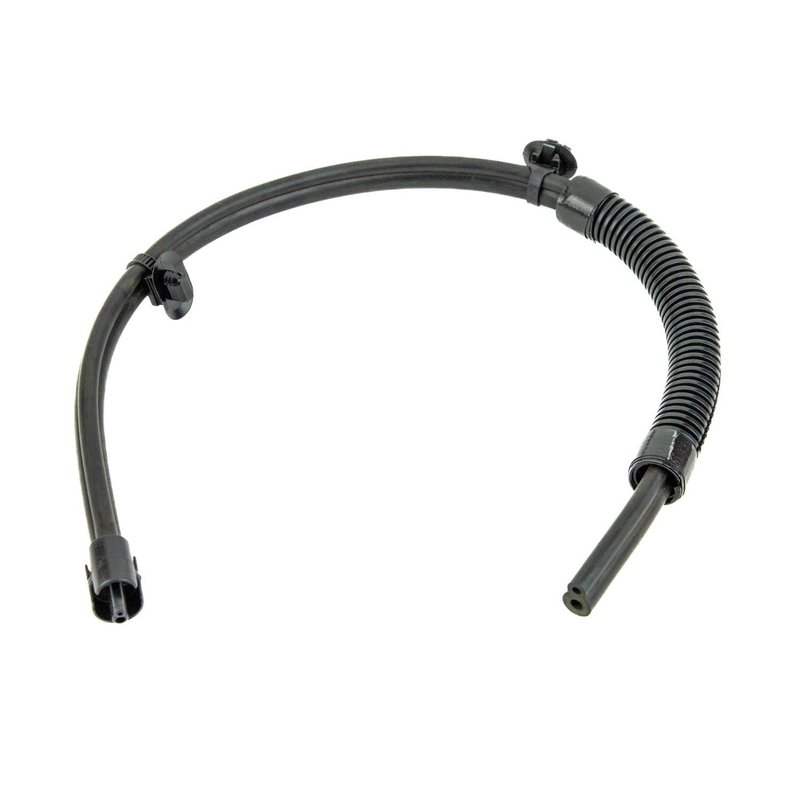

Standard Ignition HVH009 4WD Hub Locking Actuator Vacuum Hose
| Brand | Standard Ignition HVH009 |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 2 |
| Connector Shape | Round |
| Contents | Hose |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Fits | Ford and Lincoln · 14 vehicles |
Direct hose replacement. Connects with two round female ends for a straightforward install.
Vacuum hose. Built for hub locking actuator vacuum routing.
Cross-references FL3Z3C125A, FWH109 and HLH109 for the same application. See all 4.
4WD Hub Locking Actuator Vacuum Hose for Ford and Lincoln
Standard Ignition HVH009 is a 4WD hub locking actuator vacuum hose used in the front hub vacuum control system. It connects with female round connectors and male terminals to support vacuum routing from the actuator to the hub on select Ford and Lincoln trucks and SUVs.
Key Features
- 4WD hub locking actuator vacuum hose for vacuum-operated hub systems
- Female connector gender with round connector shape
- Male terminal gender for secure system connection
- Direct replacement style for service on the hub vacuum line
- Standard Ignition HVH009 for targeted driveline repair
Detailed Description
Standard Ignition HVH009 is built for vehicles that use a vacuum-operated front hub locking system. It is used to route vacuum to the hub actuator, helping maintain the connection needed for 4WD engagement on select applications. This part cross-references Ford OE-style service numbers such as FL3Z3C125A for the same application. Compatible With 2015-2020 Ford F-150, To Hub; 2018-2021 Ford Expedition, To Hub; and 2018-2021 Lincoln Navigator, To Hub. The Standard Ignition HVH009 part number is also a useful reference when matching the correct hose for these driveline repairs.
What It Helps Address
- Vacuum loss at the front hub actuator line
- 4WD hub engagement problems caused by a damaged hose
- Cracked, brittle, or leaking vacuum routing in the hub system
- Intermittent front hub locking on Ford F-150, Expedition, or Lincoln Navigator
- Service replacement for a worn vacuum hose in the driveline system
Installation Notes and Tips
Verify the connector style, terminal configuration, and routing path before installation. Match the hose to the vehicle’s hub-side vacuum connection and inspect adjacent vacuum lines, fittings, and seals for wear or leakage. Confirm fitment by year, make, and model before ordering Standard Ignition HVH009.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical and driveline service parts. HVH009 is built to support the specified vacuum hose application for the listed Ford and Lincoln vehicles.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2021 | Ford | Expedition | To Hub |
| 2021 | Lincoln | Navigator | To Hub |
| 2020 | Ford | Expedition | To Hub |
| 2020 | Ford | F-150 | To Hub |
| 2020 | Lincoln | Navigator | To Hub |
| 2019 | Ford | Expedition | To Hub |
| 2019 | Ford | F-150 | To Hub |
| 2019 | Lincoln | Navigator | To Hub |
| 2018 | Ford | Expedition | To Hub |
| 2018 | Ford | F-150 | To Hub |
| 2018 | Lincoln | Navigator | To Hub |
| 2017 | Ford | F-150 | To Hub |
| 2016 | Ford | F-150 | To Hub |
| 2015 | Ford | F-150 | To Hub |
