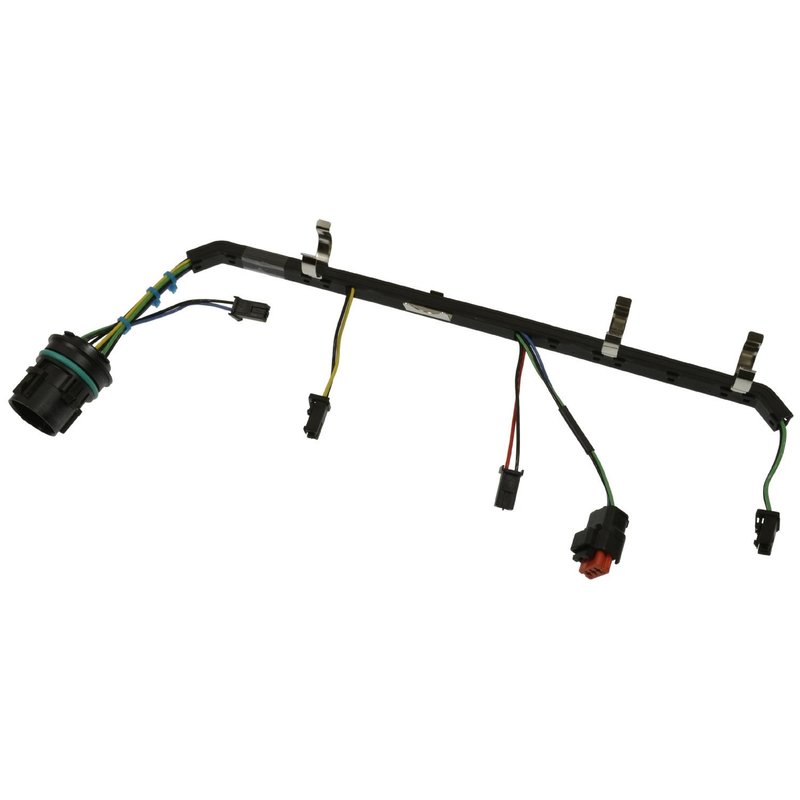

Standard Ignition IFH8 Fuel Injection Harness

Overview of Standard Ignition Fuel Injection Harness IFH8

The Standard Ignition IFH8 fuel injection harness is designed specifically for the right side injector system on Ford F-250 Super Duty and F-350 Super Duty models. This harness supports four injectors and features a combination of male and female terminals to ensure proper connectivity and reliable fuel delivery.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty
• Right side injector harness covering 4 injectors per kit
• Terminal gender configuration: male and female terminals
• Terminal quantity includes 11 pins and multiple blade terminals
• Terminal types: pin and blade connectors for secure fitment

Detailed Product Description

The IFH8 fuel injection harness by Standard Ignition is engineered to meet the specific wiring requirements of the right side fuel injectors on Ford Super Duty trucks. It includes terminals with a mix of male and female connectors—specifically one male and five female terminals—to accommodate the vehicle’s injector wiring layout. The harness features a total of 22 terminals, including 11 pin-type and 11 blade-type terminals, ensuring a precise and secure electrical connection. This harness supports four injectors per kit, making it suitable for the right side injector bank on the F-250 and F-350 Super Duty models.

Common Applications and Issues Addressed

• Replacement of damaged or worn right side fuel injection wiring harness
• Resolving injector misfires caused by faulty wiring connections
• Fixing intermittent fuel injector electrical issues in Ford Super Duty trucks
• Restoring proper fuel delivery and engine performance
• Addressing corrosion or terminal damage in the injector harness

Installation Notes and Tips

• Ensure vehicle compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation
• Disconnect the battery prior to harness replacement to prevent electrical shorts
• Carefully match terminal types and genders to the vehicle’s injector connectors
• Inspect connectors for corrosion or damage and clean mating surfaces before installation
• Secure harness routing to avoid contact with hot or moving engine components

Quality Assurance and Warranty

Standard Ignition manufactures the IFH8 fuel injection harness to meet OEM specifications for fit, form, and function. The harness undergoes rigorous quality control to ensure reliable electrical performance and durability under typical operating conditions. While specific warranty details may vary, Standard Ignition products generally include a limited warranty against defects in materials and workmanship.
