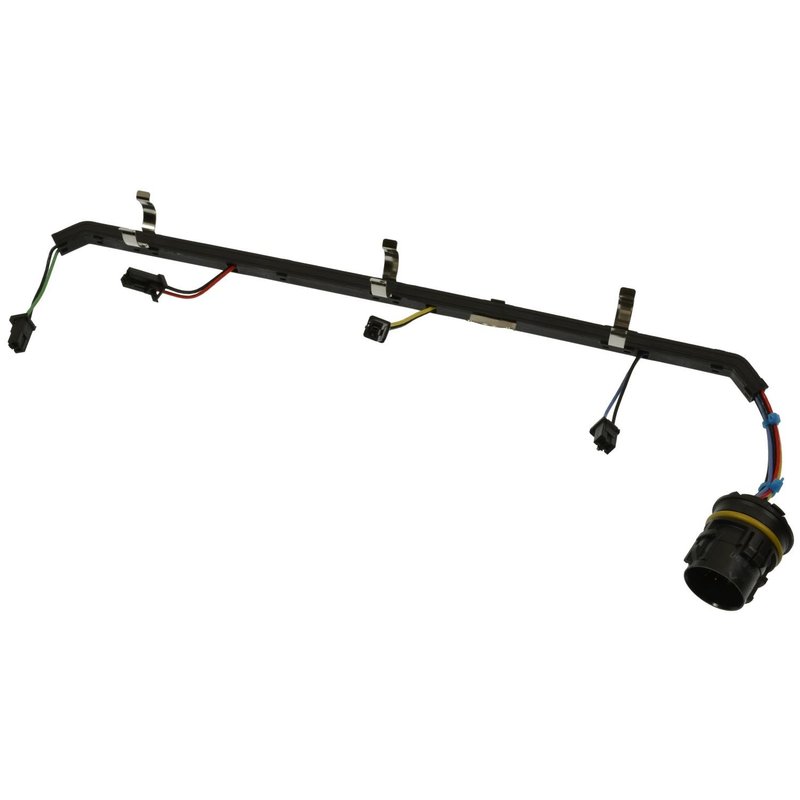

Standard Ignition IFH9 Fuel Injection Harness

Overview of Standard Ignition Fuel Injection Harness IFH9

The Standard Ignition IFH9 fuel injection harness is designed specifically for the left side injector system on Ford F-250 Super Duty and F-350 Super Duty trucks. This harness supports four injectors and features a combination of male and female terminals to ensure reliable electrical connections.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Designed for left side injector harness applications
• Covers 4 fuel injectors per kit
• Includes 11 male and female terminals with pin and blade types
• Part number IFH9 for precise identification and fitment

Detailed Product Features and Specifications

The IFH9 fuel injection harness from Standard Ignition is engineered to meet the electrical demands of the fuel injection system on select Ford Super Duty trucks. It includes terminals with varied gender and types: one pin terminal and multiple blade terminals, totaling 11 terminals across the harness. This configuration ensures secure and accurate connections to the injectors, supporting optimal engine performance. The harness is tailored for the left side injector bank, making it a direct replacement part for the Ford F-250 and F-350 Super Duty models.

Applications and Common Issues Addressed

This fuel injection harness is used to maintain or restore proper electrical connectivity to the fuel injectors on the left side of the engine. It is suitable for addressing issues such as:

• Intermittent or failed injector signals causing engine misfires
• Damaged or corroded wiring affecting fuel delivery
• Electrical shorts or open circuits in the injector harness
• Replacement of worn or broken connectors on the left side injector bank

Installation Notes and Tips

When installing the IFH9 harness, ensure the vehicle is powered off and the battery is disconnected to prevent electrical hazards. Carefully route the harness along the original wiring path to avoid contact with hot or moving engine components. Verify that all male and female terminals are securely connected to their corresponding injectors and connectors. Inspect the harness for any signs of damage before installation to ensure optimal performance.

Quality Assurance and Warranty Information

Standard Ignition manufactures the IFH9 fuel injection harness to meet OEM specifications for fit and function. The part undergoes quality control checks to ensure durability and reliable electrical performance. While specific warranty details may vary, Standard Ignition typically offers coverage against manufacturing defects. Consult the product documentation or manufacturer for exact warranty terms.
