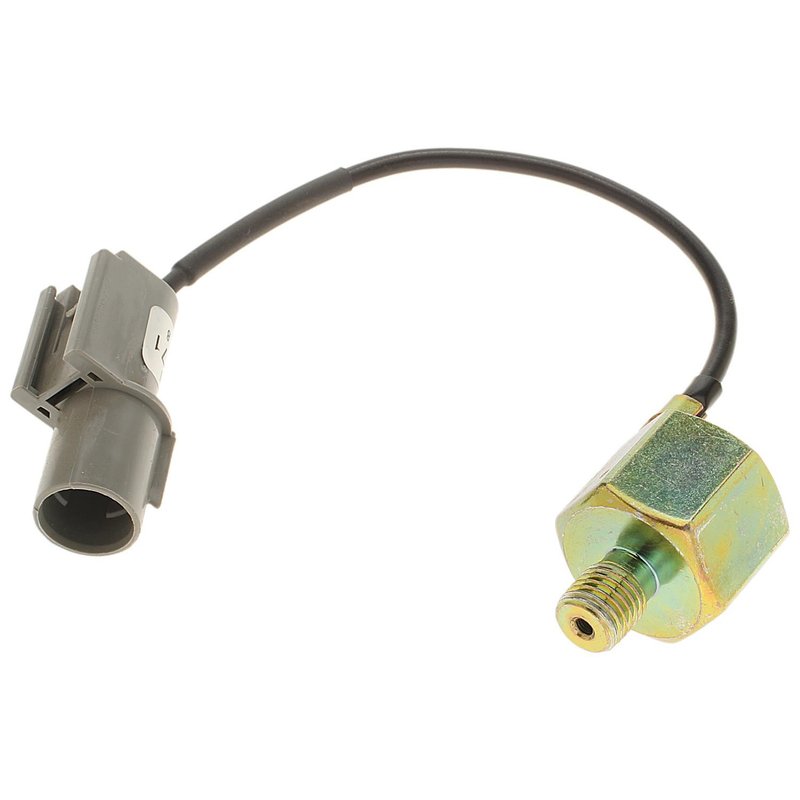

Standard Ignition KS170 Ignition Knock (Detonation) Sensor

Overview of Standard Ignition KS170 Knock Sensor

The Standard Ignition KS170 Ignition Knock (Detonation) Sensor is designed for precise detection of engine knock in select Chevrolet and Suzuki vehicles. This sensor helps maintain optimal engine performance by monitoring detonation and sending accurate signals to the engine control unit.

• Compatible with Chevrolet and Suzuki models including Grand Vitara, Swift, SX4, Tracker, Vitara, and XL-7
• Screw-in mounting type with 10 mm thread size for secure installation
• Equipped with a single round plug-in connector featuring 2 terminals (male blade terminals and female connector gender)
• Terminal type: blade terminals for reliable electrical connection
• Mounting hardware not included

Technical Details and Features

The KS170 knock sensor from Standard Ignition features a screw-in attachment method with a 10 mm thread size, ensuring a firm and vibration-resistant fit in the engine block. It includes one round plug-in connector with two blade terminals, designed with male terminals and a female connector gender to match factory wiring harnesses. This sensor does not come with mounting hardware, so ensure you have the necessary screws for installation. The sensor’s design supports accurate detection of engine detonation, which is critical for maintaining engine timing and preventing damage.

Compatible Vehicles and Applications

This ignition knock sensor is compatible with a range of Chevrolet and Suzuki vehicles, specifically models such as the Chevrolet Tracker and XL-7, and Suzuki Grand Vitara, Swift, SX4, and Vitara. Using the KS170 sensor in these vehicles helps maintain proper engine function by detecting knock and allowing the engine control unit to adjust ignition timing accordingly.

Common Issues Addressed by the KS170 Knock Sensor

• Engine knocking or pinging during acceleration or load
• Reduced engine performance due to improper ignition timing
• Check engine light triggered by knock sensor fault codes
• Increased fuel consumption caused by inefficient combustion
• Potential engine damage from undetected detonation

Installation Notes and Tips

Installation of the Standard Ignition KS170 sensor requires a screw-in mounting with a 10 mm thread size. Since mounting hardware is not included, ensure you have the correct screws before beginning installation. Disconnect the battery before replacing the sensor to avoid electrical shorts. Carefully connect the sensor’s single round plug-in connector, ensuring the male blade terminals align properly with the female connector on the vehicle harness. Torque the sensor to manufacturer specifications to avoid damage or improper sealing.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. While specific warranty details for the KS170 sensor are not provided here, Standard Ignition typically offers limited warranties covering defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
