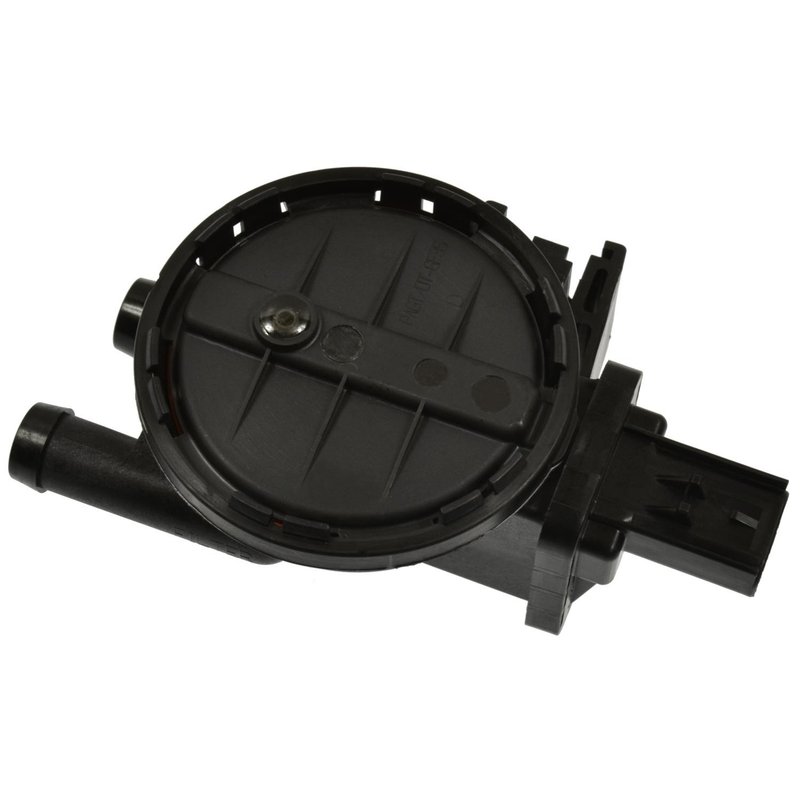

Standard Ignition LDP09 Evaporative Emissions System Leak Detection Pump

Evaporative Emissions Leak Detection Pump

Standard Ignition LDP09 is an evaporative emissions system leak detection pump used to monitor the EVAP system for leaks and pressure loss. It is built with a female connector, one connector cavity, two hose connections, and a 3-blade male terminal layout for direct replacement service on supported Chrysler, Dodge, and Jeep applications.

Fits 2002-2010 Chrysler PT Cruiser, Chrysler Town & Country, Dodge Caravan, Dodge Grand Caravan, Chrysler 300, Chrysler Pacifica, Dodge Charger, Dodge Magnum, Jeep Liberty, Jeep Wrangler, Dodge Neon, Dodge Ram 2500, Dodge Ram 3500, Dodge Dakota, and Dodge Durango applications listed below. Standard Ignition LDP09 is also a direct interchange for several OE-style reference numbers used on the same application.

• Brand: Standard Ignition
• Part number: LDP09
• Evaporative emissions system leak detection pump for EVAP diagnostics
• Female connector with 1 connector cavity
• 2 hose connections with 5/8 in. hose size
• 3 male blade terminals
• Direct-fit replacement for supported Chrysler, Dodge, and Jeep vehicles

Vehicle Fitment

• Fits 2003-2010 Chrysler PT Cruiser, N/A
• Fits 2003-2007 Chrysler Town & Country, N/A
• Fits 2003-2007 Dodge Caravan, N/A
• Fits 2004-2007 Dodge Grand Caravan, N/A
• Fits 2005-2006 Chrysler 300, N/A
• Fits 2004-2006 Chrysler Pacifica, N/A
• Fits 2006 Dodge Charger, N/A
• Fits 2005-2006 Dodge Magnum, N/A
• Fits 2004-2006 Jeep Liberty, N/A
• Fits 2005-2006 Jeep Wrangler, N/A
• Fits 2003-2005 Dodge Neon, N/A
• Fits 2003-2005 Dodge Ram 2500, N/A
• Fits 2003-2005 Dodge Ram 3500, N/A
• Fits 2003-2004 Dodge Dakota, N/A
• Fits 2003 Dodge Durango, N/A
• Fits 2003 Dodge Ram 1500, N/A
• Fits 2002 Dodge Durango, N/A, Next Generation Engine Controller

What It Helps Address

• EVAP leak codes related to pressure loss in the evaporative emissions system
• Check engine light concerns tied to leak detection pump operation
• Failed emissions inspection results caused by EVAP system faults
• Hard-to-trace vapor system leaks in Chrysler, Dodge, and Jeep platforms
• Faulty pump response or electrical connection issues at the leak detection circuit

Installation Notes

Verify connector style, hose size, and terminal layout before installation. This part uses a female connector, two hose ports, and 3 male blade terminals, so matching the original configuration is important for proper EVAP system operation. Confirm vehicle application by year, make, model, and any listed notes such as the 2002 Dodge Durango Next Generation Engine Controller application.

This part cross-references Dorman OE Solutions 310-500 for the same application.

Quality Assurance

Standard Ignition replacement parts are cataloged for direct application matching across supported Chrysler, Dodge, and Jeep EVAP systems. Part number LDP09 is listed with OE-style interchange references for service replacement use.
