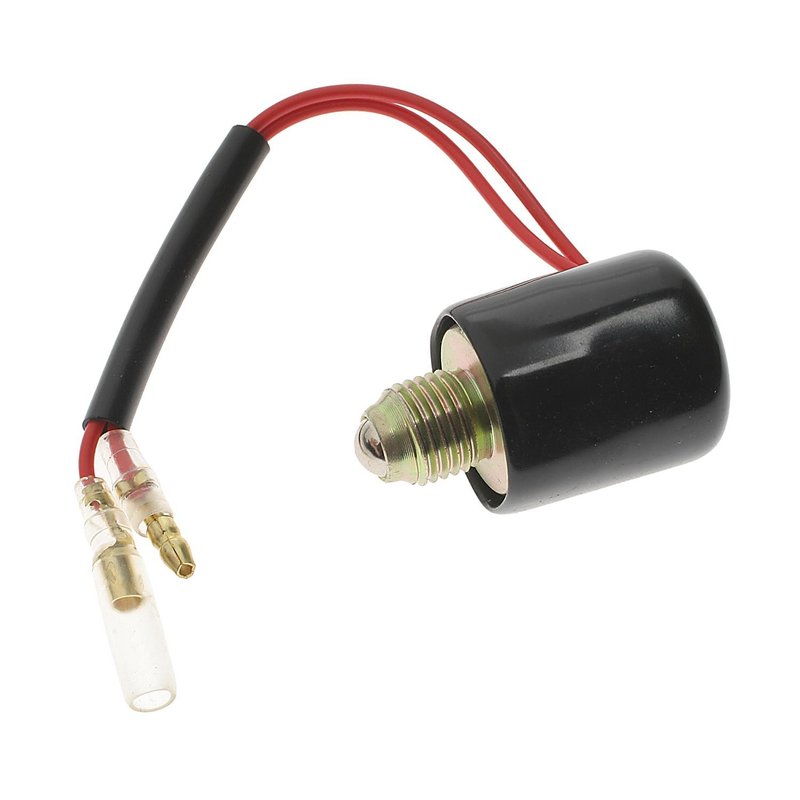

Standard Ignition LS-223 Back Up Light Switch

Standard Ignition LS-223 Back Up Light Switch

The Standard Ignition LS-223 back up light switch restores reverse-light operation with a direct screw-in design for select Honda, Isuzu, and Chevrolet applications. Built with a metal body, dichromate and rubber finish, and wire-lead/pin terminals, it is a practical replacement for vehicles that need a dependable transmission-mounted reverse switch.

• Back up light switch for reverse lamp circuit control
• Screw-in mounting type for transmission installation
• Metal construction with black and silver finish
• Dichromate and rubber finish for added corrosion resistance
• 2 connector locations with no connector supplied
• Female + male terminal design with wire leads and pins
• Standard Ignition LS-223 replacement part number

Vehicle Fitment

• Fits 1998-2002 Honda Passport, N/A
• Fits 1998-2000 Isuzu Amigo, N/A
• Fits 1989-1994 Isuzu Amigo, N/A
• Fits 1991-1999 Isuzu Rodeo, N/A
• Fits 1981-1995 Isuzu Pickup, N/A
• Fits 1984-1994 Isuzu Trooper, N/A
• Fits 1983-1988 Isuzu Impulse, N/A
• Fits 1981-1984 Isuzu I-Mark, N/A
• Fits 1976-1982 Chevrolet LUV, N/A
• Fits 1975 Chevrolet LUV, N/A, On Transmission

Detailed Description

The LS-223 is a transmission-mounted back up light switch that closes the reverse-light circuit when the vehicle is placed in reverse. It is a direct-fit style replacement for many older Honda Passport, Isuzu Amigo, Rodeo, Pickup, Trooper, Impulse, and I-Mark applications, as well as Chevrolet LUV models. If you are servicing a reverse light concern on a vehicle that uses a screw-in switch with wire-lead and pin terminals, Standard Ignition LS-223 is the correct type of part to verify against the original unit. This part cross-references NS6619 and 18-1640 for the same application.

Common Uses

• Restores inoperative reverse lights
• Addresses intermittent backup lamp operation
• Replaces a leaking or damaged transmission switch
• Corrects reverse-light circuit faults caused by worn internal contacts
• Supports diagnosis when the vehicle does not signal reverse at the lamps

Installation Notes

Install the switch in the transmission location specified for the vehicle and confirm the thread style, connector layout, and terminal type before installation. Because this part uses wire leads and pins with no connector, verify the existing harness connection and routing before final assembly. After installation, test reverse lamp operation with the ignition and transmission in the proper positions.

Quality Assurance

Standard Ignition supplies this back up light switch as an OE-style electrical replacement for select import and compact truck applications. The LS-223 is built with metal construction and a corrosion-resistant finish to support consistent electrical contact in transmission-mounted service.
