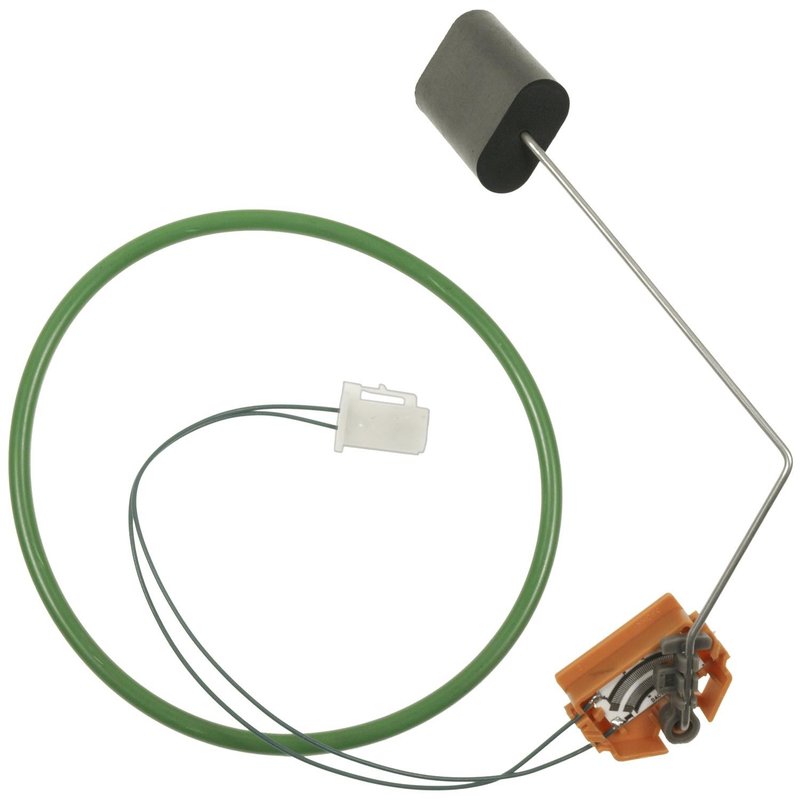

Standard Ignition LSF101 Fuel Level Sensor
| Brand | Standard Ignition LSF101 |
|---|---|
| Connector Gender | Male |
| Connector Type | Plug In |
| Contents | Fluid Level Sensor |
| Terminal Gender | Female |
| Terminal Type | Pin Plug |
| Fits | Chevrolet, GMC, and Isuzu · 11 vehicles |
OE direct replacement. Direct-fit design ensures proper fit, form, and function.
High-quality materials. Built to withstand extreme conditions.
Plug-in connector. Male connector with female pin terminals for easy installation.
Cross-references Delphi FG0516, 74883 and 19177712 for the same application. See all 6.
Fuel Level Sensor for OE-Style Replacement
The Standard Ignition LSF101 fuel level sensor is a direct-fit OE replacement built for accurate fuel level signal delivery and straightforward installation. It is made with high-quality materials to handle demanding operating conditions in the tank environment.
Compatible with 2005-2006 Chevrolet SSR, 2005-2006 Chevrolet Trailblazer EXT, 2005-2006 GMC Envoy XL, 2005 GMC Envoy XUV, and 2005-2006 Isuzu Ascender applications, this fuel level sensor supports reliable replacement service for the original unit.
Key Features
- Direct-fit OE replacement for proper fit, form, and function
- Fuel level sensor for air and fuel delivery system service
- Male connector with plug-in connection style
- Female terminal design with 2-pin plug terminals
- Built with materials selected for harsh operating conditions
- Standard Ignition LSF101 for targeted vehicle applications
Detailed Description
The Standard Ignition LSF101 is engineered as an OE-style fuel level sensor for vehicles that require a precise replacement part in the fuel tank sending system. Its connector and terminal configuration are designed to match the original electrical interface, helping maintain proper signal transfer to the gauge or control module. This part cross-references Delphi FG0516 for the same application.
Use the LSF101 when servicing fuel level reading concerns on Chevrolet SSR, Trailblazer EXT, GMC Envoy XL, GMC Envoy XUV, and Isuzu Ascender models listed in the fitment data. The part number LSF101 is also commonly searched by buyers looking for a direct replacement fuel level sensor with OE-style fitment.
What It Helps Solve
- Inaccurate fuel gauge readings
- Intermittent or erratic fuel level indication
- Failed fuel level sensor signal output
- Replacement needs after tank module service
- Electrical connection issues at the sensor interface
Installation Notes and Tips
Verify the connector style, terminal count, and vehicle application before installation. Confirm the fuel tank assembly and sender configuration match the listed fitment for Chevrolet SSR, Trailblazer EXT, GMC Envoy XL, GMC Envoy XUV, or Isuzu Ascender models. Clean electrical contacts and inspect the harness connector before connecting the new sensor.
Quality Assurance
Standard Ignition states that this OE replacement is manufactured with complete quality control throughout the production process. The LSF101 is built to support consistent fit and function in the intended applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Chevrolet | SSR | — | — | N/A | — |
| 2006 | Chevrolet | Trailblazer EXT | 4.2L | L6 | N/A | — |
| 2006 | Chevrolet | Trailblazer EXT | 5.3L | V8 | N/A | — |
| 2006 | GMC | Envoy XL | — | — | N/A | — |
| 2006 | Isuzu | Ascender | — | — | N/A | — |
| 2005 | Chevrolet | SSR | — | — | N/A | — |
| 2005 | Chevrolet | Trailblazer EXT | 4.2L | L6 | N/A | — |
| 2005 | Chevrolet | Trailblazer EXT | 5.3L | V8 | N/A | — |
| 2005 | GMC | Envoy XL | — | — | N/A | — |
| 2005 | GMC | Envoy XUV | — | — | N/A | — |
| 2005 | Isuzu | Ascender | — | — | N/A | — |
