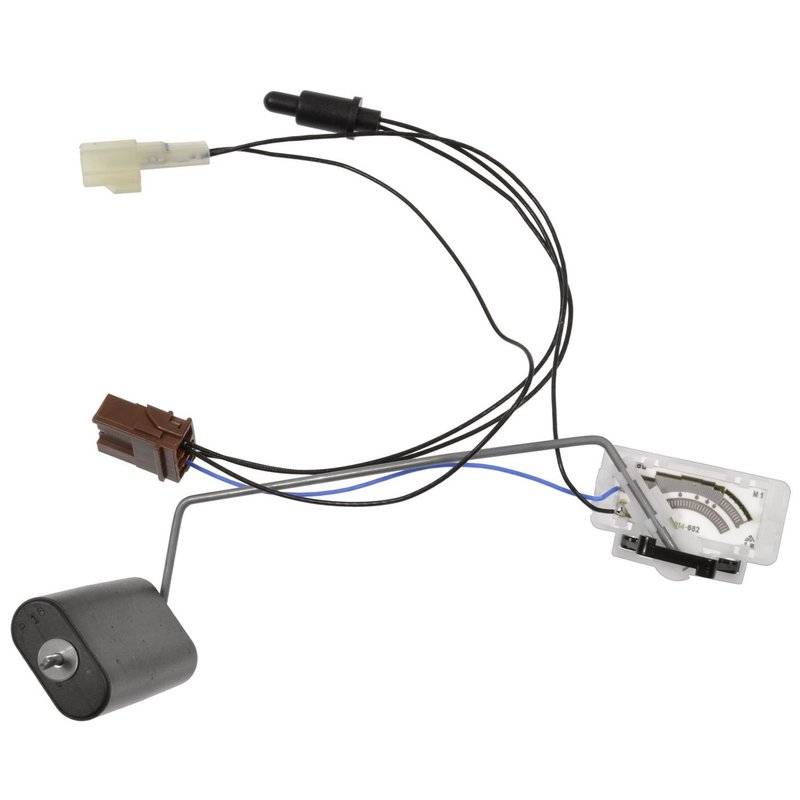

Standard Ignition LSF109 Fuel Level Sensor

Fuel Level Sensor for Nissan Murano

Standard Ignition LSF109 is a direct replacement fuel level sensor built for accurate tank level input and dependable signal transfer. It is compatible with 2003-2010 Nissan Murano applications and includes the sensor with float for service on the fuel delivery system.

• Direct replacement fuel level sensor
• Fits 2003-2010 Nissan Murano
• Plastic construction
• Finger-style sender contact design
• Plug-in connector design with 2 connectors
• Female and male connector/terminal configuration
• Float included
• 4-wire design

Application Details

Standard Ignition LSF109 is engineered for Nissan Murano fuel tank level monitoring where the sender signal is used by the gauge or control module to report fuel quantity. This part number, LSF109, cross-references Standard Ignition SU15826 for the same application. It also matches interchange references such as 5S14421 and 25060CA00A. For 2003-2010 Nissan Murano service, LSF109 provides a direct replacement option that follows the original connector and terminal layout.

What This Part Helps Resolve

• Inaccurate fuel gauge readings
• Fuel level readings that stay full or empty
• Intermittent sender signal loss
• Warning lights related to fuel level input
• Hard-to-diagnose tank level reporting issues

Installation Notes

Verify connector shape, terminal style, and wire count against the original unit before installation. This sensor uses a plug-in connection with square and rectangular connector shapes, male and female terminals, and no wiring harness included. The float is included, while gaskets are not included, so reuse or replace sealing components as needed during service. Confirm the vehicle is a 2003-2010 Nissan Murano before ordering.

Quality Assurance

Standard Ignition supplies OE-style replacement electrical and fuel system components, and this LSF109 fuel level sensor is built as a direct replacement for the listed Nissan Murano applications.
