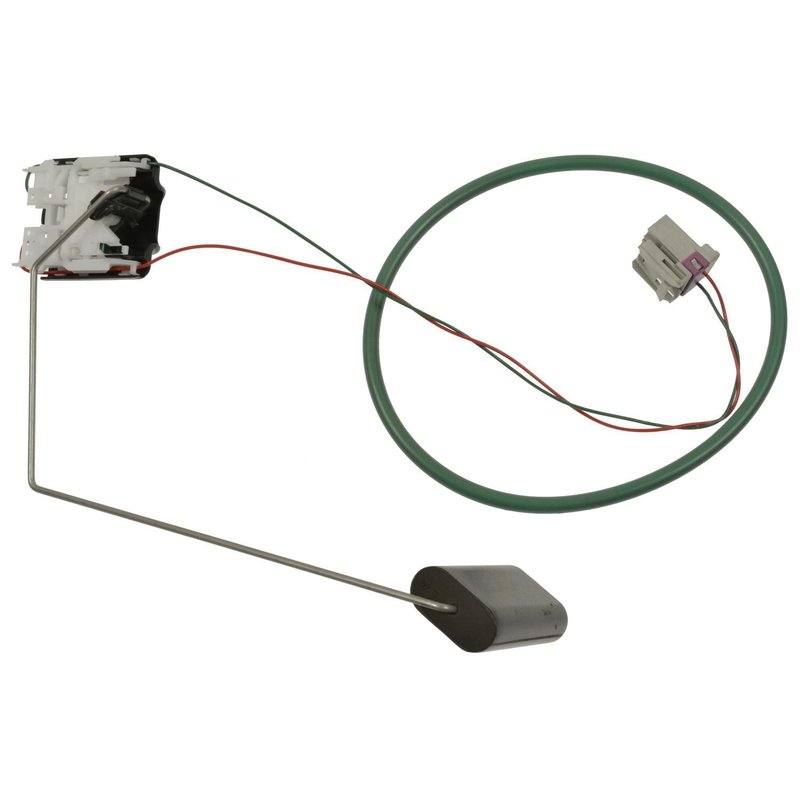

Standard Ignition LSF113 Fuel Level Sensor

Overview of Standard Ignition Fuel Level Sensor LSF113

The Standard Ignition Fuel Level Sensor LSF113 is designed for precise fuel measurement in Chevrolet Silverado 1500 and GMC Sierra 1500 models. This sensor features a male connector and a plug-in type connection, ensuring reliable integration with your vehicle's fuel system.

• Connector Gender: Male
• Connector Quantity: 1
• Connector Type: Plug in
• Terminal Gender: Female
• Terminal Quantity: 2

Detailed Product Description

The LSF113 fuel level sensor from Standard Ignition is engineered to provide accurate fuel level readings for Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It includes a single male connector designed for a plug-in connection, which simplifies installation and ensures a secure electrical interface. The sensor terminals are female with two contacts, supporting stable signal transmission to the vehicle’s fuel gauge system. This part is manufactured to meet OEM specifications, maintaining compatibility and performance within the air and fuel delivery sensor category.

Compatible Vehicles and Applications

This fuel level sensor is compatible with the following vehicles:

• Chevrolet Silverado 1500
• GMC Sierra 1500

It is specifically designed to replace the factory fuel level sensor, restoring accurate fuel measurement and preventing issues related to incorrect fuel gauge readings.

Common Issues Addressed by Fuel Level Sensor LSF113

• Inaccurate fuel gauge readings
• Intermittent fuel level display
• Fuel gauge stuck on empty or full
• Electrical connection failures in fuel sensor circuit
• Fuel system warning lights triggered by sensor faults

Installation Notes and Tips

When installing the Standard Ignition LSF113 fuel level sensor, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shorts. The plug-in male connector should be securely attached to the vehicle’s wiring harness. Verify that the female terminals are properly seated to maintain a stable connection. It is recommended to inspect the fuel tank sender unit for any damage or corrosion before installation to ensure optimal sensor performance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The LSF113 fuel level sensor undergoes rigorous quality control testing to ensure durability and reliable operation. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in material and workmanship under normal use.
