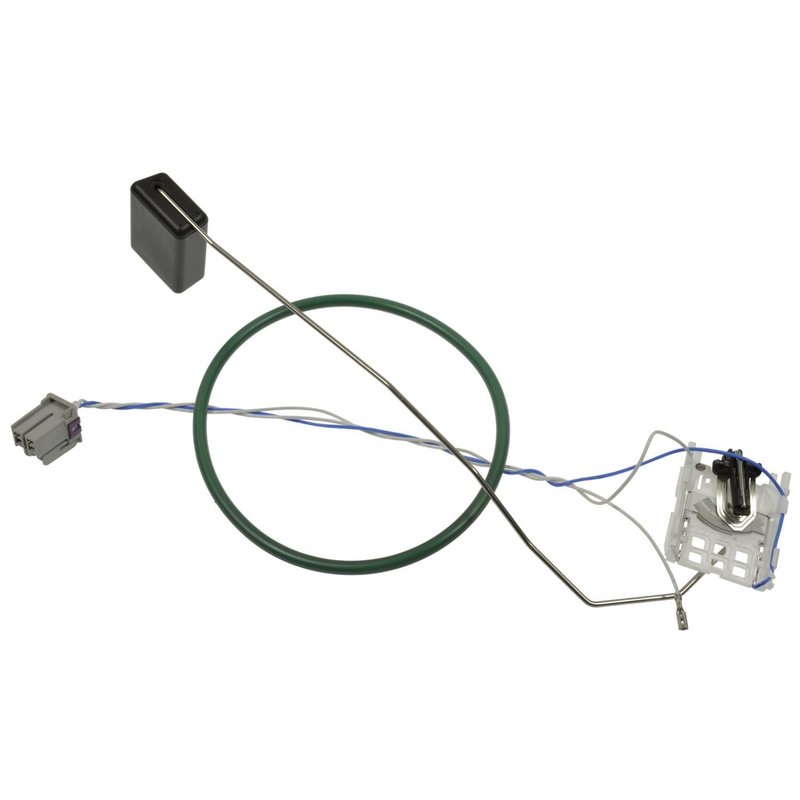

Standard Ignition LSF114 Fuel Level Sensor

Reliable Fuel Level Sensor for Chevrolet and GMC Trucks

The Standard Ignition LSF114 fuel level sensor is designed to provide accurate fuel measurement for Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD models. This sensor ensures precise fuel readings to help maintain optimal vehicle performance.

• Connector Gender: Female for secure connection
• Single Plug-in Connector Type for easy installation
• Two Female Blade Terminals for reliable electrical contact
• Includes sensor contents for direct replacement
• Compatible with Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD

Technical Details and Compatibility

The LSF114 fuel level sensor from Standard Ignition features a female connector gender with one plug-in connector, simplifying the wiring process. It includes two female blade terminals that provide a stable and corrosion-resistant connection. This sensor is specifically engineered for use in heavy-duty trucks such as the Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD, ensuring proper fitment and function. The part number LSF114 corresponds to this exact sensor model, making it easy to identify for replacement needs.

Common Applications and Problem Resolution

This fuel level sensor is used to monitor the fuel tank level and send accurate data to the vehicle’s fuel gauge system. It addresses several issues including:

• Inaccurate fuel gauge readings
• Intermittent fuel level display problems
• Sensor electrical connection failures
• Fuel gauge stuck at full or empty
• Replacement of faulty or worn sensors in Silverado 3500 HD and Sierra 3500 HD

Installation Notes and Tips

When installing the Standard Ignition LSF114 sensor, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the connector gender and terminal types match the existing wiring harness. The plug-in connector and blade terminals allow for straightforward replacement without the need for additional adapters. Properly secure the sensor to avoid fuel leaks and ensure accurate readings.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications. The LSF114 fuel level sensor undergoes rigorous testing to ensure durability and reliable performance in Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD trucks. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
