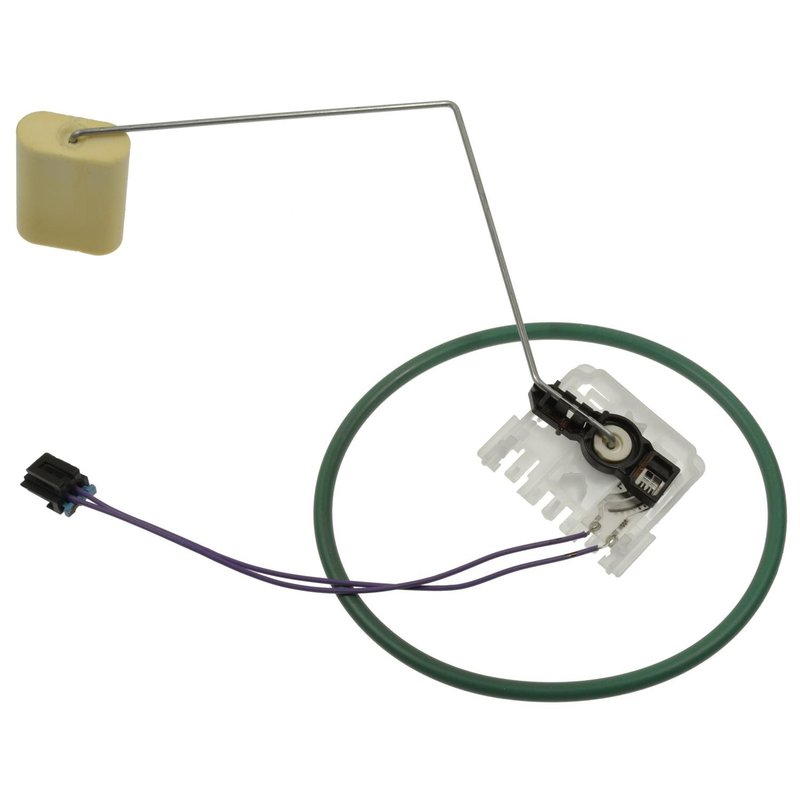

Standard Ignition LSF116 Fuel Level Sensor

Reliable Fuel Level Sensor for Chevrolet and GMC Trucks

The Standard Ignition LSF116 fuel level sensor is designed to provide accurate fuel measurement for select Chevrolet and GMC trucks. Engineered with precise connector and terminal specifications, this sensor ensures seamless integration and reliable performance in your vehicle's fuel system.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Type: Plug in
• Terminal Gender: Female
• Terminal Quantity: 2
• Terminal Type: Blade plug
• Includes sensor component only

Detailed Fuel Level Sensor Description

The Standard Ignition LSF116 is a fuel level sensor specifically designed for compatibility with Chevrolet and GMC trucks, including models such as the Sierra 1500, Sierra 2500 HD, Silverado 1500 HD, and Silverado 3500 HD. This sensor features a female plug-in connector with a single connection point and two female blade plug terminals, ensuring a secure and stable electrical connection. The sensor is built to accurately monitor fuel levels and communicate this data to the vehicle’s fuel gauge system, helping maintain optimal fuel management and vehicle operation.

Common Applications and Problem Resolution

• Corrects inaccurate or fluctuating fuel gauge readings
• Resolves fuel level sensor failure or intermittent sensor faults
• Prevents unexpected fuel shortages by providing reliable fuel level data
• Eliminates dashboard warning lights related to fuel sensor issues
• Restores proper communication between fuel tank and gauge system

Installation Notes and Tips

When installing the Standard Ignition LSF116 fuel level sensor, ensure the vehicle is parked on a level surface and the ignition is off. Disconnect the battery before removing the old sensor to avoid electrical shorts. Carefully unplug the female connector and blade terminals, then connect the new sensor matching the connector gender and terminal type. Verify secure connections to prevent signal loss. After installation, test the fuel gauge for accurate readings before completing the process.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and durability. The LSF116 fuel level sensor undergoes rigorous quality control testing to maintain consistent standards. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
