Standard Ignition LSF136 Fuel Level SensorOE Quality 60-Day Returns
Part #: LSF136

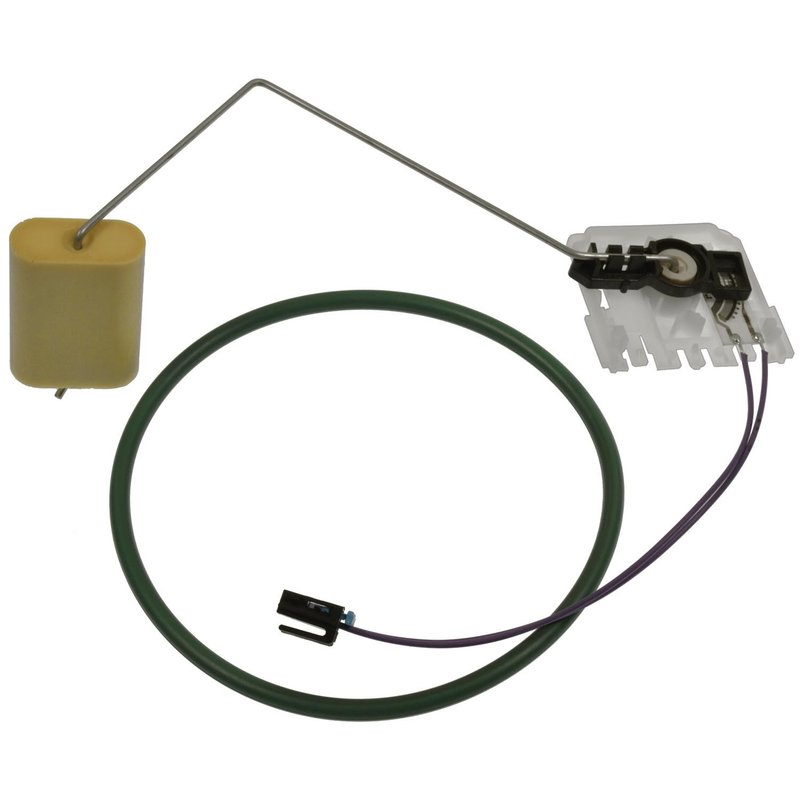

Standard Ignition LSF136 Fuel Level Sensor

53 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$296.92Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet and GMC, Express 1500, Express 2500, Express 3500, Savana 1500, Savana 2500, and Savana 3500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Fuel Level Sensor options

Reliable Fuel Level Sensor for Chevrolet and GMC Vans

The Standard Ignition LSF136 fuel level sensor is designed to provide accurate fuel measurement for Chevrolet Express and GMC Savana vans. Engineered with precise connector and terminal specifications, this sensor ensures seamless integration and reliable performance in your vehicle's fuel system.

  • Connector Gender: Male
  • Connector Quantity: 1
  • Connector Type: Plug
  • Terminal Gender: Female
  • Terminal Quantity: 2
  • Terminal Type: Blade

Detailed Fuel Level Sensor Description

This fuel level sensor from Standard Ignition features a male plug connector with a single connection point, designed to fit securely with the vehicle's wiring harness. The sensor terminals are female blade types, with two terminals to ensure stable electrical contact. These specifications make the LSF136 compatible with the fuel systems of Chevrolet Express 1500, 2500, 3500 and GMC Savana 1500, 2500, 3500 models. The sensor accurately monitors fuel levels, providing essential data to the vehicle’s fuel gauge and onboard computer.

Compatible Vehicles and Applications

  • Chevrolet Express 1500, 2500, 3500
  • GMC Savana 1500, 2500, 3500
  • Used to monitor fuel level for accurate gauge readings
  • Helps prevent fuel gauge malfunctions and inaccurate fuel readings
  • Addresses issues related to fuel sender unit failure

Installation Notes and Tips

When installing the Standard Ignition LSF136 fuel level sensor, ensure the male plug connector aligns properly with the vehicle’s wiring harness. Verify that the two female blade terminals are securely connected to avoid intermittent signals. It is recommended to disconnect the battery before installation to prevent electrical shorts. Proper installation will maintain accurate fuel level readings and prevent sensor-related errors.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The LSF136 fuel level sensor undergoes rigorous quality control testing. Please refer to Standard Ignition’s warranty policy for specific coverage details.

BrandStandard Ignition
Part NumberLSF136
Connector GenderMale
Connector Quantity1
Connector TypePlug
Terminal GenderFemale
Terminal Quantity2
Terminal TypeBlade

This part fits 53 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2009ChevroletExpress 15005.3LV8N/A
2009ChevroletExpress 15004.3LV6N/A
2009ChevroletExpress 25006.6LV8N/A
2009ChevroletExpress 25006.0LV8N/A
2009ChevroletExpress 25004.8LV8N/A
2009ChevroletExpress 35006.6LV8N/A
2009ChevroletExpress 35006.0LV8N/A
2009ChevroletExpress 35004.8LV8N/A
2009GMCSavana 15004.3LV6N/A
2009GMCSavana 25006.6LV8N/A
2009GMCSavana 25006.0LV8N/A
2009GMCSavana 25004.8LV8N/A
2009GMCSavana 35006.6LV8N/A
2009GMCSavana 35006.0LV8N/A
2009GMCSavana 35004.8LV8N/A
2008ChevroletExpress 15004.3LV6N/A
2008ChevroletExpress 15005.3LV8N/A
2008ChevroletExpress 25006.6LV8N/A
2008ChevroletExpress 25006.0LV8N/A
2008ChevroletExpress 25004.8LV8N/A
2008ChevroletExpress 35006.6LV8N/A
2008ChevroletExpress 35006.0LV8N/A
2008ChevroletExpress 35005.3LV8N/A
2008ChevroletExpress 35004.8LV8N/A
2008GMCSavana 15004.3LV6N/A
2008GMCSavana 25006.6LV8N/A
2008GMCSavana 25006.0LV8N/A
2008GMCSavana 25004.8LV8N/A
2008GMCSavana 35006.6LV8N/A
2008GMCSavana 35006.0LV8N/A
2008GMCSavana 35004.8LV8N/A
2007ChevroletExpress 15004.3LV6N/A
2007ChevroletExpress 15005.3LV8N/A
2007ChevroletExpress 25006.6LV8N/A
2007ChevroletExpress 25006.0LV8N/A
2007ChevroletExpress 25004.8LV8N/A
2007ChevroletExpress 35006.6LV8N/A
2007ChevroletExpress 35006.0LV8N/A
2007ChevroletExpress 35005.3LV8N/A
2007ChevroletExpress 35004.8LV8N/A
2007GMCSavana 15004.3LV6N/A
2007GMCSavana 25006.6LV8N/A
2007GMCSavana 25006.0LV8N/A
2007GMCSavana 25004.8LV8N/A
2007GMCSavana 35006.6LV8N/A
2007GMCSavana 35006.0LV8N/A
2007GMCSavana 35004.8LV8N/A
2006ChevroletExpress 15004.3LV6N/A
2006ChevroletExpress 15005.3LV8N/A
2006ChevroletExpress 25004.3LV6N/A
2006ChevroletExpress 25006.6LV8N/A
2006ChevroletExpress 25006.0LV8N/A
2006ChevroletExpress 25004.8LV8N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

191335135S1428174993FLSB10071FLV206LSS306SK1178

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
