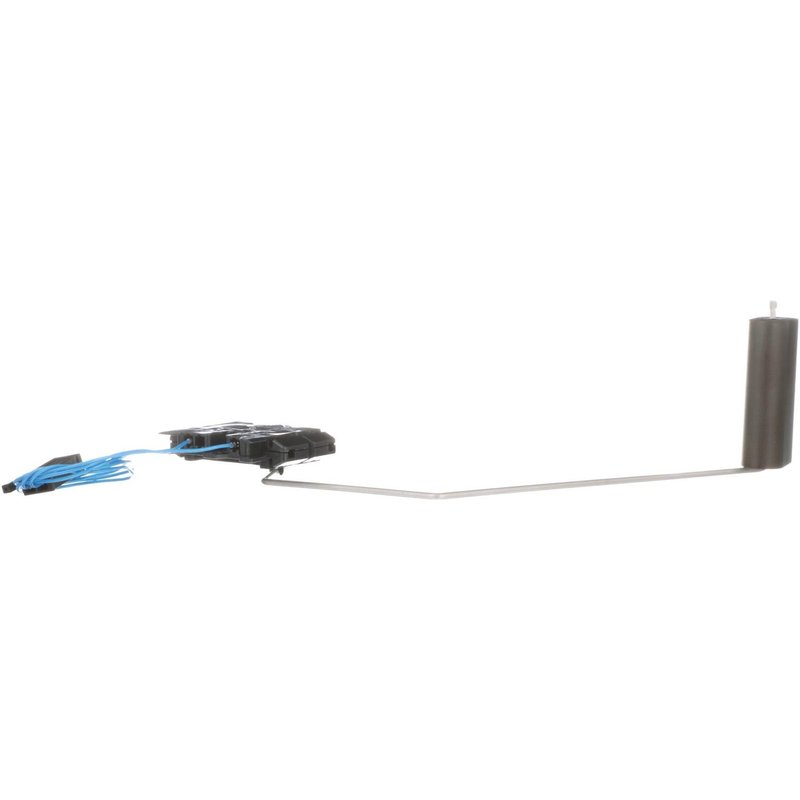

Standard Ignition LSF147 Fuel Level Sensor

Reliable Fuel Level Sensor for Chevrolet and GMC Trucks

The Standard Ignition LSF147 fuel level sensor is designed as a direct replacement for select Chevrolet Silverado 1500 and GMC Sierra 1500 models. Engineered to provide accurate fuel level readings, this sensor ensures your vehicle's fuel gauge operates reliably without interruption.

• Direct replacement fuel level sensor for Chevrolet Silverado 1500 and GMC Sierra 1500
• Female connector with one connection point for secure wiring
• Finger style sender contact design for consistent signal transmission
• Two female blade terminals for reliable electrical connections
• Does not include float or mounting brackets, designed for straightforward sensor replacement

Product Features and Specifications

The Standard Ignition LSF147 features a female connector with a single connection point, simplifying installation and ensuring compatibility with factory wiring harnesses. Its finger style sender contact design provides stable and accurate fuel level readings by maintaining consistent contact with the fuel sender arm. The sensor includes two female blade terminals, which are standard in many Chevrolet and GMC fuel systems, allowing for secure and corrosion-resistant electrical connections. This part is a direct replacement, engineered to match OEM specifications for the Silverado 1500 and Sierra 1500 models, ensuring proper fit and function without modification.

Common Applications and Problem Resolution

This fuel level sensor is used primarily to monitor the fuel level in the tank and relay this information to the vehicle’s fuel gauge. It addresses several common issues, including:

• Inaccurate or fluctuating fuel gauge readings on Chevrolet Silverado 1500 and GMC Sierra 1500
• Fuel gauge stuck on empty or full due to faulty sensor contacts
• Intermittent fuel level signal loss caused by worn or damaged sensor terminals
• Replacement of sensors damaged by corrosion or wear over time

Installation Notes and Tips

When installing the Standard Ignition LSF147 fuel level sensor, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify that the female connector and blade terminals match the vehicle’s wiring harness before installation. Since this sensor does not include a float or mounting brackets, reuse the existing components from the original sensor. Handle the finger style sender contacts carefully to avoid bending or damage during installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The LSF147 fuel level sensor undergoes rigorous quality control to ensure reliable performance in Chevrolet Silverado 1500 and GMC Sierra 1500 vehicles. Please refer to Standard Ignition’s warranty policy for specific coverage details.
